10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage

10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage
10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage 10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage

Large Image :  10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-INS901-5V
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Splitter Standard Export Package
Delivery Time: 7 Working days
Payment Terms: Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability: 20000pcs/per month
Detailed Product Description
Keywords: Ethernet Splitter PoE PoE Standard: 802.3af/at/bt Power Over Ethernet
Power Output: 20W 5VDC Power Consumption: 25W Max
Casing: Aluminum Case Fanless Mounting Options: DIN-Rail / Wall-mount
Highlight:

Aluminum Case Gigabit PoE Splitter

,

5VDC Output Gigabit PoE Splitter

,

fanless PoE Splitter 5V

Industrial 10 100 1000Mbps Gigabit 802.3bt PoE Splitter Output Voltage 5VDC
5V Power Over Ethernet Splitter Advantages

► One 5VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at/bt PoE++

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt 4-pair Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Interface:

“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T

“Data” Out Port: 1 x RJ-45 10/100/1000Base-T

DC Out Plug Connector: 1 removable 2-Pin terminal block

Power over Ethernet

PoE Standard:

IEEE 802.3af/at/bt Power over Ethernet

Number of devices that can be powered:

1 (5VDC)

(Vary on device’s power requirement; cannot be over 36 watts.)

LED Indicators:

PWR:

5VDC Power OUT

POE:

PoE Power IN

Weight:

0.25Kg

Overview

LNK-INS901-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.

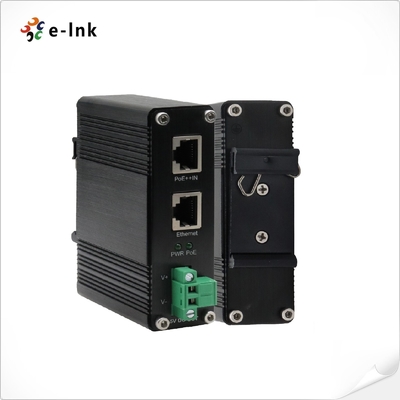

10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage 0

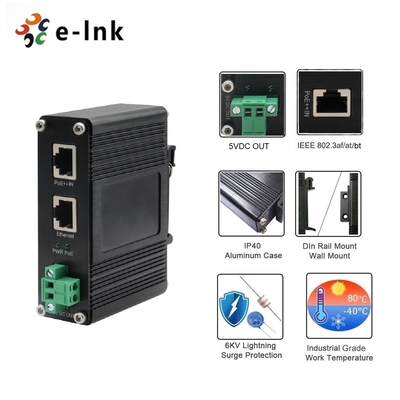

10 100 1000Mbps Gigabit PoE Splitter 802.3 Af / At / Bt 5VDC Output Voltage 1

Ordering Information

Model

Description

LNK-INS901-5V

Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
