E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Ethernet Splitter PoE | PoE Standard: | 802.3af/at/bt Power Over Ethernet |
|---|---|---|---|
| Power Output: | 70W 36VDC | Devices' Power: | Less Than 36 Watts |
| Casing: | IP40 Aluminum Case | Dimensions: | 95 X 70 X 30 Mm (WxDxH) |
| High Light: | 802.3bt poe ethernet splitter,Din Rail Ethernet Power Splitter,36VDC Output Ethernet Power Splitter |
||
Din Rail Industrial 10 100 1000Mbps 802.3bt 95W PoE Ethernet Power Splitter 36VDC
36V Power Over Ethernet Splitter Advantages
► Distance up to 100 meters

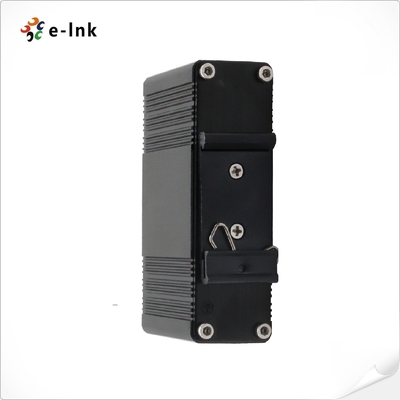

► Support DIN-Rail & Wall-mount installation
► IP40 rugged metal housing and fanless
► Devices' power cannot be over 36 watts
Technical Indexes
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (36VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
LED Indicators: |
|
|
PWR: |
36VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Overview

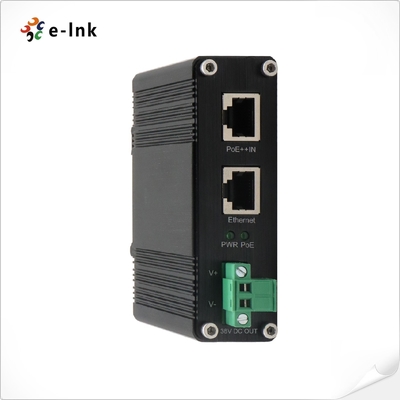

LNK-INS901-36V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
Ordering Information
|
Model |
Description |
|
LNK-INS901-36V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 70W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
