10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case

China E-link China Technology Co., Ltd. certification
China E-link China Technology Co., Ltd. certification
The engineer solved our problem very quick, and the service is very good. Very professional factory.

—— Robert Lichtenstein-Canada

I had no concern, was buying and testing, so equipment is ok. So equipment and logistic is ok, we keep ordering and making business.

—— Anek – Thailand

I'm very satisfied with the media converter received, the OEM order quality is good.

—— Faize Akçaba-Turkey

E-link Sales are very professional, they give me not only product, but also solution. All E-link Fiber Media Converters and PoE Switches works well.

—— Patrícia Maia-Brazil

I'm Online Chat Now

10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case

10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case
10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case 10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case

Large Image :  10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-INS301-12V
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Splitter Standard Export Package
Delivery Time: 7 Working days
Payment Terms: Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability: 20000pcs/per month
Detailed Product Description
Keywords: Power Over Ethernet Devices Power Output: 20W 12VDC
Distance: Up To 100 Meters Devices' Power: 20 Watts Max
Operating Temperature: -40 ~ 80°C Mounting Options: DIN-Rail Default; Wall-mount
Highlight:

FCC power over ethernet splitter 12v

,

Gigabit power over ethernet splitter 12v

,

Aluminum Case gigabit poe splitter 12v

Power Over Ethernet Splitter Industrial 10 100 1000Mbps 30W 802.3at 12VDC Output
PoE Splitter 12V Advantages
► “PoE (Power + Data)” Input Port 1 x RJ-45 10/100/1000Base-T
► “Data” Out Port 1 x RJ-45 10/100/1000Base-T
► DC Out Plug Connector: 1 removable 2-Pin terminal block
► Vary on device’s power requirement; cannot be over 20 watts

Technical Indexes

Processing Type:

Forward

Half-duplex, Full-duplex

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Power over Ethernet

PoE Standard:

IEEE 802.3af/at Power over Ethernet

Number of devices that can be powered:

1 (DC12V)
(Vary on device’s power requirement; cannot be over 20 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

20W 12VDC (Terminal Block)

Power Consumption:

25W Max.

LED Indicators:

PWR:

12VDC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Overview

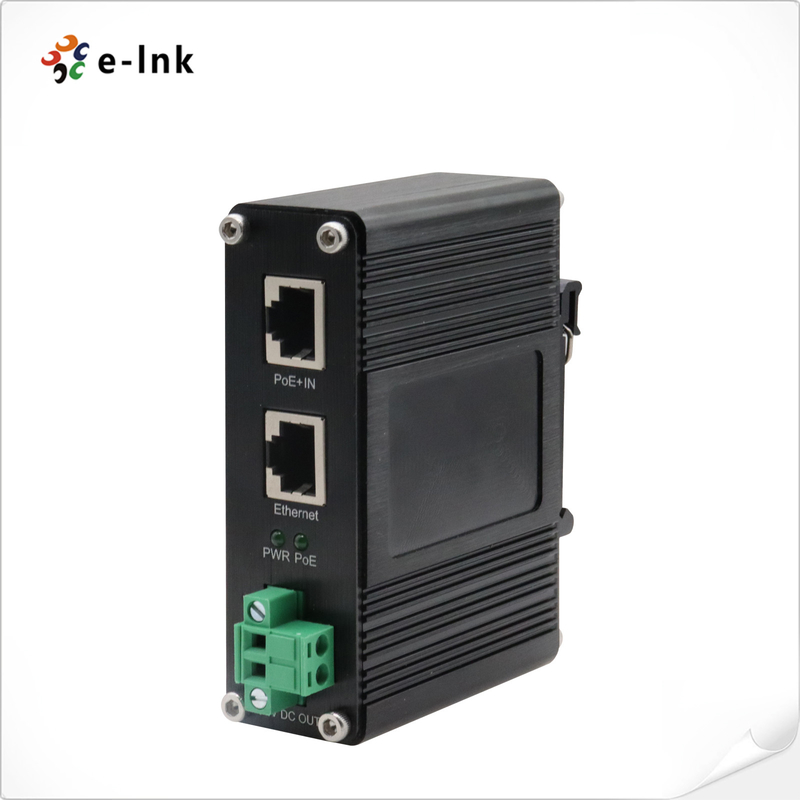

LNK-INS301-12V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices and acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE (Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors.
10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case 0
10 100 1000Mbps Power Over Ethernet Splitter 12V 20W 802.3at Aluminum Case 1

Ordering Information

Model

Description

LNK-INS301-19V

Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 12VDC, maximum output of 20W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

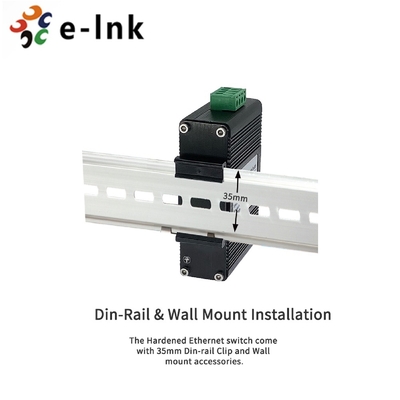

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
