Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial Gigabit PoE Splitter | Power Output: | 20W 19VDC |
|---|---|---|---|
| PoE Standard: | IEEE 802.3af/at | Devices' Power: | 20 Watts Max |
| Dimensions: | 95 X 70 X 30 Mm (WxDxH) | Mounting Options: | DIN-Rail Default; Wall-mount |
| High Light: | Power Over Ethernet Splitter 20W,19VDC Output Power Over Ethernet Splitter,Industrial Gigabit PoE Splitter 19V |
||

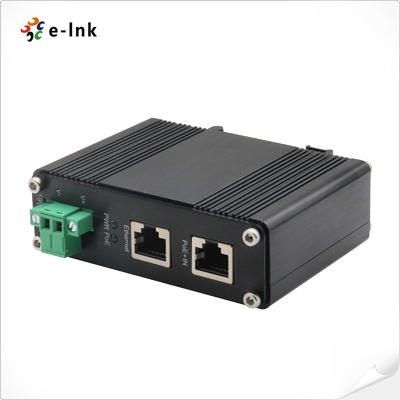

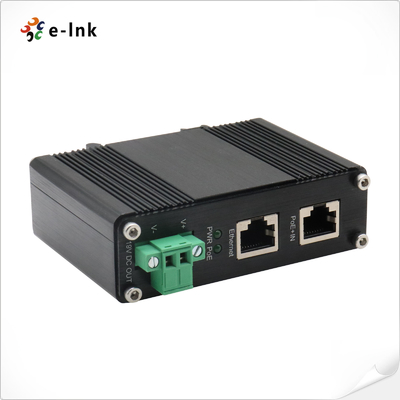

PoE Splitter Industrial Gigabit 802.3at Power Over Ethernet 20W 19VDC Output
Power Over Ethernet Splitter Advantages
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 19VDC Output (2-pin Terminal Block)
► Support 10/100/1000Base-T
► Distance up to 100 meters
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Electrical and Mechanical |
|
|
Power Output: |
20W 19VDC (Terminal Block) |
|
Power Consumption: |
25W Max. |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Overview
The data transmission, up to Gigabit speeds, with power output voltages of 19VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS301-19V, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.
Ordering Information
|
Model |
Description |
|
LNK-INS301-19V |
Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 20W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
