Product Details:
Payment & Shipping Terms:
|
| Keywords: | Gigabit PoE Splitter | Power Output: | 20W 24VDC |
|---|---|---|---|
| PoE Standard: | 802.3af/at Power Over Ethernet | Weight: | 0.25Kg |
| Mounting Options: | DIN-Rail / Wall-mount | Casing: | IP40 Aluminum Case |
| High Light: | Fanless PoE Splitter 24V,Gigabit Ethernet PoE Splitter 24V,24VDC Gigabit PoE Splitter |
||
PoE Splitter Industrial Gigabit 802.3at Power Over Ethernet 24VDC Output
Power Over Ethernet Splitter Advantages
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Technical Indexes
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at Power over Ethernet |
|
Number of devices that can be powered: |
1 (24VDC) (Vary on device’s power requirement; cannot be over 20 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
20W 24VDC (Terminal Block) |
|
Power Consumption: |
25W Max. |
|
LED Indicators: |
|
|
PWR: |
24VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Overview
LNK-INS301-24V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
Ordering Information
|
Model |
Description |
|
LNK-INS301-24V |
Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 20W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |

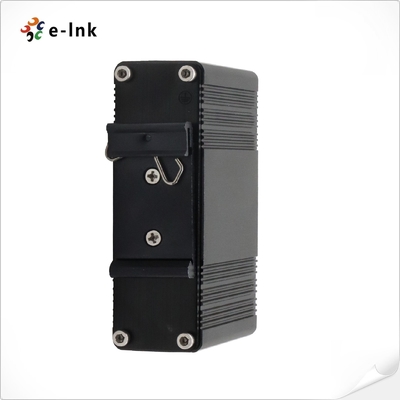

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
