E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Power Over Ethernet Splitter | Power Output: | 20W 36VDC |
|---|---|---|---|
| PoE Standard: | 802.3af/at Power Over Ethernet | Distance: | 100m Max |
| Operating Temperature: | -40°C To 80°C | Casing: | IP40 Aluminum Case |
| High Light: | 20W Power Over Ethernet Splitter,36VDC Output Power Over Ethernet Splitter,fanless Industrial PoE Splitter |
||

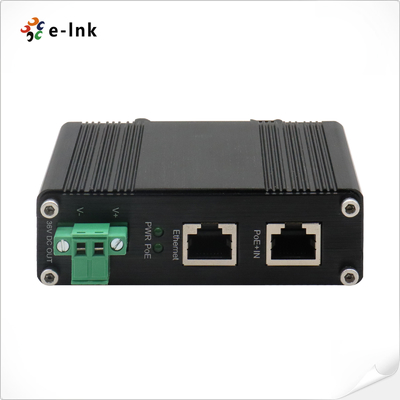

PoE Splitter Industrial 10 100 1000Mbps 802.3at Power Over Ethernet 36VDC Output
Power Over Ethernet Splitter Advantages
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 36VDC Output (2-pin Terminal Block)
► IP40 rugged metal housing and fanless
► Extensive LED indicators for PoE diagnostics
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at Power over Ethernet |
|
Number of devices that can be powered: |
1 (36VDC) (Vary on device’s power requirement; cannot be over 20 watts.) |
Overview
The LNK-INS301-36V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE (Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 36VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS301-36V, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.
Dimensions (Unit: mm)
Ordering Information
|
Model |
Description |
|
LNK-INS301-36V |
Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 20W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |

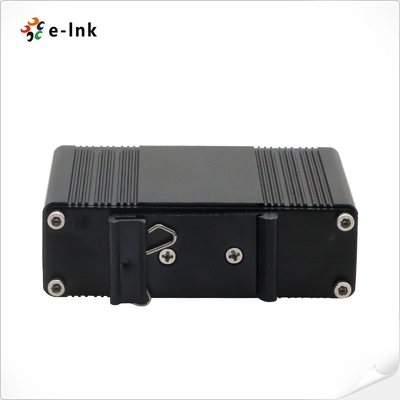

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
