E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Forward Filter Rate: | 1,488,000pps (1000Mbps) | Cabling: | 1000Base-T: Cat5 Or Above |
|---|---|---|---|
| Maximum Distance: | Cat5 UTP Up To 100m | Connector: | 2x RJ45 |
| Output Power: | 10W/5VDC (Terminal Block) | Power Consumption: | 12W Max |
| Dimensions (WxDxH): | 95 X 70 X 30 Mm | Mounting Options: | DIN-Rail / Wall-mount |
| High Light: | poe power splitter,industrial poe splitter |
||
Overview
Features
Warranty
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Output Power: | 20W/12VDC (Terminal Block) |
| Power Consumption: | 25W Max. |
| LED Indicators: | |
| PoE In: | PoE PSE Power In |
| 5V: | DC 5V Output |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Order Information
| Model | Description |

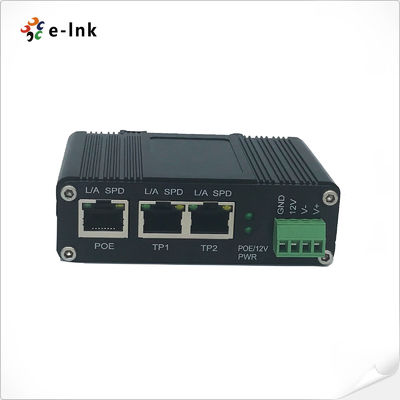

| LNK-SPL01 | Industrial PoE splitter with 2-port Switch function: 1-port PoE+ In + 2-port Ethernet Data Out (switch function), maximum output of 20 W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 20W 12VDC output with 2-pin open wire terminal block |
