Ultra High-Power Industrial 10G 802.3bt PoE Media Converter RJ45 to SFP+ 95W

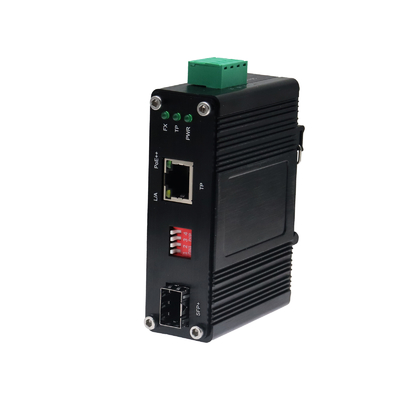

Large Image : Ultra High-Power Industrial 10G 802.3bt PoE Media Converter RJ45 to SFP+ 95W

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC10GP30-SFP+
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$115-$135
Packaging Details:	PoE Fiber Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

PoE Output:	Up To 95W, IEEE 802.3af/at/bt Compliant	Network Speeds:	100M/1G/2.5G/5G/10G
Switching Capacity:	20Gbps	Operating Temperature:	-40°C To 80°C
Power Input:	48~57VDC, Redundant Terminal Block	Dimensions:	95 × 70 × 30 Mm

Ultra High-Power Industrial 10G 802.3bt PoE Media Converter RJ45 to SFP+ 95W

Overview

The LNK-IMC10GP95-SFP+ is an ultra high-power industrial-grade 10G PoE media

converter, delivering up to 95W IEEE 802.3bt PoE for the most power-demanding devices.

Featuring a multi-speed RJ45 port (100M/1G/2.5G/5G/10G) and a 10G SFP+ fiber slot, it

ensures seamless copper-to-fiber connectivity at wire-speed performance. With rugged IP40

aluminum housing, -40°C to 80°C wide temperature tolerance, and redundant 48~57VDC

power input, it is the ideal choice for powering PTZ cameras, wireless base stations, and

industrial automation systems where maximum PoE output is essential.

Features

Ultra High-Power PoE — Up to 95W IEEE 802.3bt for power-intensive devices

Multi-Gigabit Support — 100M/1G/2.5G/5G/10G RJ45 to 10G SFP+ conversion

Industrial Durability — IP40 aluminum housing, -40°C to 80°C wide temperature range

Reliable Power — Redundant 48~57VDC terminal block input for uninterrupted operation

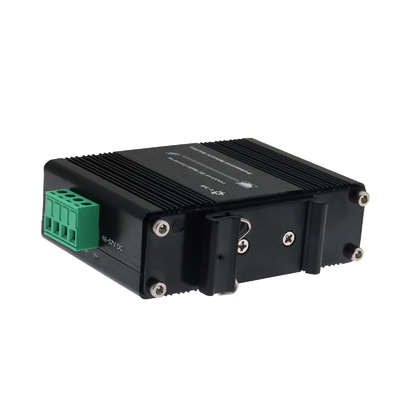

Flexible Mounting — DIN-Rail and wall-mount brackets included

Wire-Speed Performance — 20Gbps switching fabric with jumbo frame support

Technical Indexes

Ethernet
PoE Standard	IEEE802.3af/at/bt
Forward & Filtering Rate:	100Mbps
	1000Mbps
	2.5Gbps
	5Gbps
	10Gbps
Network Cables:	10G/5G/2.5G/1G/100M BASE-T: 　10G – Cat 6A/7 　5G – Cat 6/6A/7 　1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) 　EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 　9/125μm single-mode fiber optic cable, up to 80km
Processing Type:	Store-and-Forward
Fabric:	20Gbps
Jumbo Frame:	16K
Address Table:	9K entries, automatic source address learning and aging
Interface
Connector:	1 x RJ45
Optical Port:	1 x SFP+
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	35W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Reserved	ON - Reserved	OFF - Reserved
	SW 2	Reserved	ON - Reserved	OFF - Reserved
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
Note: DIP Switch’s function can be customized based on client’s requirements.
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail/Wall-mount
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC10GP95-SFP+	Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter
SFP Options	► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).
SFP Options	► SFP+ module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately.
