Mini Industrial SFP to 2xGigabit PoE++ Media Converter 60W -40~75°C

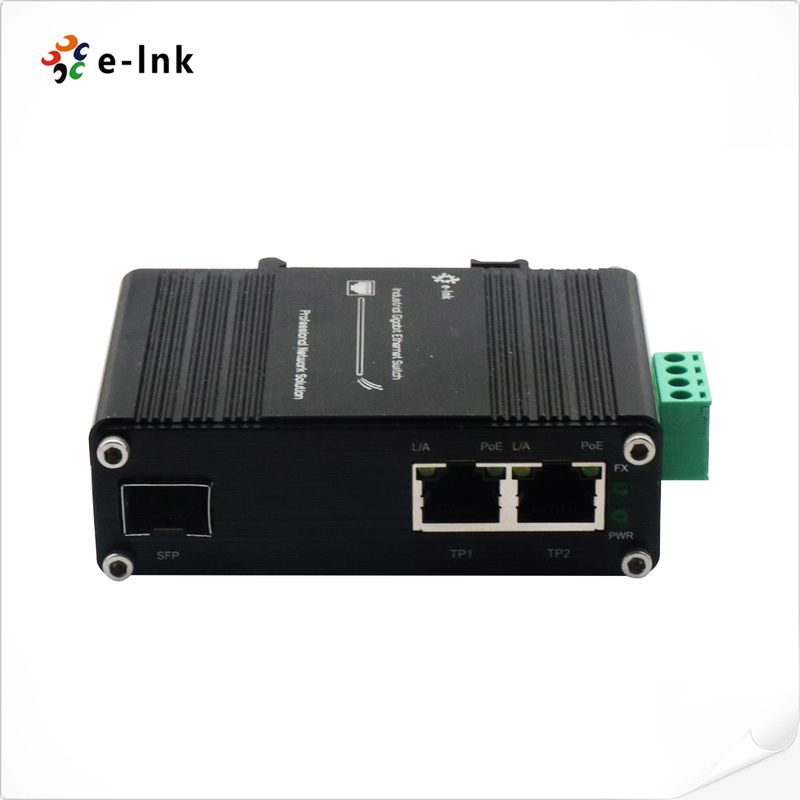

Large Image : Mini Industrial SFP to 2xGigabit PoE++ Media Converter 60W -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC1200GP60-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$79-$95
Packaging Details:	PoE Fiber Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Data Rate:	10/100/1000Mbps	Fiber Port:	1 X SFP 1000Base-X Or 100Base-FX (auto-detection)
PoE Output:	Up To 60W Over 4-pairs (IEEE802.3af/at Compliant)	Input Power:	48~57VDC, 4-pin Terminal Block
Power Consumption:	Max 125W	Operating Temperature:	-40°C To 75°C (-40°F To 167°F)

Mini Industrial SFP to 2xGigabit PoE++ Media Converter 60W -40~75°C

Overview

The LNK-IMC1200GP60-SFP is a rugged industrial media converter with 1 SFP port

(100/1000Base-X auto-detection) and 2 x 10/100/1000Base-T Ethernet ports delivering up

to 60W PoE++ per port. Designed for harsh environments, it supports full/half-duplex, jumbo

frames, and Energy Efficient Ethernet (IEEE 802.3az). Its DIN-rail/wall-mountable aluminum

housing ensures reliable operation from -40°C to 75°C, allowing flexible deployment with

single-mode or multi-mode fiber SFP modules. Ideal for powering high-demand industrial

devices such as cameras, APs, and terminals.

Features

1 x SFP port (100/1000Base-X, auto-detection) to 2 x 10/100/1000BASE-T

Supports IEEE802.3af (15.4W), IEEE802.3at (30W), and up to 60W PoE++

Full/half-duplex with auto-negotiation and auto MDI/MDI-X

Jumbo frame support up to 9K Bytes

Energy Efficient Ethernet (IEEE 802.3az)

Hardened aluminum housing for industrial-grade durability

Wide operating temperature: -40°C to 75°C

DIN-rail or wall-mount installation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Power Consumption:	125W Max.
LED Indicators:
PWR:	Power Status
PoE:	PD Plug Status
RJ45:	LINK/Activity
SFP:	LINK
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1200GP60-SFP	Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
