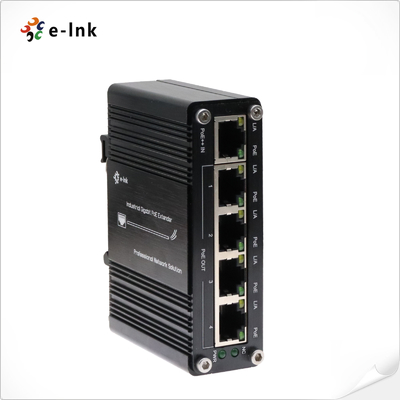

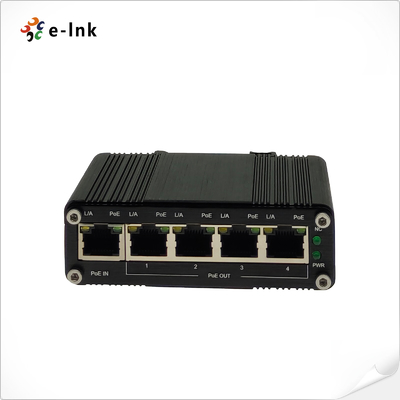

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
Industrial Gigabit PoE Extender Overview
The LNK-IPE104-90 is an industrial-grade, 1-port, 802.3bt PoE++ to 4-port, 802.3af/at Gigabit PoE extender,
which is ideal for point-to-multipoint PoE deployments. Supporting a maximum input power of 95W (PoE++),
it delivers a total PoE budget of 75W across four output ports, extending Gigabit Ethernet data
and PoE power up to 200 metres (double the standard limit of 100 metres) over Cat.5/5e/6 cables.
The extender can power up to four PDs simultaneously, eliminating the need for additional cabling
or external power adapters and making it perfect for flexible, cost-effective network expansion.
Industrial Gigabit PoE Extender Features
-
8 × 10/100Base-TX + 2 × 100Base-FX ports
-
10/100 Mbps RJ45 ports support full/half-duplex, auto-negotiation, and Auto MDI/MDIX
-
Flexible fiber interface options: SFP, SC, FC, or ST
-
IEEE 802.3x flow control for reliable data transmission
-
IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption
-
Redundant power input design for enhanced reliability
-
Supports both wall-mount and DIN-rail installation
-
Wide operating temperature range: -40°C to 80°C (-40°F to 176°F) for industrial environments
Industrial Gigabit PoE Extender Technical Indexes
|
Ethernet Port
|
|
PoE Input Port
|
10/100/1000Base-TX RJ45,
IEEE 802.3bt PoE Input
Input Power 50~57V DC, Max 95W
|
|
PoE Output Port
|
1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output
Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m
|
|
Cascade connection
|
Support 3 grade
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
|
|
PoE Power Supply Type
|
Mid-span and End-span
|
|
PoE Pin Assignment
|
1/2(+), 3/6(-),4/5(+), 7/8(-)
|
|
Switch Property
|
|
Standards
|
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
|
|
Forwarding Modes
|
Store and Forward
|
|
Transmission Distance
|
100m
|
|
MAC Table
|
8K
|
|
Switching Capacity
|
10Gbps
|
|
Packet Forwarding Rate
|
14.88Mpps
|
|
Flow Control
|
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
|
|
Jumbo Frame
|
10K bytes
|
|
Environment
|
|
Surge Immunity
|
6KV, Standard: IEC6000-4-5
|
|
ESD Protection
|
6KV 1a Contact Discharge Level 3,
8KV 1b Air Discharge Level 3,
Standard: IEC61000-4-2
|
|
Protection Level
|
IP 40
|
|
Operating Temperature
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature
|
-40°C to 85°C (-40°F to 185°F)
|
|
Operating Humidity
|
0~95% (non-condensing)
|
|
Physical Parameter
|
|
Dimensions (WxDxH)
|
95 x 70 x 30 mm
|
|
Weight
|
0.25Kg
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
DIN-Rail / Wall-mount
|
|
Certifications
|
|
Certifications
|
CE, FCC, RoHS
|
Industrial Gigabit PoE Extender Ordering Information
|
Model
|
Description
|
|
LNK-IPE104-90
|
Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
