Industrial 10/100/1000Mbps 802.3bt PoE+ +Splitter Output Voltage 24VDC
Industrial Gigabit PoE Splitter Overview

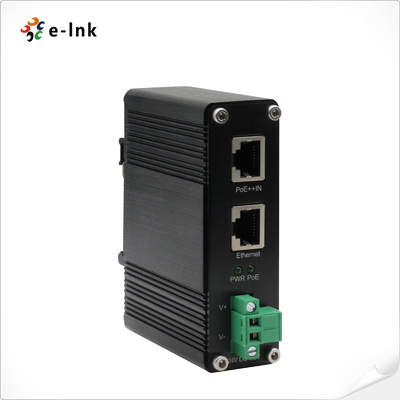

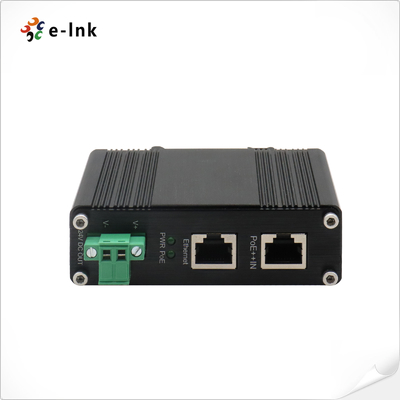

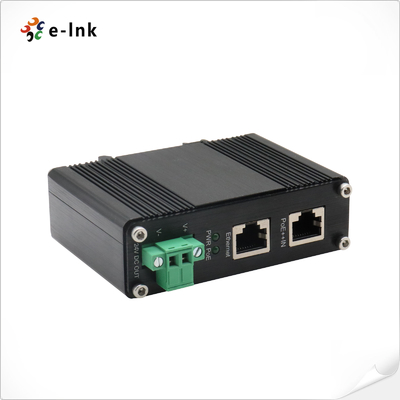

The LNK-INS901-24V Series is an industrial-grade Gigabit Power over Ethernet (PoE) splitter
that delivers both data (via RJ45) and 24V power (via screw terminals) to non-PoE devices.
This product is compatible with IEEE 802.3af/at/bt PoE switches, thus eliminating the need
for separate power wiring while maintaining full Gigabit speeds up to 100 metres.
This robust splitter is designed for tool-free, plug-and-play installation, ensuring seamless
integration with LNK-INJ-48-95W PoE injectors. It is ideally suited for use with IP cameras,
wireless access points, and industrial IoT devices in challenging environments.
Industrial Gigabit PoE Splitter Features
-
Separates power and data from a PoE input source
-
1× RJ45 PoE port (Data & Power In) and 1× RJ45 port (Data Out)
-
1× 24V DC output via 2-pin terminal block
-
Compliant with IEEE 802.3af/at/bt (PoE++) standards
-
Supports 10/100/1000Base-T Ethernet
-
Transmission distance up to 100 meters
-
Short-circuit protection for power output
-
IP40-rated rugged metal housing , fanless design for reliable operation
-
Supports DIN-rail and wall-mount installation
-
Equipped with LED indicators for PoE and diagnostics
-
Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)
Industrial Gigabit PoE Splitter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 10Base-T Ethernet
|
|
IEEE 802.3u 100Base-TX Fast Ethernet
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet
|
|
IEEE 802.3af Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,000pps (1000Mbps)
|
|
Cabling:
|
1000Base-T: Cat5 or above
|
|
Maximum Distance:
|
Cat5 UTP up to 100m
|
|
Interface:
|
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
|
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block
|
|
Power over Ethernet
|
|
PoE Standard:
|
IEEE 802.3af/at/bt Power over Ethernet
|
|
Number of devices that can be powered:
|
1 (24VDC)
(Vary on device’s power requirement; cannot be over 40 watts.)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Power Output:
|
40W 24VDC (Terminal Block)
|
|
Power Consumption:
|
45W Max.
|
|
LED Indicators:
|
|
PWR:
|
24VDC Power OUT
|
|
POE:
|
PoE Power IN
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500W
|
|
ESD: 4KV/8KV
|
Industrial Gigabit PoE Splitter Ordering Information
|
Model
|
Description
|
|
LNK-INS901-24V
|
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
|
|
Mounting Options
|

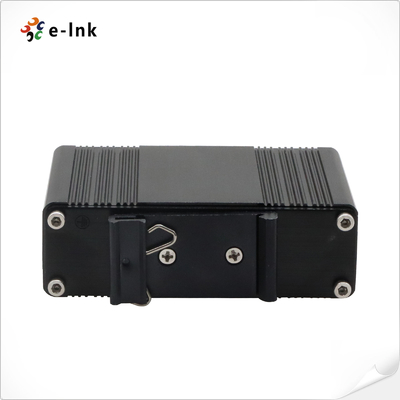

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
Industrial Gigabit PoE Splitter Dimension
Industrial Gigabit PoE Splitter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance
and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.3.Unauthorized alteration of the inherent settings or repair without the company's permission.4.Products beyond the scope of free maintenance.5.Damage caused by transportation, loading and unloading during repairs sent by customers.6.The product bar code or model on the product warranty card does not conform to the product itself.7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
