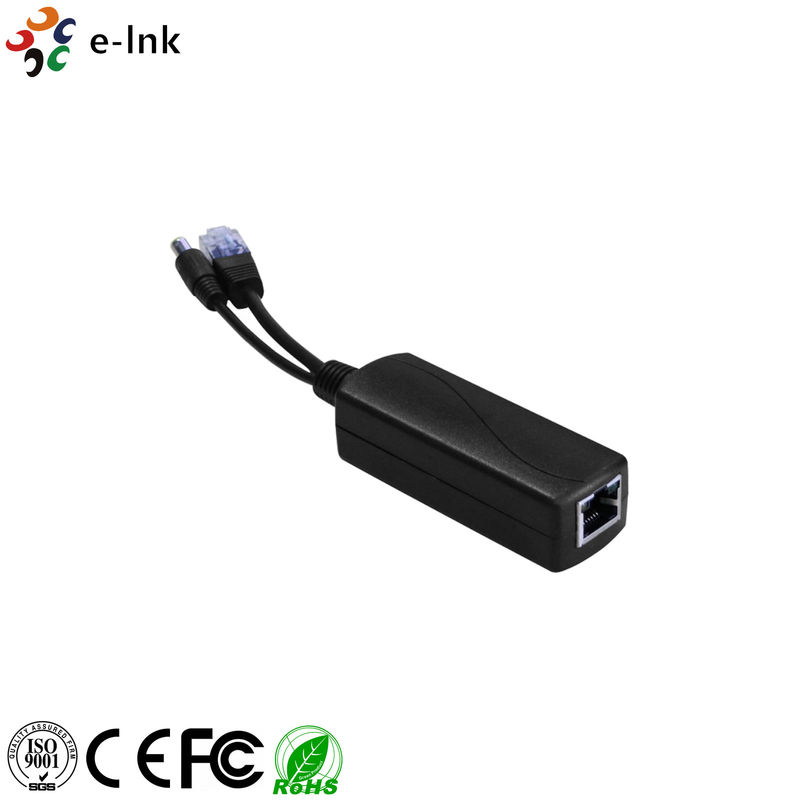

Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter

Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter
Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter

Large Image :  Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE ,FCC
Model Number: LNK-SP24W Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Standard Export Package
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000000pcs / month
Detailed Product Description
DC Out: 24V 1A Power: 25W
Distance: 10BASE-T: Cat 5 UTP(≤100m) 100BASE-TX: Cat 5 And Above UTP(≤100m) Port: 1 FE(10/100M) POE Input+1 Network+1 DC Output
Weight: 0.2kg Product Size: 200mm*22mm*23mm
Storage Temperature: -40°~85°C Working Temperature: -20°~55°C
High Light:

poe power splitter

,

industrial poe splitter

10 / 100M 24V 1A PoE Splitter





Model: LNK-SP24W Series



Overview



LNK-SP24W PoE splitter, develop used for Ethernet power supply application scenarios, device does not support POE input situation; support “IEEE 802.3af” and “IEEE 802.3at” POE power supply; DC output 24V 1A; The POE signal can be separated into network signal and electric power.


PoE splitter, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.





Features



· DC output 24V 1A

· 52V: MAX transmission 150M (With full copper low resistance network lines)

· Comply to IEEE802.3af/at

· Power Input:DC16~55V

· Plug&Play

· Built-in high performance chip and high specification circuit board

· Stable:AKros AS1138, with lightning protection

· RJ45 full shield port

· Full bridge design, non polarity input





Technical Indexes





Model LNK-SP24W
DC out 24V 1A
Power 25W
distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)

Port 1 FE(10/100M) POE input+1 Network+1 DC output
POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,

IEEE802.1af DTE Power via MDI

Network

protocol

IEEE 802.3i 10BASET;

IEEE 802.3u 100BASETX;

IEEE 802.3x Flow Control

Environmental

Working Temperature:-20°~55°C

Storage temperature:-40°~85°C

Working Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~90% RH non-condensing

Radiation CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size 200mm*22mm*23mm



Weight

0.2kg







Ordering Information





Model Description
LNK-SP24W PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A





Application







Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter 0





Dimension and size







Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter 1
