Compact Industrial 10G Copper-to-SFP+ Media Converter -40-80°C 12-48VDC

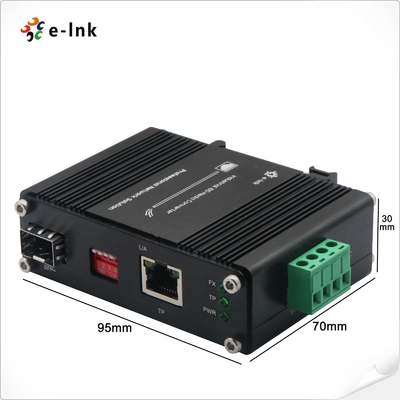

Large Image : Compact Industrial 10G Copper-to-SFP+ Media Converter -40-80°C 12-48VDC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC10G-SFP+
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$85-$105
Packaging Details:	Fiber Ethernet Media Converter Packaging Box
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Type:	Industrial Ethernet Media Converter (Non-PoE)	Copper Port:	1 × RJ45 (Auto MDI/MDI-X)
Fiber Port:	1 × 10G SFP+ Slot	Switching Capacity:	20Gbps
Housing:	IP40 Aluminum Case	Power Input:	12~48VDC, Redundant Terminal Block
Mounting Options:	DIN-Rail / Wall-mount	Dimensions:	95 × 70 × 30 Mm

Compact Industrial 10G Copper-to-SFP+ Media Converter -40-80°C 12-48VDC

Overview

The LNK-IMC10G-SFP+ is a compact, non-PoE industrial 10G Ethernet media converter

designed for reliable copper-to-fiber conversion in harsh environments. Supporting

multi-speed operation from 100Mbps to 10Gbps, it features one RJ45 port with auto

MDI/MDI-X and one 10G SFP+ slot, ensuring high-performance, wire-speed connectivity.

With ultra-low power consumption, 12~48VDC wide-range input, rugged IP40 aluminum

housing, and a wide operating temperature range of -40°C to 80°C, it is ideal for industrial

networks requiring high bandwidth without PoE functionality, such as backbone extensions,

data center links,

and long-distance fiber runs.

Features

Multi-Speed Support — 100M/1G/2.5G/5G/10G RJ45 to 10G SFP+

Energy Efficient — IEEE 802.3az compliant, only 5W max power consumption

Industrial Design — Compact IP40 aluminum case, -40°C to 80°C wide temperature

Flexible Power — 12~48VDC redundant terminal block input

Stable Performance — 20Gbps switching fabric, jumbo frame support

Versatile Installation — DIN-Rail or wall-mount options included

Technical Indexes

Ethernet
Standards:	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3bz 2.5G/5GBASE-T
	IEEE 802.3an 10GBASE-T
	IEEE 802.3ae 10Gbps Ethernet
	IEEE 802.3x full-duplex flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	100Mbps
	1000Mbps
	2.5Gbps
	5Gbps
	10Gbps
Network Cables:	10G/5G/2.5G/1G/100M BASE-T: 　10G – Cat 6A/7 　5G – Cat 6/6A/7 　1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) 　EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 　9/125μm single-mode fiber optic cable, up to 80km
Processing Type:	Store-and-Forward
Fabric:	20Gbps
Jumbo Frame:	16K
Address Table:	9K entries, automatic source address learning and aging
Interface
Connector:	1 x RJ45
Optical Port:	1 x SFP+
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Reserved	ON - Reserved	OFF - Reserved
	SW 2	Reserved	ON - Reserved	OFF - Reserved
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
Note: DIP Switch’s function can be customized based on client’s requirements.
LED Indicators:
PWR:	Power Status
L/A:	Link/Activity at Ethernet Port
TP:	Ethernet Status
FX:	SFP+ Fiber Port Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail/Wall-mount
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC10G-SFP+	Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
SFP Options	► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).
SFP Options	► SFP+ module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
	► Power Supply is to be purchased separately.
