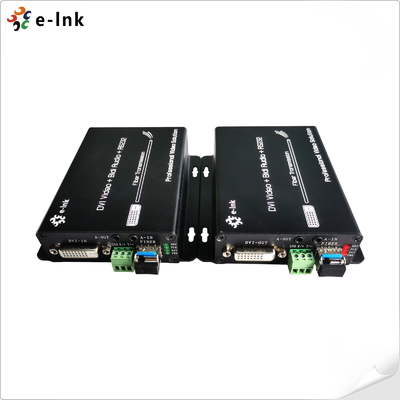

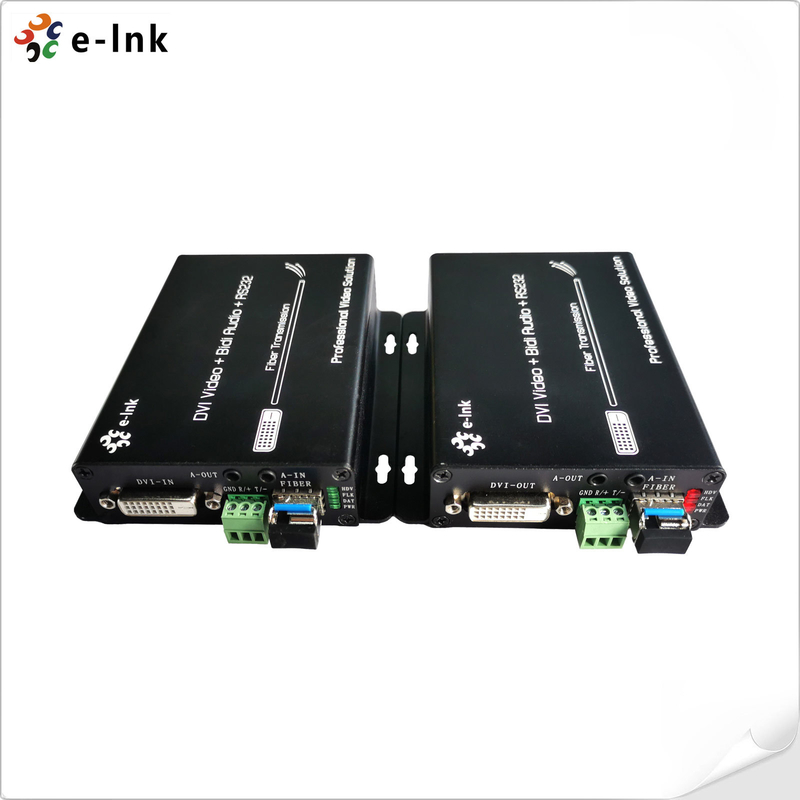

DVI Fiber Extender with RS232 Bi-Directional Audio 1080P up to 20km

Large Image : DVI Fiber Extender with RS232 Bi-Directional Audio 1080P up to 20km

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-DVI-1D1BA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$79-$99
Packaging Details:	DVI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Video:	DVI 1.0, HDCP 1.2 \| Max 1920×1200 @60Hz	Special Mode:	Supports 1600×1200 @60Hz
Audio:	Stereo, 3.5mm Jack \| 2-way Input/output	Fiber:	LC Connector, SFP Module \| SM Up To 20km (option Up To 80km)
Bandwidth:	3Gbps \| Pixel Clock 165MHz	Power:	DC 5V Adapter \| Max 4W Usage

DVI Fiber Extender with RS232 Bi-Directional Audio 1080P up to 20km

Overview

The LNK-DVI-1D1BA Fiber Optic Extender enables long-distance transmission of DVI video, RS232

control signals, and two-way stereo audio over a single optical fiber. Supporting resolutions up to

1920×1200 @60Hz with special handling for 1600×1200 @60Hz, it ensures stable, clear, and secure

video performance. With automatic adjustment, HDCP compliance, and robust ESD protection, this

compact extender is ideal for AV integration, broadcasting, command centers, and industrial

display applications.

Features

Extend DVI video up to 20km via single-mode optical fiber

Supports resolutions up to 1920×1200 @60Hz with 1600×1200 @60Hz enhancement

Bi-directional stereo audio transmission via 3.5mm interface

RS232 control signal support with baud rate up to 115200bps

HDCP 1.2 compliant for secure video distribution

Automatic image adjustment ensures smooth and stable output

Built-in ESD protection for reliable system integration

Compact, lightweight design with low power consumption (<4W)

Plug-and-play setup for fast deployment

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0 and HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Compliant	1080P@50/59.95/60Hz( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female DVI-D
	Impedance	100Ω
	DVI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Output
	Receiver	1Ch Input + 1Ch Output
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200
	Data Bits	8 bits
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Multi-mode fiber: <500M Single-mode fiber: 0~80km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%

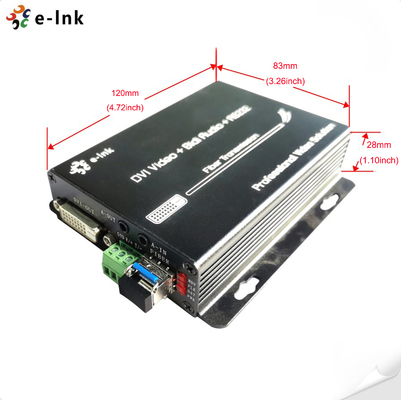

	Dimension (LxWxH)	120 x 83 x 28 (mm)
