1-Ch DVI KVM Fiber Extender w USB, RS232 Audio GPIO 1080P 60km
Overview

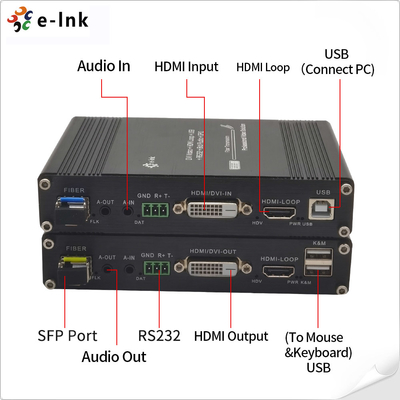

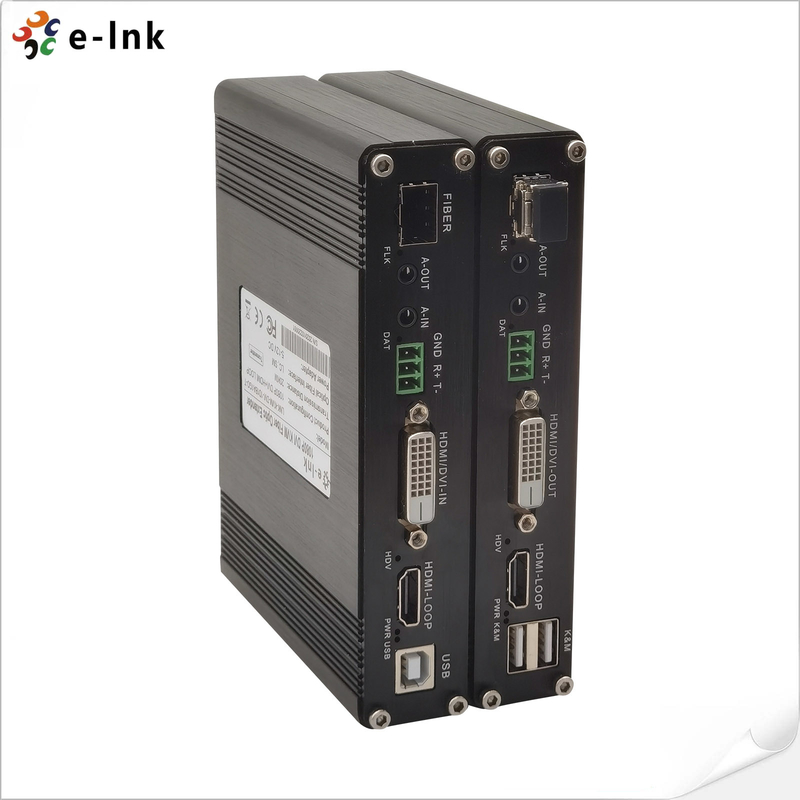

The LNK-KVM-DVI-1D1BA1GO Fiber Optic Extender delivers uncompressed 1080P DVI video,
USB keyboard/mouse, stereo audio, RS232, and GPIO signals over a single fiber cable up to 60km.
With HDMI loop-out, adaptive baud rate, and built-in ESD protection, it ensures stable, high-quality
transmission for control rooms, industrial automation, and secure AV systems. Designed for easy
plug-and-play deployment, it offers reliability, long-distance coverage, and high compatibility
with diverse source/display devices.
Features
Extend DVI video up to 60km via single-mode fiber (LC connector)
Supports resolutions up to 1920×1200 @60Hz, 1080P full HD
USB KVM support for keyboard & mouse operation
Bi-directional stereo audio transmission for real-time sound
RS232 unidirectional communication, self-adaptive up to 115200bps
GPIO signal interface for industrial applications
HDMI loop-out for local monitoring
Compliance with DVI 1.0 and HDCP 1.2 standards
Automatic adjustment & ESD protection for image stability and device safety
Compact metal housing, low power design (≤6W)
Technical Indexes
| Parameter |
Description |
| Video |
Standards |
DVI 1.0; HDCP 1.2 |
| Maximum pixel clock |
165MHz |
| Maximum data rate |
2.97Gbps |
| Resolution |
1920*1200@60Hz 1920*1080@50Hz
1920*1080@30Hz 1920*1080@25Hz
1920*1080@24Hz
1080I@60Hz 1080I@50Hz
1280*720@60Hz 1280*720@50Hz
|
| Connector |
DVI-D |
| Impedance |
100Ω |
| Audio |
Interface |
3.5mm earphone seat |
| Signal type |
Stereo |
| K/M |
Interface |
To PC: MINI-USB
To keyboard and mouse: USB-A
|
| GPIO |
Interface |
Industrial terminal |
| RS232 |
Interface |
Industrial terminal |
| Signal direction |
Unidirectional |
| Baud rate |
Self-adaptive, Max:115200bps |
| Data bits |
8 |
| Optical fiber |
Interface |
LC connector |
| Fiber type |
Single-mode single fiber |
| Wavelength |
Single-mode 1310nm |
| Interface bandwidth |
3Gbps |
| Transmission distance |
standard 10km |
| Other |
Power supply |
The power adapter: DC 12V/1A |
| Power dissipation |
MAX 6W |
| Temperature |
Operating: -5℃ ~ +70℃ |
| Humidity |
Operating: 5% ~ 90% |
| Dimension (LxWxH) |
148*115*28mm |
| The warranty |
1-year warranty |
Ordering Information
| Model |
Description |
| LNK-KVM-DVI-1D1BA1GO |
1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
Application
