IP67 Rugged Gigabit PoE Extender 1 In 3 Out + SFP 90W 400m

IP67 Rugged Gigabit PoE Extender 1 In 3 Out + SFP 90W 400m

Overview

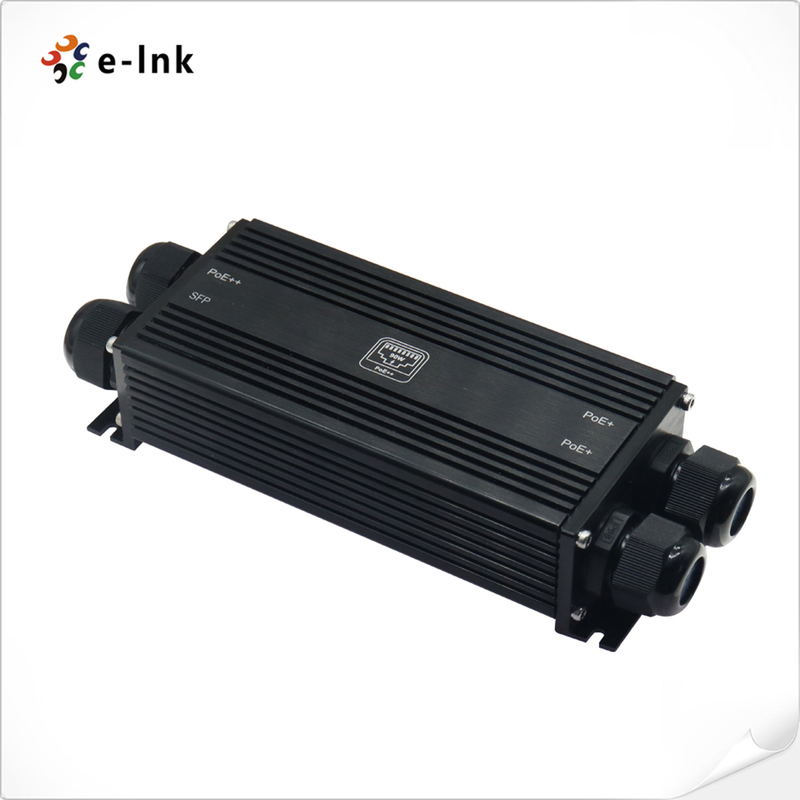

The LNK-WP-IPE103-SFP is a triple-output industrial Gigabit PoE extender with integrated SFP

port. Featuring 1 PoE++ input and 2 PoE outputs plus 1 fiber uplink, it enables both copper and

fiber network expansion while delivering up to 65W PoE power budget. Each unit extends PoE and

Gigabit data by 100 meters, with cascading support up to 400 meters for wide-area deployments.

With IP67-rated aluminum housing, IK10 impact protection, and -40°C to 80°C temperature

tolerance, it ensures reliable operation in outdoor surveillance, wireless backhaul, and industrial

networking environments.

Features

1 PoE++ input (90W), 2 PoE outputs, 1 Gigabit SFP fiber port

Extends Ethernet & PoE by 100m, daisy-chain up to 400m

Supports IEEE 802.3af/at/bt standards for maximum flexibility

IP67 waterproof housing + IK10 impact resistance for harsh sites

Fiber uplink for hybrid copper + fiber network extension

Plug-and-play, no external power required

6Gbps switching, 4.46Mpps forwarding rate, 10KB jumbo frame

Surge (6KV) & ESD (8KV) protection for stable outdoor deployment

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Fiber Port	1 x 100M/1000M SFP Port
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter

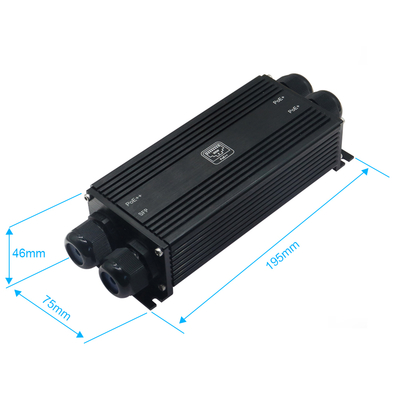

Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certifications
Certifications	CE, FCC, RoHS

Ordering Information

3-Grade Cascading Diagram
