IP67 Industrial Gigabit PoE Extender 1 In 1 Out 90W 400m Cascade

IP67 Industrial Gigabit PoE Extender 1 In 1 Out 90W 400m Cascade

Overview

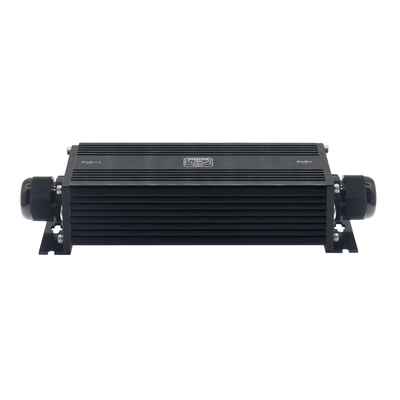

The LNK-WP-IPE101 is a rugged IP67 waterproof PoE extender designed for demanding outdoor

and industrial deployments. With one PoE++ input and one PoE output, it extends both Gigabit data

and PoE power by 100m per unit, supporting daisy-chain connections up to 400m. Delivering up to

60W per port (65W total), it powers high-consumption devices like PTZ cameras, APs, and outdoor

networking gear without requiring extra power cabling. Built with an IP67 aluminum housing, IK10

impact resistance, and -40°C to 80°C temperature tolerance, it ensures long-lasting performance

in harsh environments.

Features

1 PoE++ input (90W) and 1 PoE output (65W max total)

Extends PoE + Gigabit data by 100m, daisy-chain up to 400m

Supports IEEE 802.3af/at/bt standards, compatible with high-power PDs

IP67 waterproof aluminum housing with IK10 anti-impact rating

Plug-and-play, no external power supply needed

6Gbps switching capacity, 2K MAC table, and 10KB jumbo frame support

Surge (6KV) & ESD (8KV) protection for reliable operation

Designed for outdoor surveillance, APs, and industrial networking

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter

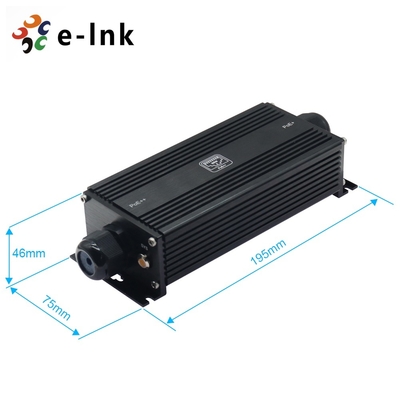

Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certifications
Certifications	CE, FCC, RoHS

Ordering Information

3-Grade Cascading Diagram
