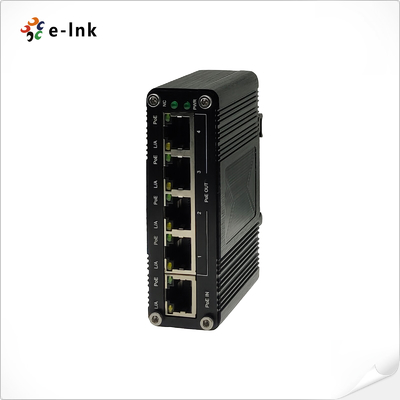

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain

Large Image : Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-IPE104-90
Document:	E-link LNK-IPE104-90 Indust....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pcs
Price:	$79-$104
Packaging Details:	PoE Extender Standard Export Package
Delivery Time:	3-9 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	3000 pcs/month

Contact Now

Detailed Product Description

PoE Input:	1× RJ45, IEEE 802.3bt, Up To 95W	PoE Output:	4× RJ45, IEEE 802.3af/at, Total 75W
Extension Distance:	200m Per Unit, Up To 400m Daisy-chained	Dimensions:	95 × 70 × 30 Mm, 0.25 Kg
Operating Temp:	-40°C To 80°C	Mounting:	DIN-Rail / Wall-mount

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain

overview

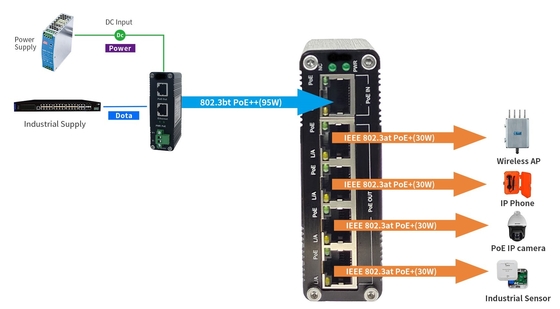

The LNK-IPE104-90 is a rugged industrial PoE extender that converts one 802.3bt PoE++

input into four 802.3af/at Gigabit PoE outputs. Designed for point-to-multipoint deployments,

it delivers up to 75W total power budget, extends Ethernet and PoE beyond 100m, and

supports cascading up to 400m without additional power adapters. With IP40-rated aluminum

housing and wide temperature tolerance, it ensures reliable operation in harsh industrial and

outdoor environments.

Features

1× 802.3bt PoE++ Input — Accepts up to 95W power

4× Gigabit PoE Outputs — Total 75W PoE power budget

Long-Distance Extension — Extends Ethernet + PoE up to 200m; 400m with 3 extenders

Industrial Design — IP40-rated aluminum casing, -40°C to 80°C operation

Flexible Mounting — DIN-Rail & Wall-mount supported

High Reliability — 6kV surge & 8kV ESD protection, CE/FCC/RoHS certified

Technical Indexes

Ethernet Port
PoE Input Port	10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W
PoE Output Port	1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m
Cascade connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control
Forwarding Modes	Store and Forward
Transmission Distance	100m
MAC Table	8K
Switching Capacity	10Gbps
Packet Forwarding Rate	14.88Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC6000-4-5
ESD Protection	6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2
Protection Level	IP 40
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-IPE104-90	Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
