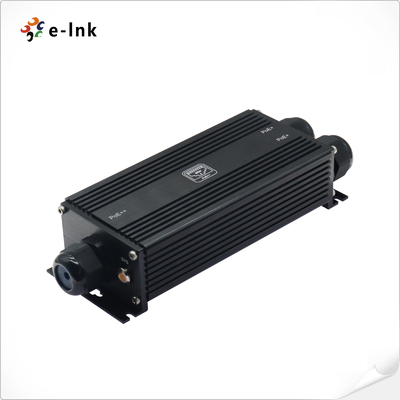

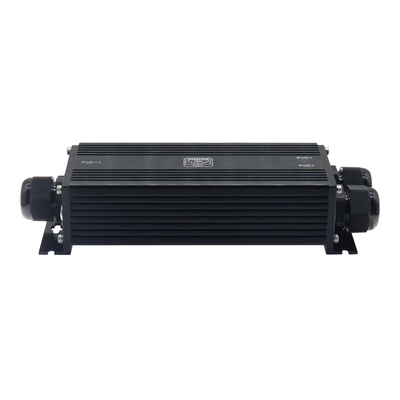

IP67 Industrial 2-Port Gigabit PoE Extender 1 In 2 Out 90W 400m

IP67 Industrial 2-Port Gigabit PoE Extender 1 In 2 Out 90W 400m

Overview

The LNK-WP-IPE102 is a dual-output IP67 waterproof PoE extender designed for outdoor and

industrial-grade networks. With one PoE++ input and two PoE output ports, it extends both Gigabit

data and PoE power by 100m per unit and supports cascading up to 400m. Delivering up to 65W total

PoE power (60W max per port), it enables high-reliability powering of IP cameras, wireless APs, and

other PoE devices without external power supplies. The IP67 rugged housing, IK10 impact resistance,

and -40°C to 80°C wide temperature range ensure dependable operation in the toughest environments.

Features

1 PoE++ input (90W) and 2 PoE outputs (65W total, 60W max/port)

Extends PoE + Gigabit data by 100m, cascade up to 400m

Supports IEEE 802.3af/at/bt standards for flexible deployment

IP67 waterproof aluminum housing with IK10 impact protection

Plug-and-play design, no external power supply required

6Gbps switching capacity, 2K MAC table, 10KB jumbo frame support

6KV surge & 8KV ESD protection for reliable field use

Ideal for outdoor surveillance, APs, and industrial networking

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certifications
Certifications	CE, FCC, RoHS
