36-72VDC to 24V 24W Gigabit Passive PoE Injector DC-DC Converter

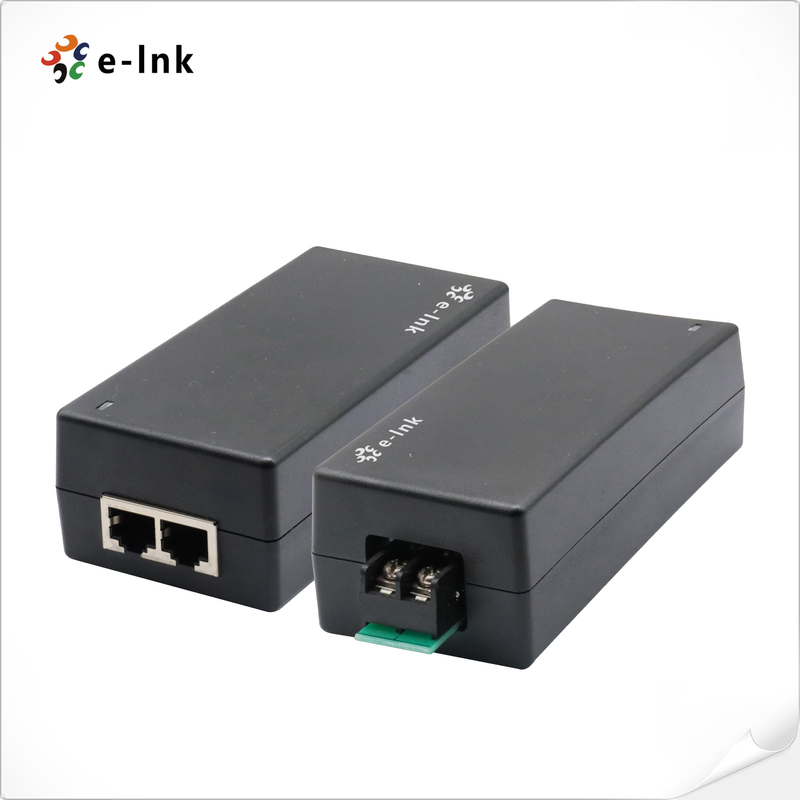

Large Image : 36-72VDC to 24V 24W Gigabit Passive PoE Injector DC-DC Converter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	E-link
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$14-$20
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-9 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Input Voltage:	36–72VDC	Output Power:	24VDC, 24W (Passive PoE)
Ethernet Ports:	1×RJ45 Data In, 1×RJ45 Data+Power Out	Standards:	IEEE 802.3 10/100/1000Base-T
Power Pinout:	4/5 (+), 7/8 (–) & 1/2 (+), 3/6 (–)	Operating Temp:	-10°C To +50°C

36-72VDC to 24V 24W Gigabit Passive PoE Injector DC-DC Converter

Overview

The LNK-DC-P24G is a compact, high-efficiency DC to DC converter with integrated Gigabit

Passive PoE injector. Designed to operate from a 36–72VDC power source, it delivers a

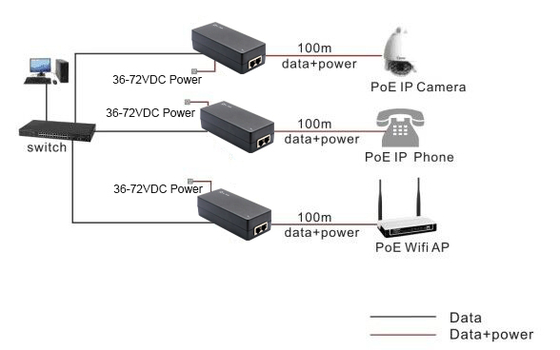

stable 24V/24W passive PoE output for powering access points, IP cameras, and wireless

devices. With built-in surge, overload, and over-temperature protections, this rugged solution

ensures reliable operation in enterprise and industrial environments.

Features

Wide input range: 36–72VDC with regulated 24V output.

High power output: up to 24W passive PoE.

Supports Gigabit Ethernet (10/100/1000Base-T) for seamless data + power.

Multiple protections: OVP, OLP, OTP & short-circuit protection.

Plug-and-play with automatic detection of non-standard terminals.

Compact & lightweight plastic case with desktop mounting option.

Dual (+) input terminals allow primary & backup power source connection.

Fanless design with >85% power efficiency.

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat. 5, 5e, 6 up to 100m (328ft)
Connector:	LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port
Environmental
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Voltage Range:	36-72V DC
Output Voltage:	DC 24V, 1.0A
Power Consumption:	24 watts max.
Passive PoE (Power over Ethernet)
Port:	RJ45
Power Pin Assignment	Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-)
LED Indicators
Power:	Power Status
PoE:	PoE Status
Dimensions (W×D×H):	122 x 60 x 40mm
Weight:	0.35Kg
Casing:	Plastic Case
Mounting Options:	Desktop
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV
