14-Slot 2U Media Converter Rack with Dual Power Supply Hot-Swap Support

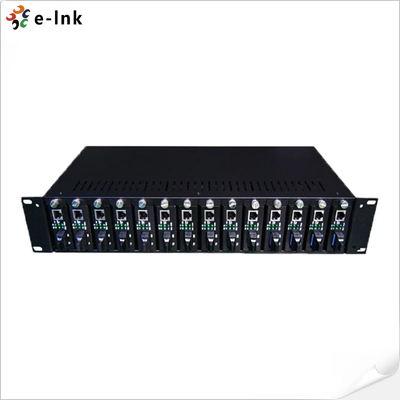

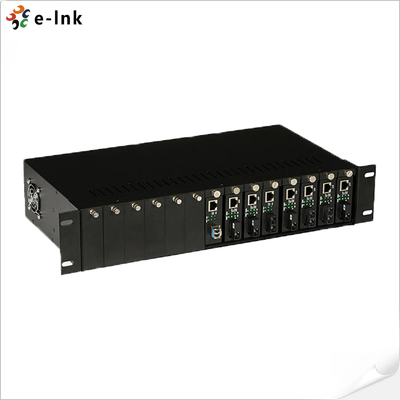

Large Image : 14-Slot 2U Media Converter Rack with Dual Power Supply Hot-Swap Support

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-R14
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$65-$112
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Slots:	14 Modular Bays For Flexible Expansion	Rack Size:	2U (90×485×230 Mm) Compact Chassis
Max Power Output:	DC 5V / 16A, 95W Max Consumption	Compatibility:	LNK-1100 & LNK-3011 Media Converter Series
Reliability:	Hot-swap Support & MTBF >100,000 Hours	Environment:	-10~55°C Operation, 5%~90% Humidity
Dimension:	90mm（H）x 485mm（W）x 230mm（D）

14-Slot 2U Media Converter Rack with Dual Power Supply Hot-Swap Support

Overview

The LNK-R14 14-Slot Media Converter Rack is a cost-effective, space-saving 2U chassis

designed for data centers and equipment rooms. It supports up to 14 media converter

modules of different types, with dual AC/DC power options for reliable, continuous operation.

Its hot-swappable design ensures flexible maintenance without downtime.

Features

14 slots in 2U rack design – space-efficient for equipment rooms

Dual AC 220V / DC -48V power supplies with automatic switchover

Supports multiple module types (10/100M & 10/100/1000M converters)

Hot-swappable modules for flexible upgrades & maintenance

High reliability with ≤20mv ripple and warm backup power mode

Wide temperature range (-10℃~55℃) and 95W max power consumption

Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Dimension	90mm(H)x 485mm(W)x 230mm(D)
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC -36~72V
Power output	DC5V 16A
Ripple	≤20 mv
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	95W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Ordering Information

Item	Description
Item	Description
LNK-R14-1-A	14-slot, single power supply-AC220V-19''2U- black-for converter standalone
LNK-R14-2-A	14-slot, dual power supply-AC220V-19''2U- black-for converter standalone
LNK-R14-1-D	14-slot, single power supply-DC-48V-19''2U- black-for converter standalone
LNK-R14-2-D	14-slot, dual power supply-DC-48V-19''2U- black-for converter standalone
