Gigabit 10/100/1000M Media Converter with SFP Slot External Power Supply

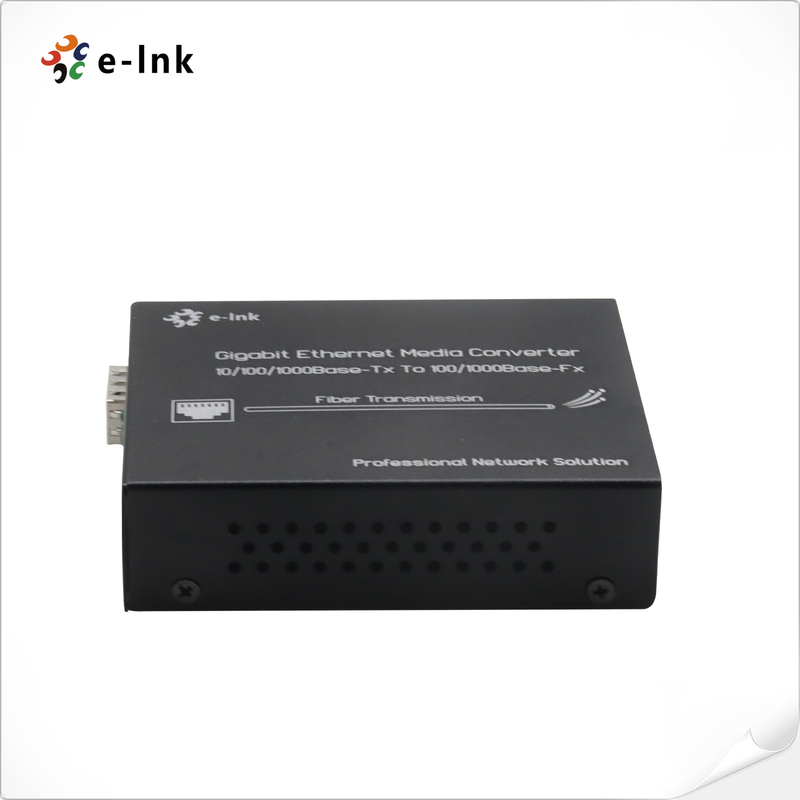

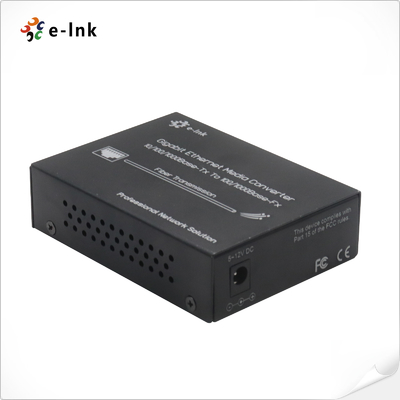

Large Image : Gigabit 10/100/1000M Media Converter with SFP Slot External Power Supply

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-3011WSFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$15-$22
Packaging Details:	Ethernet Media Converter Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Network Interface:	1 × RJ45 (10/100/1000Mbps), 1 × SFP (1000Base-SX/LX)	Transmission Distance:	Opper 100 M, Multi-mode Fiber 220–550 M, Single-mode Fiber 20–120 Km
Power Supply:	External AC90–240V → 5V2A	Power Consumption:	5W
Operating Temp:	-10°C To 55°C, Storage: -40°C To 70°C	Standards:	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z

Gigabit 10/100/1000M Media Converter with SFP Slot External Power Supply

Overview

The LNK-3011WSFP Gigabit Ethernet Media Converter seamlessly converts copper RJ45 networks to fiber SFP connections. Supporting 10/100/1000Base-T and 1000Base-SX/LX, it extends Ethernet transmission from 100m over copper to up to 120 km via fiber. With full/half duplex, auto MDI/MDI-X, QoS, and VLAN support, it ensures reliable high-speed network communication for industrial, commercial, and enterprise applications. External power supply adds stable operation.

Features

Dual media conversion – 10/100/1000Base-T to 1000Base-SX/LX SFP

Ultra-long reach – up to 120 km via fiber, 100 m via copper

Flexible duplex – auto-sense full/half duplex, MDI/MDI-X

Enhanced network performance – supports extra-long VLAN packets and QoS for VoIP

Reliable operation – external AC90–240V → 5V2A power supply, 5W consumption

Status LEDs – power, fiber link, TP link & activity indicators

Compact & durable – industrial-grade casing with MTBF 100,000 hours

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
	single mode Dual-fiber: 20/40/60/80 Km
	single mode Single fiber: 20/40/60/80 Km
	Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Port	One optical port: SFP 3.3V
Conversion means	Media conversion
BER	<10-9
MTBF	100,000 hours
LED indicator	POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action)
Power supply	External Power: AC90~240V input, 5V2A output
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	71 x 94 x 26 mm
