HD-SDI Video Extender over CAT5 / 6 Kit

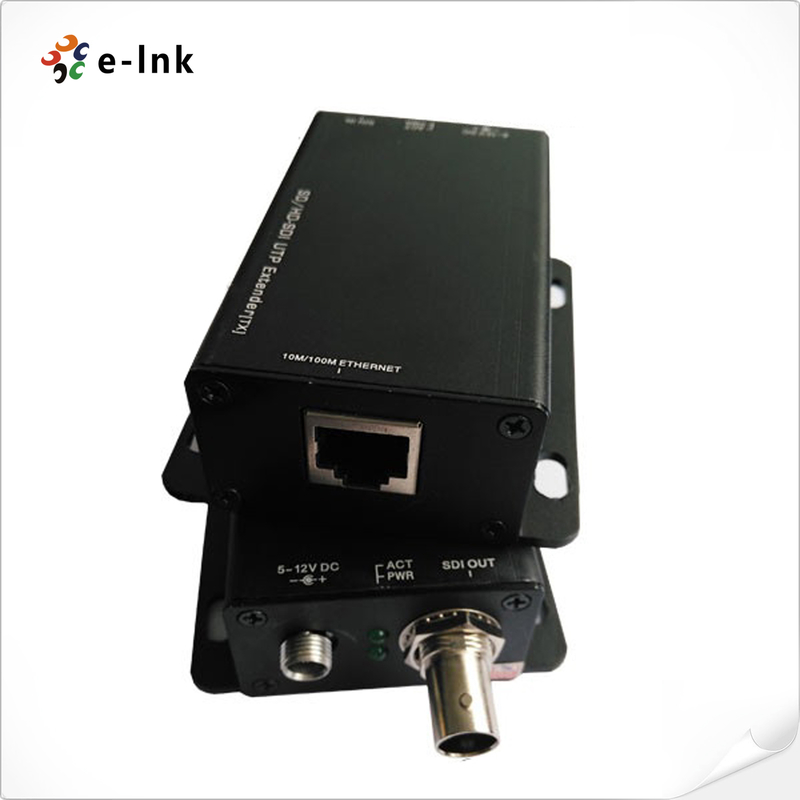

HD-SDI Video Extender Overview
The LNK-DTS050 HD-SDI Extender enables the transmission of high-quality, uncompressed digital
video over a single CAT5e/CAT6 cable for distances of up to 60 metres (200 feet). With a bandwidth
of 1.485 Gbps, it reliably transmits HD-SDI signals without compression or encryption, preserving
the original video quality. This cost-effective, point-to-point solution supports embedded audio and
time code data, making it an ideal choice for professional broadcast environments, television
production facilities and high-end AV systems. Its simple plug-and-play design ensures quick
and easy integration into existing workflows.
HD-SDI Video Extender Features
- SDI Compatibility: Supports HD-SDI and SD-SDI standards.
- Extended Transmission Distance: Up to 50m (160ft) over CAT5e and 60m (200ft) over CAT6 cable.
- Standards Compliance:
- SDI – SMPTE 259M-C (270Mbps)
- HD-SDI – SMPTE 292M (1.485 / 1.485 ÷ 1.001 Gbps)
- Smart Diagnostics: LED indicators for sync status and SDI auto-detection.
HD-SDI Video Extender Technical Indexes
|
Model
|
LNK-DTS050
|
|
Type
|
Transmitter
|
Receiver
|
|
Standard Supported
|
SMPTE 259M (270Mb/s), SMPTE 292M
|
|
Speed
|
270Mb/s, 1.485Gb/s (automatic selection)
|
|
Support Input Format
|
SD: 525i @ 59.94Hz, 625i @ 50Hz
|
|
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
|
|
720p @ 50Hz / 59.94Hz / 60Hz
|
|
1080i @ 50Hz / 59.94Hz / 60Hz
|
|
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
|
|
@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz
|
|
Indicators
|
Power on (on both end)
|
|
Sync detection (on both end)
|
|
Link between the two units working (on both end)
|
|
Connectors
|
1x BNC 75 ohm female
|
|
1x RJ45 of CAT5e/6 unshielded or shielded twisted pair
|
|
1x power plug, 2.1mm
|
|
Maximum Distance
|
All resolutions
|
|
CAT5 UTP/STP: 50m / 160ft
|
|
CAT6 UTP/STP: 60m / 200ft
|
|
Power Supply
|
DC12V/1A
|
|
Power Consumption
|
2.5W (Tx and Rx)
|
|
Operating Temperature
|
-10°C ~ 60°C / 14°F ~ 140°F
|
|
Storage Temperature
|
-30°C ~ 70°C / -22°F ~158°F
|
|
Dimensions (L*W*H)
|
98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches
|
HD-SDI Video Extender Application
