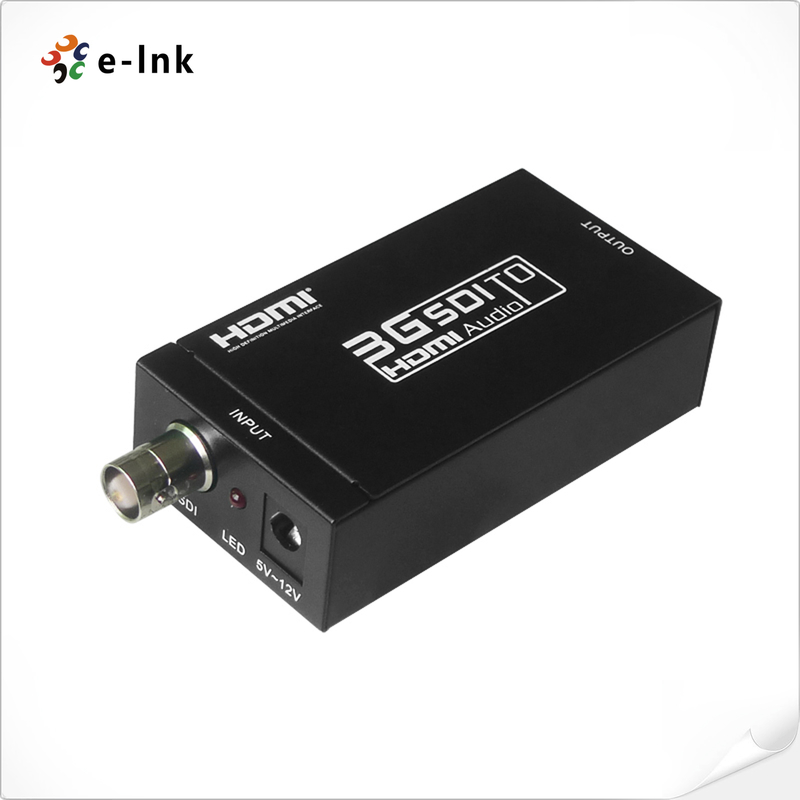

3G-SDI to HDMI Converter
3G-SDI to HDMI Converter Overview
This professional SDI-to-HDMI converter supports SD-SDI, HD-SDI, and 3G-SDI signals seamlessly,
delivering ultra-high-speed transmission at 2.97 Gbit/s with zero signal loss. Ideal for broadcast and
production experts, it effortlessly distributes and extends 3G-SDI sources to HDMI or SDI displays.
Its integrated conversion technology ensures broad compatibility and professional-grade performance.
3G-SDI to HDMI Converter Features
-
Supports data rates of 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps
-
Compliant with SMPTE 425M (Level A & B), SMPTE 424M, SMPTE 292M, and SMPTE 259M-C standards
-
Equalized and re-clocked loop output for stable signal transmission
-
Integrated audio de-embedder supporting up to 8 channels at 48 kHz
-
Converts SMPTE 425M Level B to Level A for 1080p 50/59.94/60 4:2:2 10-bit formats
-
Supports daisy-chaining with multiple units for long-distance signal extension
3G-SDI to HDMI Converter Technical Indexes
|
Parameter
|
Specifications
|
|
Input Port
|
1 x BNC (SDI/HD-SDI/3G-SDI)
|
|
Output Port
|
1 x HDMI
|
|
SMPTE Standard
|
425M Level A & B, 424M, 292M, 259M-C
|
|
SDI Transmission Rates
|
2.970 Gbit/s and 2.970/1.001 Gbit/s
|
|
In/Output Resolution
|
480i, 576i, 720p@50/59.94,60 ,
1080i@50/59.94/60
1080p@23.98/24/25/29.97/30/50/59.94/60
1080PsF@23.98/24/25/29.97/30
|
|
HDMI input/output connect
|
HDMI type A 19Pin
|
|
 Link Connector
|
BNC Shielded
|
|
Power Adapter
|
DC5V/1A
|
|
Operating temperature range
|
-40℃ to +70℃
|
|
Operating humidity range
|
5 to 90% RH (no condensation)
|
|
Shippingweight
|
0.15 KGS
|
|
Dimensions( L x W x H)
|
98.5 x 85 x 31mm
|
3G-SDI to HDMI Converter Ordering Information
|
Item
|
Description
|
Unit
|
Unit Price
Ex-works(in US$)
|
|
Sample
1~10
|
<100
|
>100
|
|
LNK-SHC110
|
3G/HD/SD-SDI to HDMI Converter, Inputs: 1 x SDI (3G/HD/SD), Outputs: 1 x HDMI
|
pcs
|
US$39
|
US$32
|
US$29
|
3G-SDI to HDMI Converter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
