8Ch POTS(FXO/FXS)Telephone over Fiber Mux
8Ch POTS Telephone over Fiber Overview

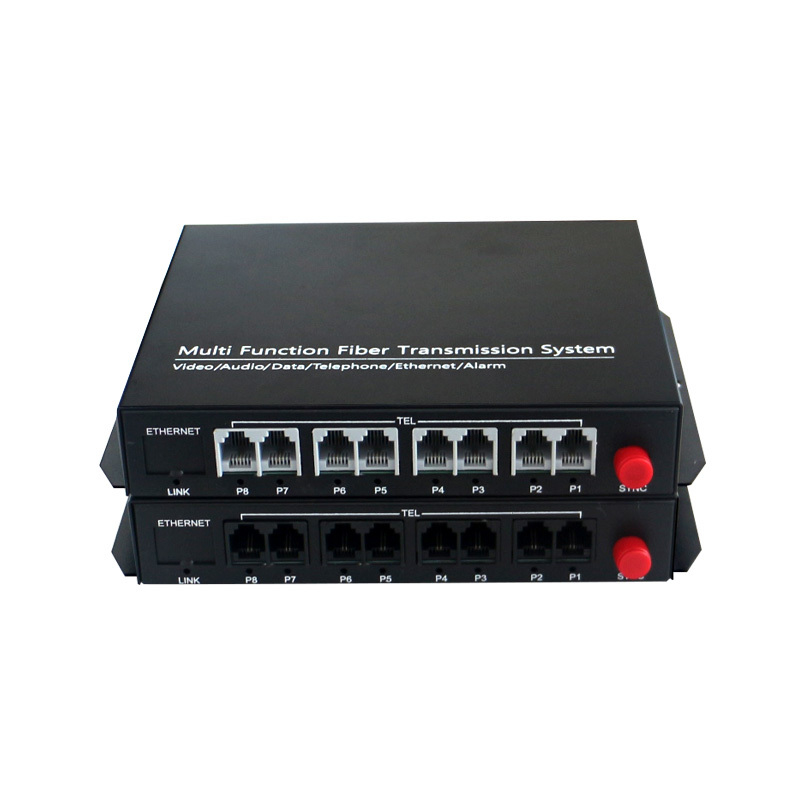

The E-link 8-Channel POTS over Fiber Converter delivers enterprise-grade capacity by transmitting
eight separate traditional telephone lines over a single optical fiber strand. This high-density Voice
over Fiber solution maximizes infrastructure efficiency while dramatically reducing cabling complexity
and costs. It features standard RJ-11 connectors for seamless integration with existing copper pair wiring.
The system operates through complementary FXO and FXS units: the FXO interface connects
to central office (PSTN) or PBX trunk lines with full ringing voltage detection, while the reciprocal FXS unit
connects directly to end-user telephone devices, providing complete dial tone and calling functionality.
Engineered for superior voice clarity and complete immunity to electromagnetic interference, this robust
extender is the ideal solution for large-scale voice service deployment across campuses, multi-building
facilities, hospitals, and secure industrial complexes.
8Ch POTS Telephone over Fiber Features
-
Standard RJ11 telephone interface for universal compatibility
-
8 voice channels with support for Caller ID and Fax functions
-
Dual voice port design (O port & S port):
-
Compatible with FXO/FXS standard telephones
-
Supports point-to-point, cascaded, and distributed networking with no SNR degradation
-
Fiber optic power link with LED indicators for real-time system health monitoring
-
Industrial-grade modular design ensures flexible deployment, high stability, and long-term reliability
8Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
8 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM08 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
8 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 85°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 3A)
|
|
Power supply
|
External power supply,
Input:AC110-80V 50/60Hz,
Output:12V 3A
|
8Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM08
|
Analog Telephone to F/O Converter: 8-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM08-E
|
Analog Telephone to F/O Converter: 8-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
8Ch POTS Telephone over Fiber Application
