2Ch POTS(FXO/FXS)Telephone over Fiber Mux
2Ch POTS Telephone over Fiber Overview

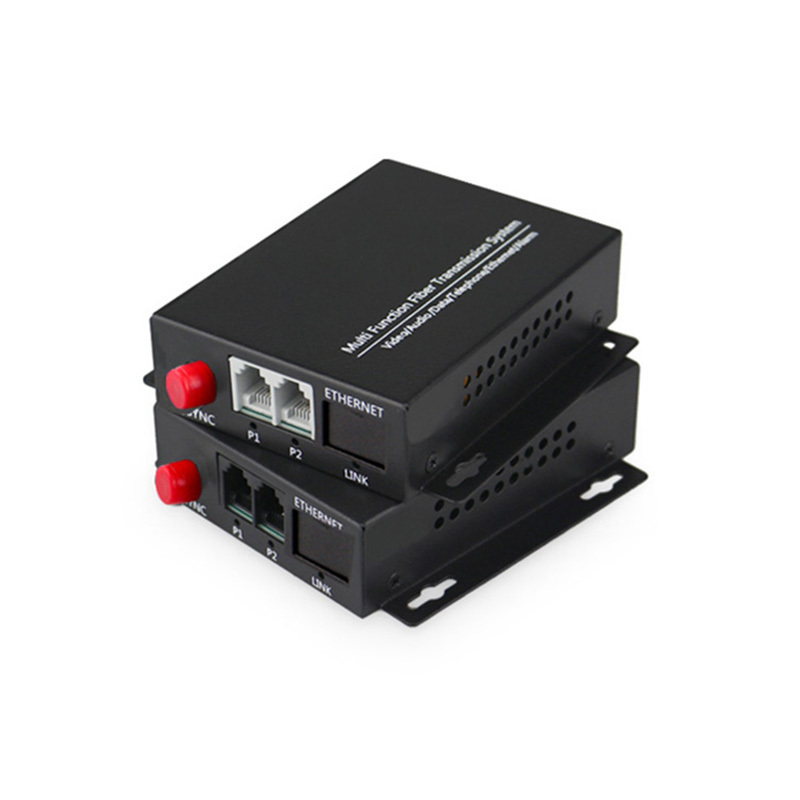

The E-Link 2-Channel POTS-to-Fibre Converter reliably extends two separate traditional telephone
lines (POTS) over a single optical fibre, significantly increasing capacity and cost efficiency.
Designed for seamless integration, it features standard RJ-11 connectors for straightforward
copper pair termination. The system operates alongside complementary units: the FXO model interfaces
with central office (PSTN) or PBX trunk lines and features ringing voltage detection.
The reciprocal FXS model connects directly to telephone sets, fax machines or modems,
providing dial tone and functionality as the line source. This robust solution is ideal for securing
and extending critical voice communications to remote buildings, campuses and industrial sites,
offering superior clarity and immunity to interference.
2Ch POTS Telephone over Fiber Features
-
Standard RJ11 telephone interface for universal compatibility
-
2 voice channels with support for Caller ID and Fax transmission
-
Dual voice port design (O port & S port):
-
Compatible with FXO/FXS standard telephones
-
Supports point-to-point, cascaded, and distributed networking with no SNR degradation
-
Fiber optic power link with status LEDs for real-time system health monitoring
-
Industrial-grade modular design ensures flexible deployment, high reliability, and durability
2Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
2 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM02 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
2 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 45°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 1A)
|
|
Power supply
|
External power supply,
Input:AC110-40V 50/60Hz,
Output:12V 1A
|
2Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM02
|
Analog Telephone to F/O Converter: 2-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM02-E
|
Analog Telephone to F/O Converter: 2-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
2Ch POTS Telephone over Fiber Application
