1Ch POTS(FXO/FXS)Telephone over Fiber Mux
1Ch POTS Telephone over Fiber Overview

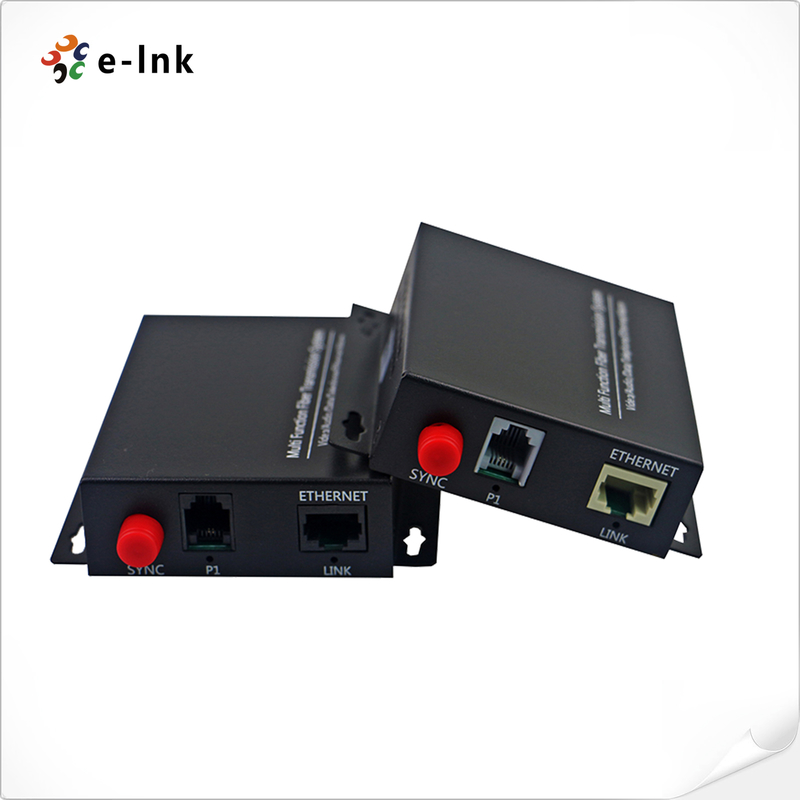

The E-Link Single Channel POTS-to-Fibre Converter transmits traditional telephone signals (POTS)
via optical fibre, extending your telephone service far beyond the reach of standard copper wiring.
This compact extender uses reliable RJ-11 connectors to seamlessly integrate with existing
telephone equipment. Two models are available: the FXO type connects to a central office
(PSTN) or PBX line and can detect ringing voltage; the FXS type connects directly to
a standard telephone device and acts as the line provider. This solution is ideal for securing
and extending critical voice communications on campuses, in remote buildings and in industrial facilities.
1Ch POTS Telephone over Fiber Features
- Standard RJ11 telephone interface for easy connectivity
- 1 voice channel with support for Caller ID and Fax functions
- Dual voice port design (O port & S port):
- O port connects to the switch
- S port connects to the user’s phone
- Compatible with FXO/FXS standard telephones
- Supports point-to-point, cascaded, and distributed networking without SNR degradation
- Fiber optic power link with LED indicators for real-time system status monitoring
- Industrial-grade, modular design ensures flexibility, stability, and reliability
1Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
1 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM01 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
1 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 45°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 1A)
|
|
Power supply
|
External power supply,
Input:AC110-40V 50/60Hz,
Output:12V 1A
|
1Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM01
|
Analog Telephone to F/O Converter: 1-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM01-E
|
Analog Telephone to F/O Converter: 1-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
1Ch POTS Telephone over Fiber Application
