Mini Bi-directional HD/3G-SDI to Fiber Converter

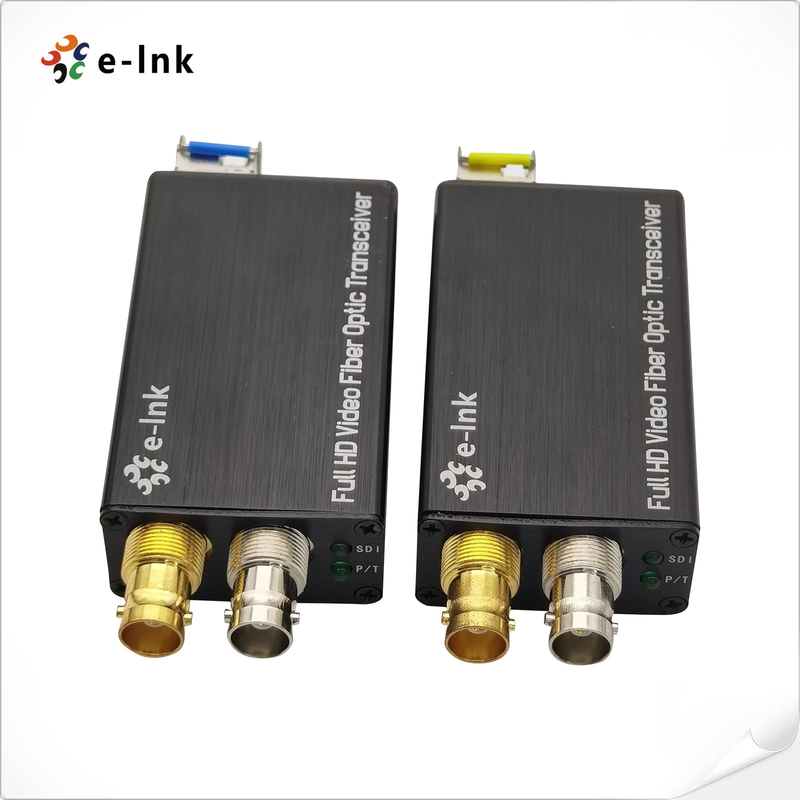

Mini Bi-directional HD/3G-SDI Fiber Converter Overiew
The Mini-type 3G/HD-SDI Fiber Converter is designed for professional video transmission, supporting
1-channel bi-directional 3G/HD-SDI video (with embedded audio) over a single fiber optic cable.
This solution includes a transmitter and receiver pair, enabling real-time, lossless,
uncompressed digital video at broadcast quality. It fully supports all pathological patterns,
ensuring stable and reliable signal transmission for 1080P 3G/HD-SDI signals. Ideal for security surveillance,
video conferencing, live broadcasting, and event production applications.
Mini Bi-directional HD/3G-SDI Fiber Converter Features
► Each channel includes 4-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► Super optic dynamic range and free of adjustment;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Mini Bi-directional HD/3G-SDI Fiber Converter Technical Indexes
| Fiber Optical interface |
| Fiber interface |
Simplex LC |
| Transmission distance |
0-20Km (Other distance available) |
| Wavelength |
1310nm/1550nm |
| Video |
| Video interface |
BNC |
| Video input/output impedance |
75Ω |
| Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate |
Max 3.2Gb/s |
| Differential gain (10%～90% APL) |
<1% |
| SDI format support |
625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC |
| 720p50, 720p59.94 |
| 1080i 23/24/30/50/59.94 |
| 1080P 23.98/24/30/50/60 |
| Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) |
| SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Electrical |
| Power adaptor |
DC 5~12V |
| Power consumption |
<5W |
| LED Indicator |
| SDI |
SDI video |
| P/T |
Power Supply |

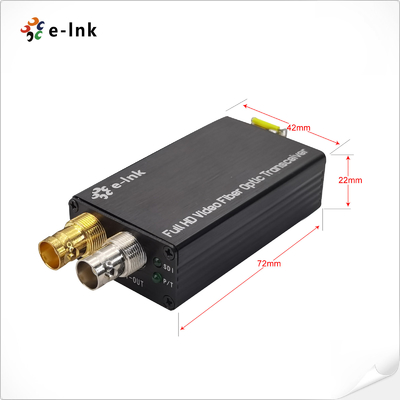

| Mechanical |
| Dimensions (LxWxH) |
80 x 40 x 20 mm |
| Weight |
0.8KG/pair |
| Casing |
Aluminum Case |
| Mounting Options |
Desktop |
| Environmental |
| Working Temperature |
-20℃～+70℃ |
| Storage Temperature |
-40℃～+80℃ |
| Working Humidity |
0~95% |
| MTBF |
≥100000 hours |
Mini Bi-directional HD/3G-SDI Fiber Converter Ordering Information
| Model |
Description |
| LN K-MHD-BIMM |
Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-BI20 |
Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-MHD-BI40 |
Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
Mini Bi-directional HD/3G-SDI Fiber Converter Application
Mini Bi-directional HD/3G-SDI Fiber Converter Panel & Interface
