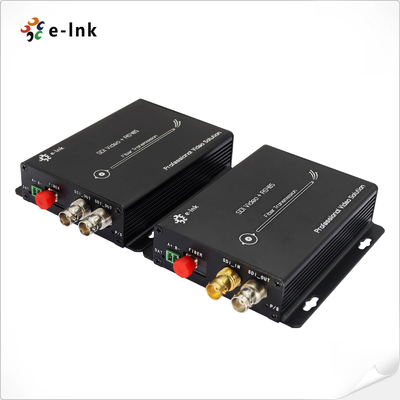

HD-SDI to Fiber Converter
HD-SDI to Fiber Converter Features
1. Advanced Multi-Channel Audio & Video Transmission
This converter efficiently handles 1-channel HD-SDI video with 8-channel embedded audio per SDI stream. It transmits broadcast-quality content and bidirectional RS422/485 control data over fiber optics, utilizing full digital non-compressed transmission to ensure professional broadcast-level signal integrity and compatibility.
2. Automatic Signal Integrity Management
Equipped with intelligent features including automatic cable equalization and automatic reclocking (270Mbps-1.48Gbps). These functions maintain optimal signal quality over distance, compensating for cable loss and jitter to guarantee pristine video and data transmission without manual adjustment.
3. Extended Transmission Distance & Flexibility
Designed for long-distance applications, supporting reliable transmission from at least 10km (6.2 miles) up to 80km. It integrates fiber optic WDM/CWDM/DWDM techniques and 1000M optical fiber capability, offering scalable bandwidth for future network upgrades and easy integration into existing infrastructures.
4. High-Reliability Industrial Operation
Built for demanding environments with a terminal block power input and support for hot swapping/plugging. It features an industry-level ultra-broad operating temperature range (-40℃ to +85℃) and advanced surface coating techniques, ensuring robust performance and durability in various harsh conditions.
5. Direct System Integration & Enhanced Optics

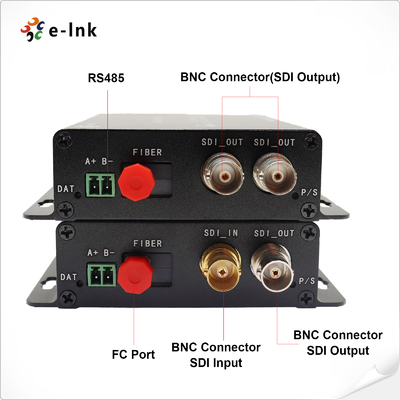

Seamlessly integrates with HD-SDI camera systems through an SDI input, FC fiber output, and local SDI loop monitor. The design provides superior optical dynamic range, enabling plug-and-play deployment without pre-use adjustments, making it an ideal, maintenance-friendly solution for immediate system expansion.

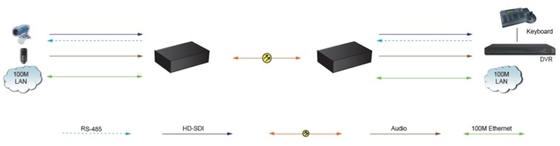

HD-SDI to Fiber Converter Application
1.High-Definition Broadcast & Live Production Links
Ideal for broadcast contribution and studio-to-transmitter (STL) links, transporting HD-SDI signals with embedded audio over long distances. Provides jitter-free, uncompressed video transmission for live event production, OB vans, and remote broadcast centers, ensuring signal integrity and timing accuracy.
2. Long-Distance CCTV & Security Surveillance Systems
Deployed in large-scale perimeter security and city-wide surveillance networks. Extends HD-SDI camera feeds from remote locations—such as airports, harbors, and critical infrastructure—to central monitoring stations over single-mode fiber, eliminating EMI/RFI interference and enabling real-time monitoring up to 80km.
3. Traffic Management & Intelligent Transportation Systems (ITS)
Supports high-definition video transmission in traffic control centers and ITS networks. Used for license plate recognition (LPR), traffic flow monitoring, and incident detection systems along highways and tunnels, providing stable, long-haul connectivity for HD-SDI traffic cameras with bi-directional data control.
4. Professional A/V & Large-Venue Signal Distribution
Enables signal extension in stadiums, convention centers, and command & control rooms. Distributes multi-channel HD video with embedded audio from production switchers to display walls or projectors over fiber, supporting low-latency, high-fidelity A/V integration in complex installations.
5. Industrial & Harsh Environment Video Monitoring
Designed for extreme environment video applications in oil & gas facilities, power plants, and mining operations. Its industrial-grade housing and wide temperature tolerance ensure reliable operation for process monitoring, safety inspection, and remote visualization where electrical noise and temperature extremes are present.

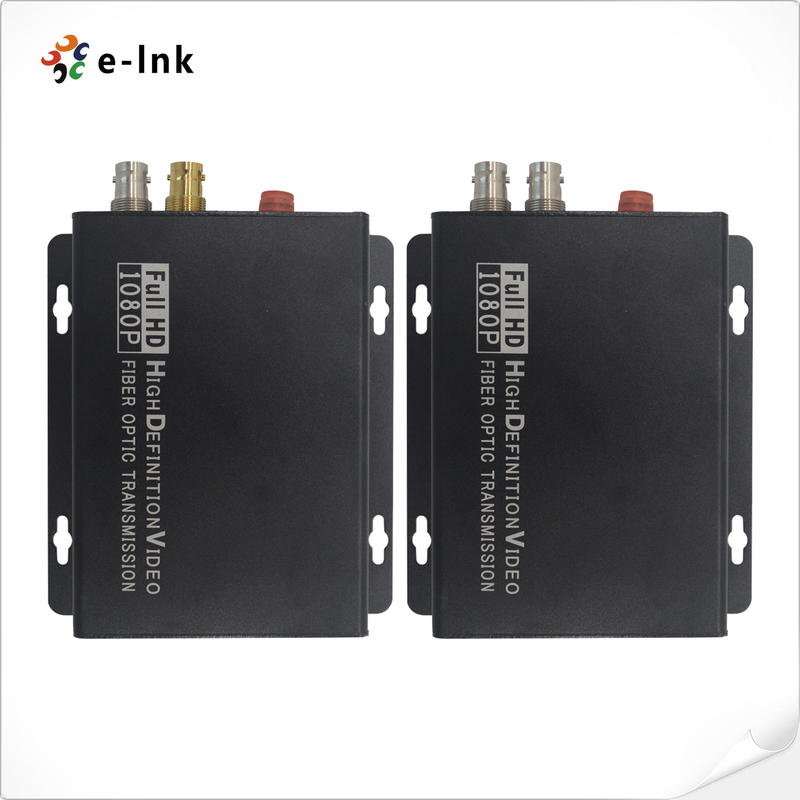

HD-SDI to Fiber Converter Overview
The LNK-HD-110 Series is a professional-grade, single-channel HD-SDI fiber optic converter engineered for high-definition video surveillance and broadcast applications. This compact solution seamlessly transmits embedded-audio HD-SDI video signals and bidirectional RS422/RS485 control data over single-mode or multi-mode fiber optic cable, ensuring zero-loss, long-distance signal integrity.
Featuring a built-in HD-SDI loop output for local video monitoring, this converter set includes a dedicated transmitter and receiver pair, providing a complete point-to-point link for critical video transport. Designed to eliminate electromagnetic interference (EMI) and signal degradation common in copper-based systems, it delivers pristine, uncompressed video quality for mission-critical operations.
Ideal for security monitoring, broadcast contribution links, and industrial visualization, the LNK-HD-110 Series enables reliable connectivity over distances far exceeding standard coaxial cable limitations. Its robust performance makes it the perfect choice for extending high-definition video feeds in CCTV systems, traffic control centers, stadiums, and other demanding environments where signal fidelity and reliability are paramount.
HD-SDI to Fiber Converter Technical Indexes
|
Fiber Optical interface
|
|
Fiber interface
|
Simplex FC
|
|
Transmission distance
|
550m-20Km
|
|
Wavelength
|
1310nm/1550nm
|
|
Video
|
|
Video interface
|
BNC
|
|
Video input/output impedance
|
75Ω
|
|
Video input/out put voltage
|
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
|
|
Video Bits Rate
|
Max 3.2Gb/s
|
|
Differential gain (10%～90% APL)
|
<1%
|
|
Video SDI standard
|
270Mbps(SD-SDI), SMPTE259M
|
|
1.485Gbps/M(HD-SDI), SMPTE292M
|
|
Data
|
|
Physical interface
|
Industrial standard screw terminal
|
|
Data type
|
RS422/RS485 Reverse Direction
|
|
Frequency/Rate support
|
Max. 115200bps for RS422
Max. 57600bps for RS485
|
|
BER
|
<10ˉ9
|
|
Electrical
|
|
Power adaptor
|
DC 5~25V
|
|
Power consumption
|
<5W
|
|
LED Indicator
|
|
P/S
|
Power Supply
|
|
DAT
|
Data
|
|

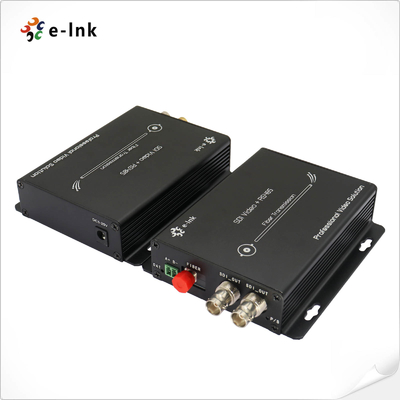

Mechanical
|
|

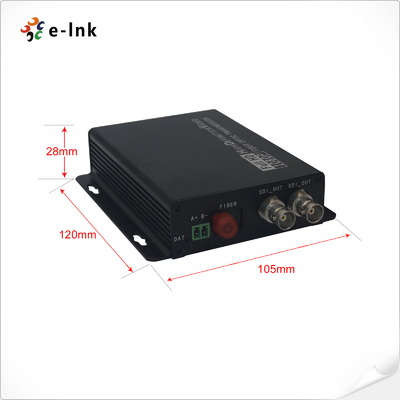

Dimensions (LxWxH)
|
120 x 105 x 28 mm
|
|
Weight
|
0.43KG/pair
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
Wall-mount
|
|
Environmental
|
|
Working Temperature
|
-20℃～+70℃
|
|
Storage Temperature
|
-40℃～+80℃
|
|
Working Humidity
|
0~95%
|
|
MTBF
|
≥100000 hours
|
HD-SDI to Fiber Converter Ordering Information
| Item |
Description |
|
| LNK-HD-110-20 |
HD-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
