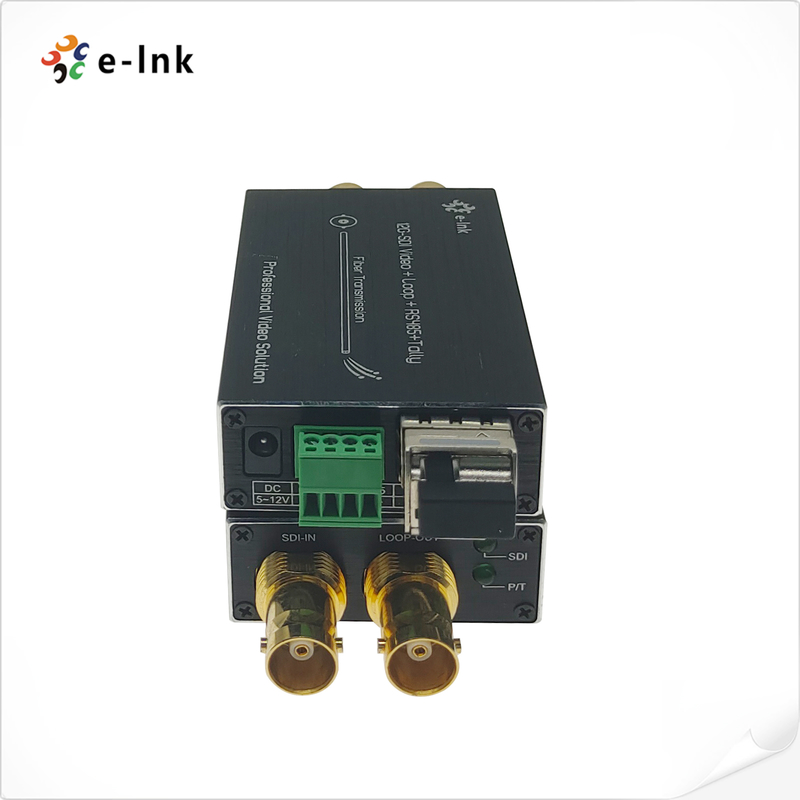

Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control

Large Image : Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-M12G-1V1T1D Series
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$359-$399
Packaging Details:	12G SDI Fiber Transmitter Receiver Standard Export Package
Delivery Time:	3-5 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/per month

Contact Now

Detailed Product Description

Input:	1 X 12G-SDI On BNC	Supported Resolution:	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution Range:	3840*2160@60Hz	Data Type:	Backward RS485
Power:	5-15 VDC	Dimensions (LxWxH):	80 X 40 X 20 (mm)
Highlight:	Tally SDI Video Over Fiber Converter , RS485 SDI Video Over Fiber Converter , Wholesale SDI Video Over Fiber Converter

Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control

Overview

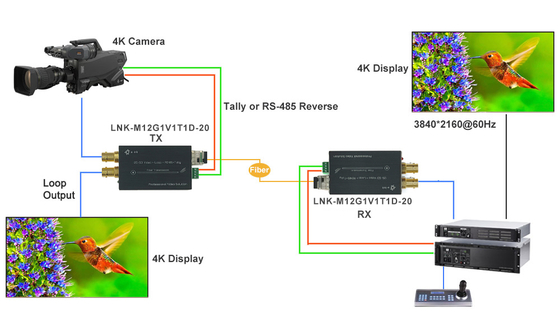

The LNK-M12G-1V1T1D is a miniature 12G-SDI fiber converter built for broadcast, live

production, and OB vans. Supporting 12G/6G/3G/HD/SD-SDI, it enables real-time 4K UHD video

with embedded 8-channel audio to be transmitted over fiber up to 20km or more. With Tally signal

and RS485 backward channel, it ensures smooth studio-to-camera communication. Its palm-sized

design, low power (2W), and hot-plug support make it an ideal solution where space and reliability

are critical.

Features

Ultra-compact (80×40×20mm), lightweight mini converter

Supports 12G/6G/3G/HD/SD-SDI with embedded 8-channel audio

4K60 UHD transmission with broadcast-grade uncompressed quality

1× 12G-SDI loop-out for local monitoring

1× LC fiber port with up to 20km reach (80km optional)

Backward Tally & RS485 for camera return signals and control

Reclocking & cable equalization for stable signal integrity

Wide temperature tolerance: -40℃ to +85℃

Low power consumption, just 2W

Hot swap & plug-and-play ready

Technical Indexes

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible with DVB-ASI and AES10 (MADI)
Input	1 x 12G-SDI on BNC
Output	1 x LC optical fiber
Output	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤70m@12G SDI Belden 1694A
Data type	Backward Tally
Data type	Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Power	5-15 VDC
Power Consumption	2 W (Max.)
Dimensions (LxWxH)	80 x 40 x 20 (mm)
Storage Temperature	-40℃～80℃
Operating Temperature	-40℃～85℃

Ordering Information

Model	Description
LNK-M12G-1V1T1D-20	Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
