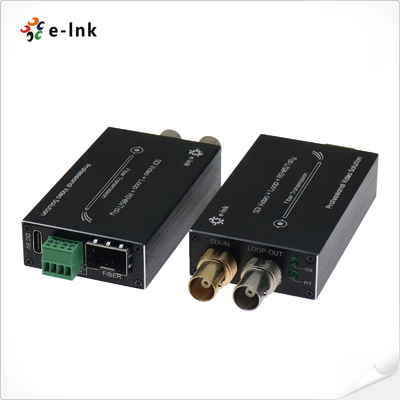

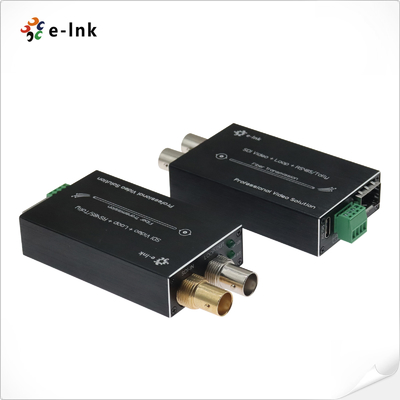

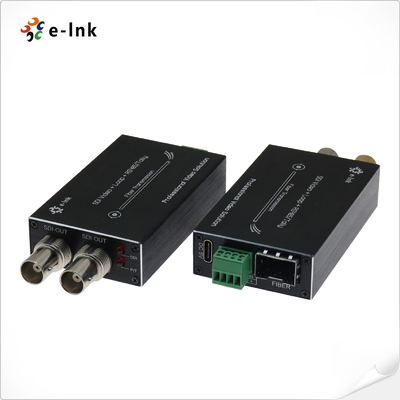

Multifunctional Mini 3G/HD-SDI Fiber Optic Converter, Supports Video, Audio and Reverse Signals

Large Image : Multifunctional Mini 3G/HD-SDI Fiber Optic Converter, Supports Video, Audio and Reverse Signals

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-M3G-1V

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Mini 3G/HD-SDI Fiber Optic Converter Standard Export Package
Delivery Time:	2-7working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Transmission Distance:	550m-20Km	Wavelength:	1310nm/1550nm
Power Consumption:	<5W	Dimensions (LxWxH):	73 X 44 X 17 Mm
Power Adaptor:	DC 5V	Data Type:	Tally & Reverse RS485

Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485

Overview

Mini 3G/HD-SDI fiber converter supports 1 channel 3G/HD-SDI video (with audio embedded), Tally signal and reverse RS485 signal transmission via optical fiber, and can output local monitoring signal via 3G/HD-SDI loop. E-link 3G/HD-SDI video fiber converter includes a transmitter and a receiver, supporting the transmission of 1080P 3G/HD-SDI signals.

Features

► Each channel includes 8-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► super optic dynamic range and free of adjustment;

► 1470~1610nm CWDM wavelengths optional;

► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface	Industrial standard screw terminal
Data type	Tally & Reverse RS485
Frequency/Rate support	Max. 115200bps for RS422 Max. 57600bps for RS485
BER	<10ˉ⁹
Electrical
Power adaptor	DC 5V
Power consumption	<5W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	73 x 44 x 17 mm (TX) 73 x 44 x 17 mm (RX) 185 x 132 x 100 mm (Package)
Weight	75g (TX) 75g (RX) 450g (Package)
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

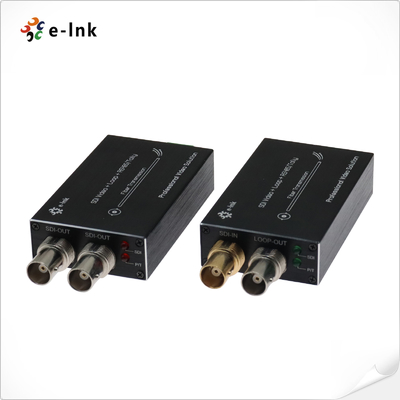

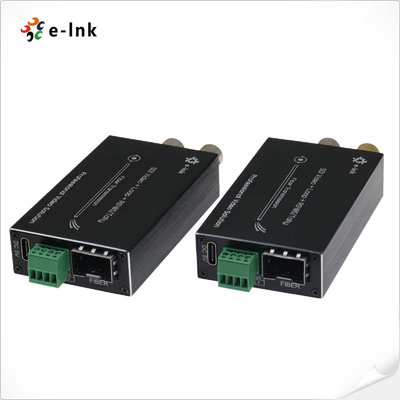

Interface & LED

Ordering Information

Model	Description
LNK-M3G-1V-MM	Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-1V-20	Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V-40	Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

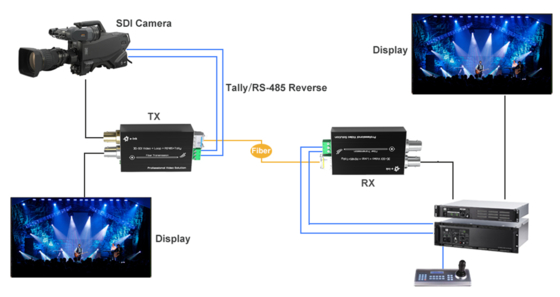

Application
