Industrial Serial to Fiber Converter, RS232 RS485 RS422, 80km Single Mode Support

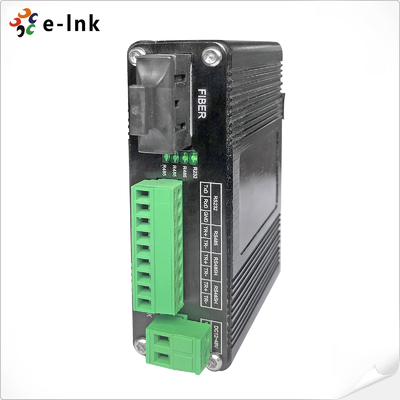

Large Image : Industrial Serial to Fiber Converter, RS232 RS485 RS422, 80km Single Mode Support

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ROHS,FCC,CE
Model Number:	LNK-IRS93 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Serial To Fiber Optic Media Converter Standard Export Package
Delivery Time:	2-7 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	500pcs/month

Contact Now

Detailed Product Description

Fiber Connector:	SC Standard, ST/FC/LC Optional	Power Supply:	DC 12-48V
Power Rate:	<5W	Operating Temperature:	-25°C To 75°C
Dimensions:	95(L)70(W)29(H) Mm	Weight:	0.25KG/pcs

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem

Overview

Industrial RS232/RS485/RS422 to Fiber Optic Converter enables reliable long-distance serial

communication over multimode (up to 2km) or single-mode fiber (up to 80km).

This converter eliminates electromagnetic interference, ground loop issues, and lightning

damage by converting electrical signals into optical transmission. It's ideal for industrial

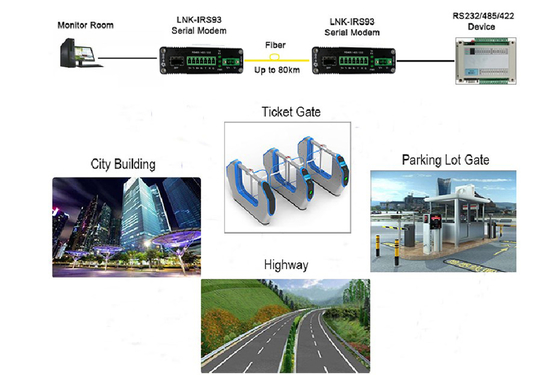

control, process automation, traffic management, and stage lighting systems.

Supports RS232, RS485, RS422, with strong isolation, stable performance, and wide

operating temperature range.

Features

► Plug-and-play, hot pluggable

► Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 80Km on SMF

► EIA /TIA standard RS232/485/422, 0~2Mbps rate

► Serial data is fully transparent, baud rate is self-adaptive, no setting is required

► The high speed serial data can used for DMX512 communication in Stage Lighting Control

► Support DIN-Rail & Wall-mount installation.

► Built-in surge and static protection

► Diagnostic and unit indicator LEDs

► Environmentally Hardened -40°C to 75°C (-40°F to 176°F) operating temperature

Technical Indexes

Model	LNK-IRS93 Series
Fiber Connector	SC standard, ST/FC/LC optional
Fiber Distance	50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Interface	Industrial Terminal
Signal Ports	1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422
Standard	EIA /TIA RS232/485/422
Serial Distance	RS232: 15 meters, RS485/422: 1000 meters
Rate	Max 2Mbps
RS-232	TXD, RXD, GND - Bi-directional
RS-485	D+, D-, GND - Bi-directional
Power Supply	DC12~48V
Power rate	<5W
Static protection	15KV electric static discharge (ESD) protection
Surge protection	1500W/sec surge protection
Operation Temperature	-25°C to +75°C
Storage Temperature	-40°C to +85°C
Storage Humidity	5%~90% non-condescending
Dimensions	95(L)70(W)29(H) mm
Weight	0.25kg/pcs

Ordering Information

Model	Description
LNK-IRS93-SFP	Industrial Serial RS232/RS485/RS422 with SFP port
LNK-IRS93-SCMM	Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m
LNK-IRS93-SC20	Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20km

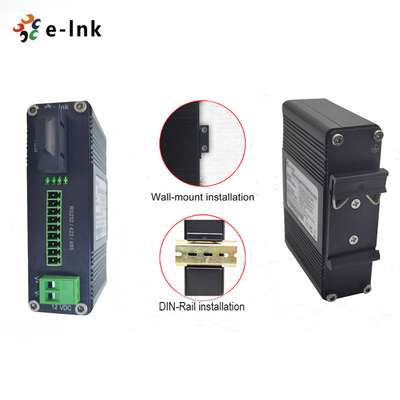

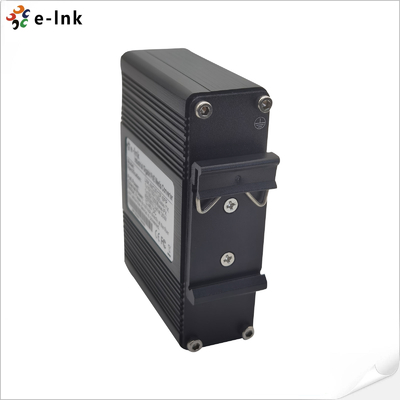

Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
