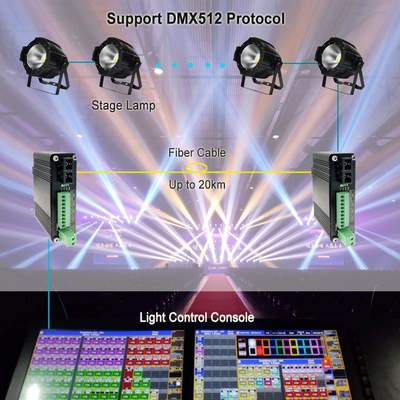

Industrial Serial RS232 RS485 RS422 Fiber SC Media Converter Modem Single Mode 20KM

Industrial Serial RS232 RS485 RS422 Fiber SC Media Converter Modem Single Mode 20KM
Fiber Optical Modem Package Content

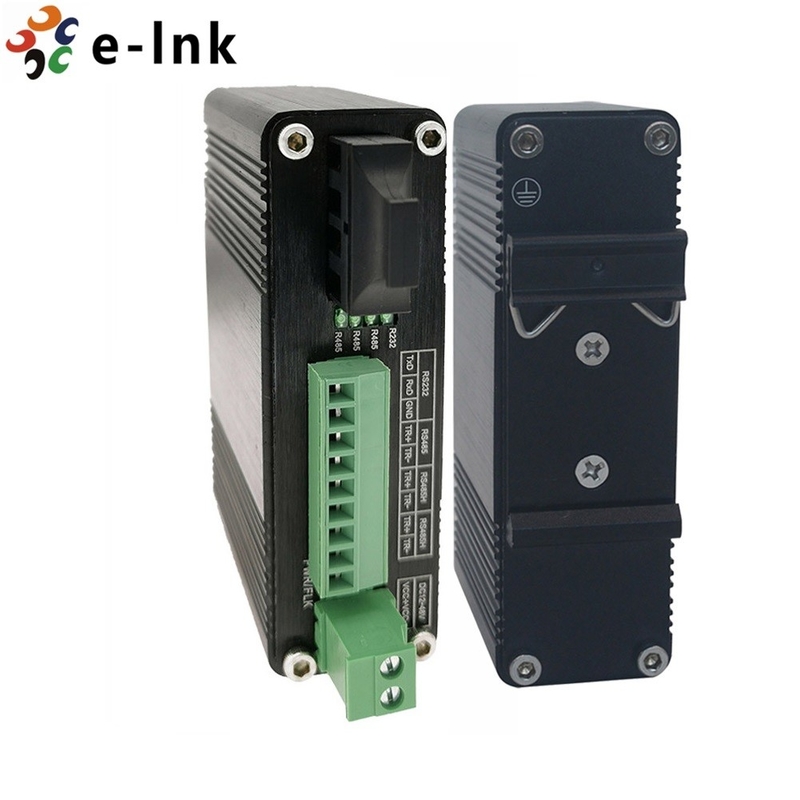

► LNK-IRS93 Series Fiber Optic Modem x 1
► Quick Start Guide x 1

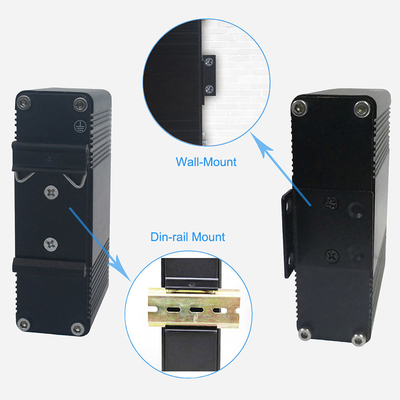

► L-shaped wall mount bracket x 1

Industrial Media Converter Installation

SC/ST Fiber Optic Port Connection (SC default, ST optional)

The concept behind the SC/ST port and cable is straightforward. Suppose you are connecting devices I and II. Contrary to electrical signals, optical signals do not require a circuit in order to transmit data. Consequently, one of the optical lines is used to transmit data from device I to device II, and the other optical line is used transmit data from device II to device I, for full-duplex transmission.
All you need to remember is to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. If you make your own cables, we suggest labeling the two sides of the same line with the same letter (A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2).

ATTENTION:
1.This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the laser beam.
2.The above text is for dual fiber port connection only; if for single fiber port connection, just using 1 fiber cable for connection, not need to tell Tx or Rx side.
