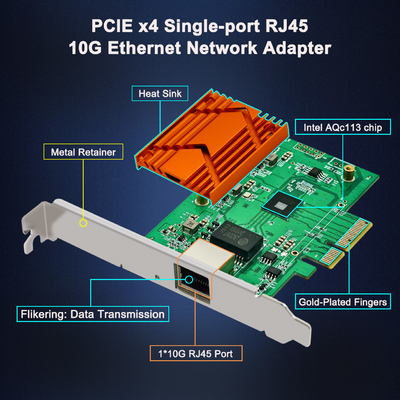

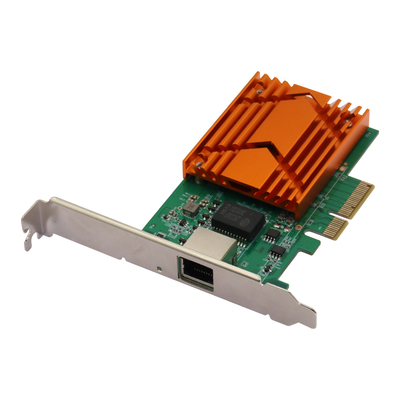

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Overview
The LNK-NIC-10GE is a high-performance, single-port 10 Gigabit Ethernet network adapter based on
the xxx chipset, delivering ultra-fast connectivity for client and enterprise systems. Designed for flexibility,
it supports PCIe x4, x8, and x16 slots while integrating MAC and PHY for power and space efficiency.
Multi-Rate Support: Compatible with 10G/5G/2.5G/1G/100M Ethernet (IEEE 802.3an & 802.3bz
compliant).
Extended Reach: Achieves 10Gbps over Cat 6a (100m), 5Gbps over Cat 5e/Cat 6, and
backward compatibility with legacy networks.
Optimized Performance: Supports MSI, MSI-X, LSO, RSS, and IPv4/IPv6 checksum offload to
reduce CPU overhead.
Large Data Frame Handling: Supports jumbo frames up to 16KB for high-throughput applications.
Ideal for data centers, high-speed workstations, and enterprise networks, the LNK-NIC-10GE ensures
low-latency, high-efficiency networking with broad compatibility and robust performance.
Features
► PCIE x 4 Hardware Interface.
► Support systems: Windows, Linux, Ubuntu, etc
► Windows 7/8/8.1/10
► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
► Linux Stable Kernel version 2.6.32/3.x/4.x or later
► Linux CentOS/RHEL 6.5 / 7.x or later
► Ubuntu 14.x/15.x/16.x or later
► VMware ESX/ESXi 4.x/5.x/6.x or later
► 10/100/1000M/2.5G/5G/10Gbps data rate
► Jumbo frame support up to 16 KB.
► Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
► MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.

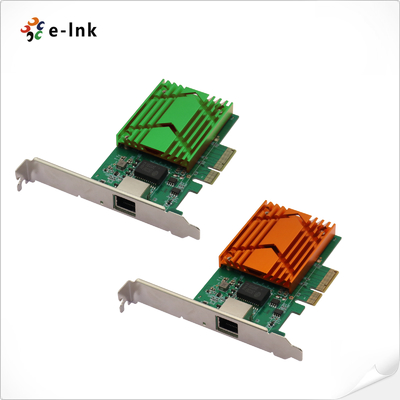

► Brown and Green color optional
Tecnical Indexes
| Transimission Medium |
Copper |
| Copper Type |
10GBase-T:Cat 7 or higher up to 30m
5GBase-T:Cat 7 or higher up to 30m
2.5GBase-T:Cat 6A or higher up to 100m
1GBase-T:Cat 6 or higher up to 100m
100MBase-T:Cat 6 or higher up to 100m
|
| Baffle Height |
Half & Full height |
| Power Consumption |
4.7W |
| OS Support |
Windows 7/8/8.1/10
Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
Linux Stable Kernel version 2.6.32/3.x/4.x or later
Linux CentOS/RHEL 6.5 / 7.x or later
Ubuntu 14.x/15.x/16.x or later
VMware ESX/ESXi 4.x/5.x/6.x or later
|
| Bus Type |
PCIe v3.0 x4,compatible with x8, x16 |
| Data rate per port |
10/100/1000M/2.5G/5G/10Gbps data rate |
| Connector |
1*10G RJ45 |
| Standards compliant |
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
IEEE 802.3bz 2.5/5GBASE-T
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.1Q VLANs
IEEE 802.3x Full Duplex and flow contro
IEEE 802.3az -
Energy Efficient Ethernet (EEE)
|
| iSCSI |
No |
| WoL |
No |
| Jumbo Frames |
Yes |
| DPDK |
Yes |
| PXE |
Yes |
| FCoE |
No |
| Operating Temperature |
0℃ to 55℃ (32℉ to 131℉) |
| Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35℃ |
| Size |
125 x 125 x 20 mm |
| Weight |
90g |
| LED indication |
Power: Light on when power on;
LNK/ACT: Light on when connected, light blinks when transfer data.
|
Ordering Information
| Model |
Description |
| LNK-NIC-10GE |
PCIE x4 Single-port RJ45 10G Ethernet Network Adapter |
