IP67 Waterproof 1-in 1-out 90W Industrial Gigabit PoE Extender

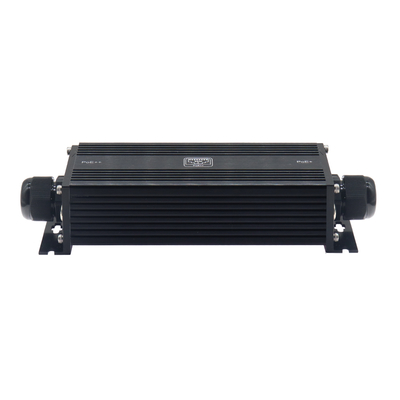

Large Image : IP67 Waterproof 1-in 1-out 90W Industrial Gigabit PoE Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-WP-IPE101

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Industrial Gigabit PoE Extender Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Wireless Powerline Adapters	PoE Standard:	IEEE 802.3af/at/bt
Protection Level:	Protection Level IP 67	Casing:	Aluminum Case
Weight:	0.6 Kg	Size:	195 X 75 X 46 Mm

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1x Output)

overview

The LNK-WP-IPE101 is a rugged, IP67-rated Gigabit PoE extender designed for demanding

environments. It delivers high-speed 1000Mbps Ethernet transmission over distances up to 100 meters

while supplying 50-57V standard PoE power (up to 90W) to connected devices.

Built with an industrial-grade housing and waterproof terminals, this extender operates reliably in extreme

temperatures (-40°C to 80°C), making it ideal for outdoor and harsh applications. Its robust design

ensures uninterrupted performance in security surveillance, industrial networks, and other critical

installations.

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter

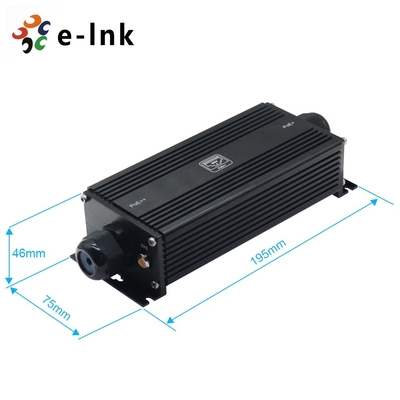

Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Features

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 1 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

3-Grade Cascading Diagram

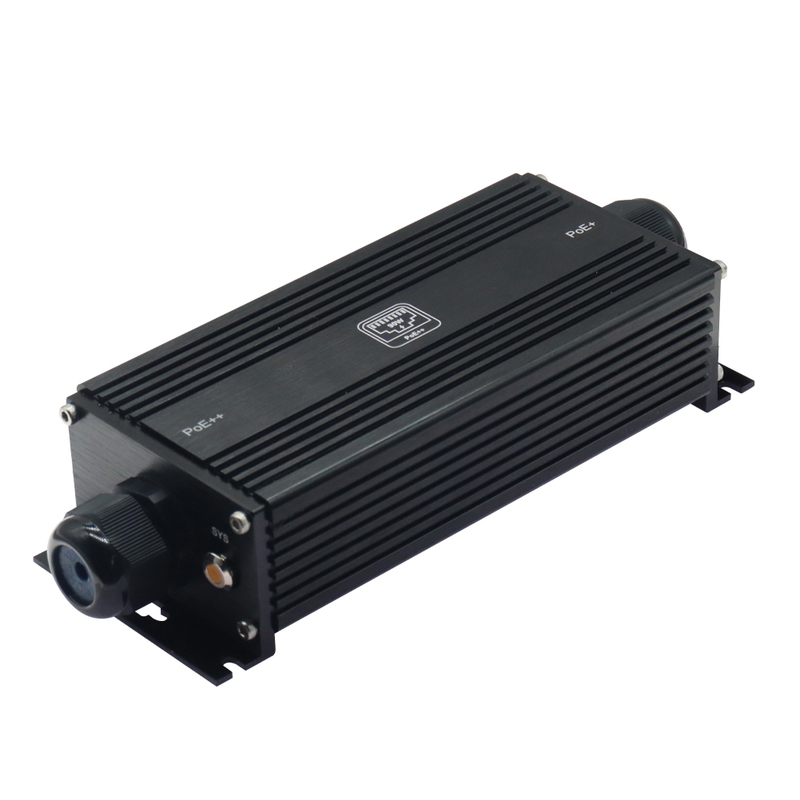

IP67 Waterproof 1-in 1-out 90W Industrial Gigabit PoE Extender 0

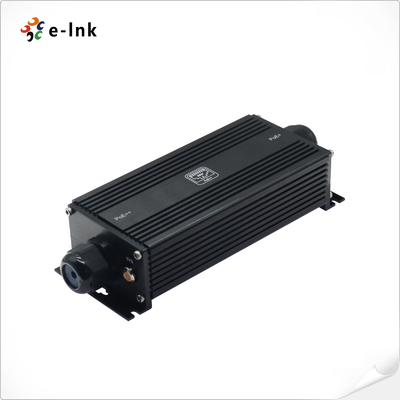

IP67 Waterproof 1-in 1-out 90W Industrial Gigabit PoE Extender 1

IP67 Waterproof 1-in 1-out 90W Industrial Gigabit PoE Extender 2

Ordering Information

Model	Description
LNK-WP-IPE101	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Mounting Options	Wall Mount Bracket is included.
