IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender

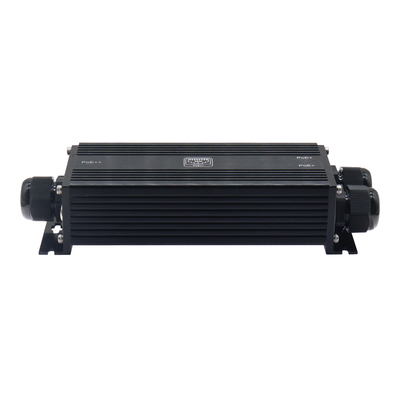

Large Image : IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-WP-IPE102

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Industrial Gigabit PoE Extender Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Wireless Powerline Adapters	PoE Standard:	IEEE 802.3af/at/bt
Protection Level:	Protection Level IP 67	Casing:	Aluminum Case
Weight:	0.6 Kg	Size:	195 X 75 X 46 Mm

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

overview

The LNK-WP-IPE102 is a rugged, industrial-grade Gigabit PoE extender designed to deliver high-speed

1000Mbps Ethernet transmission over distances of up to 100 meters. Leveraging Power over Ethernet

(PoE) technology, it provides a stable 50-57V power supply to connected devices, eliminating the need

for additional power sources.

Built to withstand harsh environments, this extender features an IP67-rated waterproof housing and

industrial-grade terminals, ensuring reliable operation in extreme temperatures ranging from -40°C to

80°C. Its 1-in, 2-out port configuration allows flexible deployment while supporting high-power PoE

output (up to 90W), making it ideal for demanding applications such as:

Security & surveillance systems
Industrial network infrastructure
Outdoor and harsh-environment deployments

With robust construction and extended transmission capabilities, the LNK-WP-IPE102 is an efficient solution for expanding network coverage in challenging conditions.

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter

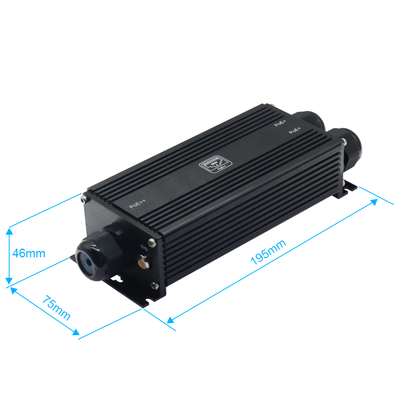

Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Application

IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender 1

3-Grade Cascading Diagram

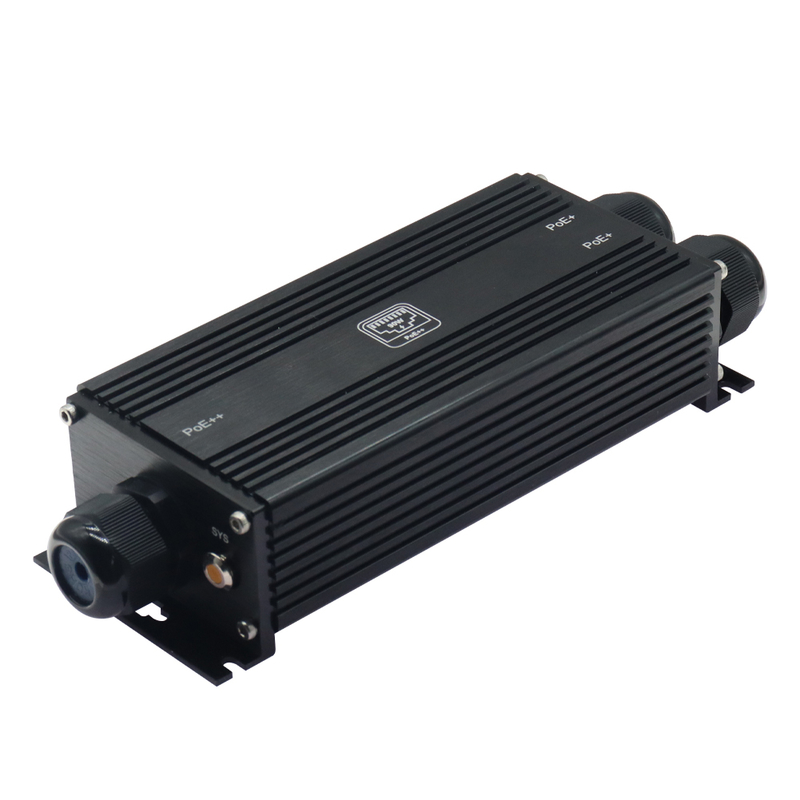

IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender 2

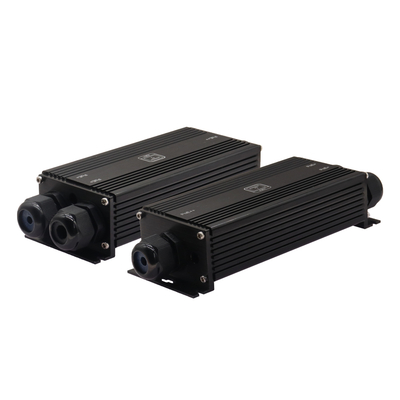

IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender 3

IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender 4

Ordering Information

Model	Description
LNK-WP-IPE102	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Mounting Options	Wall Mount Bracket is included.
