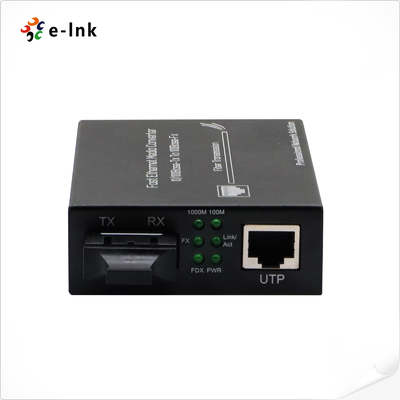

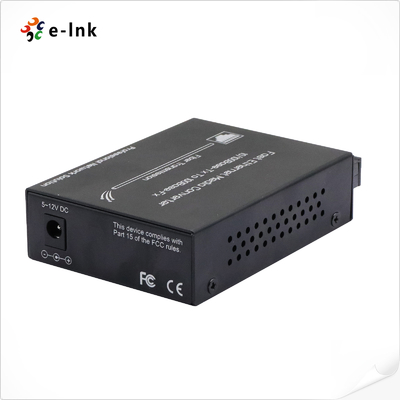

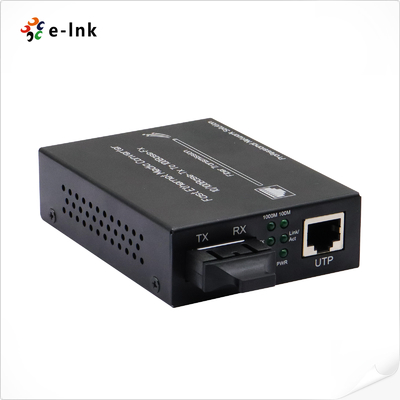

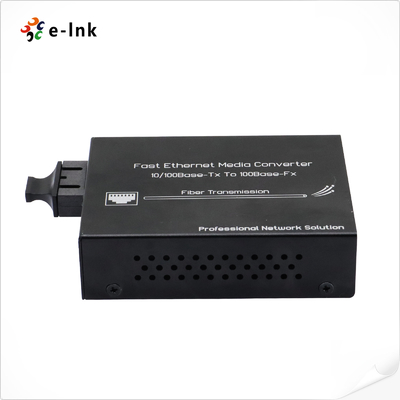

Product Description:
The LNK-1100 Series Ethernet Media Converter seamlessly converts between 10/100Base-TX
copper and 100Base-FX fiber networks, extending transmission distances from 100m (copper) to
120km (fiber). It supports multi-mode dual fiber, single-mode dual fiber, and single-mode single
fiber configurations for flexible deployment in diverse network environments.
Key Improvements:
- More concise while keeping all key technical details
- Clearer structure for quick readability
- Stronger emphasis on the product's value (distance extension & fiber flexibility)
Features:
Auto-sensing full/half duplex operation
Automatic MDI/MDI-X crossover
Extended VLAN packet support
QoS prioritization for VoIP and critical data
Supports multiple fiber configurations:
• Single-mode dual fiber
• Multi-mode dual fiber
• Single-mode single fiber
Advantages:
✓ Plug-and-play installation
✓ Future-proof SFP compatibility
✓ Optimized for high-priority traffic
✓ Flexible deployment options
Ideal for extending network reach while maintaining reliable performance for voice, video and data
transmission.
Technical Indexes:
| Parameter |
Specifications |
| Access mode |
10/100Mbps |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
| Wavelength |
850nm/1310nm/1550nm |
| Transmission distance |
Dual-fiber multi-mode: 2 km;
Dual-fiber single mode: 20/40/60/80/100/120 km;
Single fiber single mode: 20/40/60/80/100 km
Category-5 twisted pairs: 100m
|
| Port |
One RJ45 port: for connecting STP/UTP category-5 twisted pairs
One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm)
Single mode, dual fiber: SC or FC (9/125μm)
Single mode Single fiber: SC or FC (9/125μm)
|
| Conversion means |
Store and Forward mode or Cut-Through mode |
| Buffer space |
Built in 128Kb RAM for data buffer |
| Flow control |
Full duplex: flow control;
Half duplex: back pressure
|
| BER |
<19-9 |
| MTBF |
100,000 hours |
| LED indicator |
POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
| Power supply |
DC 5V / 1A |
| Power consumption |
<40W (the chassis at full load), <2W |
| Operating temperature |
-10~55ºC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 90% non-condensing |
| Dimensions (W x D x H) |
71 x 94 x 26 mm |
Packing and Shipping:
Fiber Ethernet Media Converter Packaging and Shipping
Our Fiber Ethernet Media Converter is carefully packaged to ensure safe and secure delivery to our
customers. Each unit is placed in a sturdy cardboard box with ample cushioning material to prevent
any damage during transit. The packaging also includes a user manual and necessary cables for easy
installation.
We offer various shipping options to meet the needs of our customers. For domestic orders, we use
reliable courier services such as DHL, UPS, and FedEx. For international orders, we offer both air and
sea freight options. Our logistics team works diligently to ensure timely and efficient delivery of our
products to our customers worldwide.
Our packaging and shipping processes are in compliance with international standards to ensure the best
possible customer experience. We also provide tracking information for all orders, allowing customers to
monitor the status of their shipment at any time.
At Fiber Ethernet Media Converter, we strive to provide top-quality products and services to our
customers. We are committed to ensuring that our products reach our customers in excellent condition
and in a timely manner. Thank you for choosing our product.
Ordering Information:
| Item |
Description |
| LNK-1100 |
10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
| LNK-1100S-20 |
10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-S1100-20 |
10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
