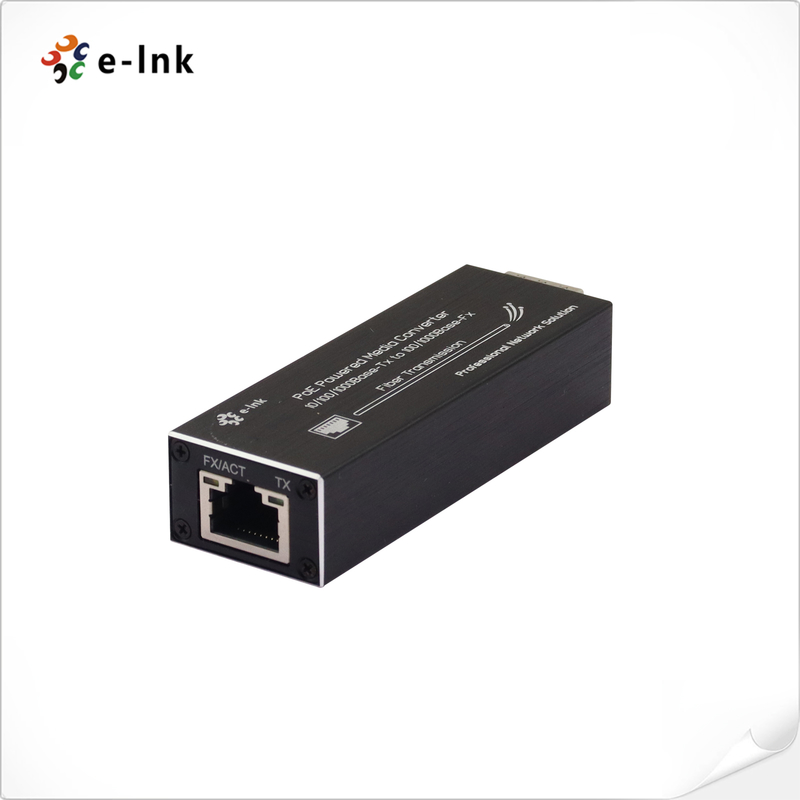

Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function

Large Image : Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function

Product Details:

Place of Origin:	Guangdong
Brand Name:	E-link
Certification:	CE FCC RoHS
Model Number:	LNK-M3011PD-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Please contact seller
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Contact Now

Detailed Product Description

Product Name:	Ethernet Media Converter	Power Supply:	DC 5~18V
Dimension:	78 X 27 X 18 Mm	Fiber Port:	SFP - 100/1000M Adaptive
Weight:	46g	Power:	3W

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

LNK-M3011PD-SFP compact converter bridges copper and fiber networks, supporting:

Copper (RJ-45): 10/100/1000Base-T
Fiber (SFP): 100/1000Base-SX/LX

Key Features:

Extends range from 100m (copper) to 120km (fiber)
Supports multi/single-mode fiber (dual/single strand)
IEEE 802.3/u/z/ab compliant
Plug-and-play operation

Ideal for extending network reach with seamless media conversion.

(Word count reduced by ~50% while retaining all key technical specifications and benefits)

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	SFP - 100/1000M adaptive
Wavelength	850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance	Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V (Type-C) Or Powered by IEEE802.3at PoE Injector / PoE Switch
Power consumption	<3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Weight	46g
Dimensions (W x D x H)	78 x 27 x 18 mm

Ordering Information

Model

Description

LNK-M3011PD-SFP

Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Fiber Media Converter with PoE Powered Function, not including SFP module, standalone, external power adaptor

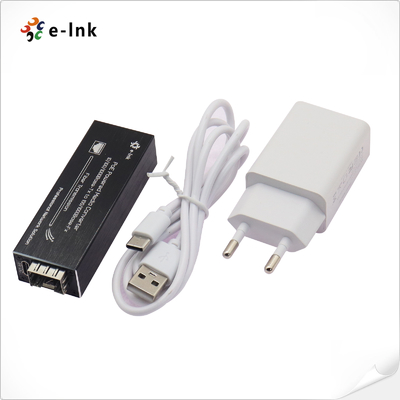

Power Options

5V Power supply adapter included, with USB Type-C cable;

Also support powered by IEEE802.3at PoE Injector / PoE Switch

Features

Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function 0

Overview

Micro 0/100/1000Mbps adaptive Gigabit Ethernet media converter with PoE Powered Function 1
