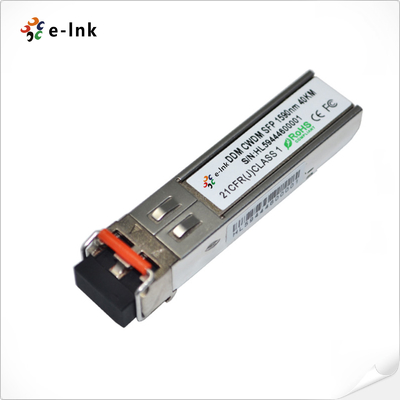

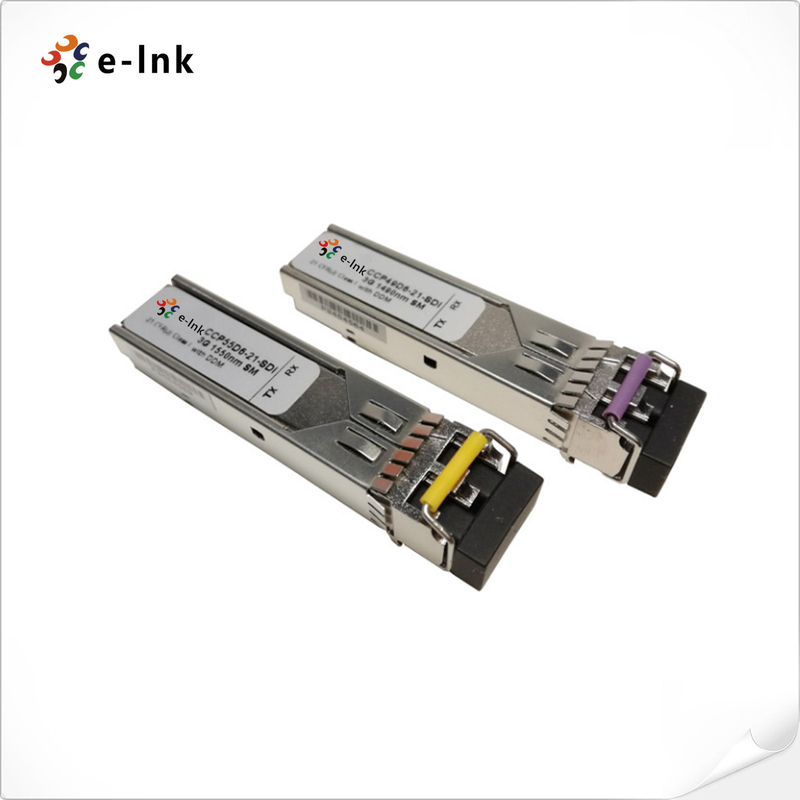

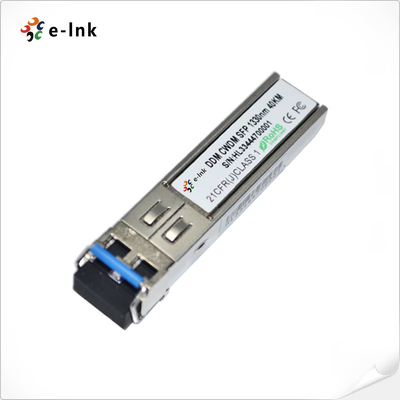

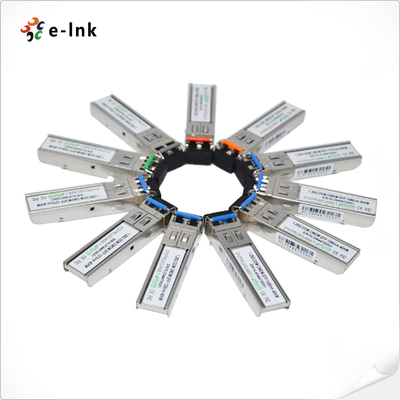

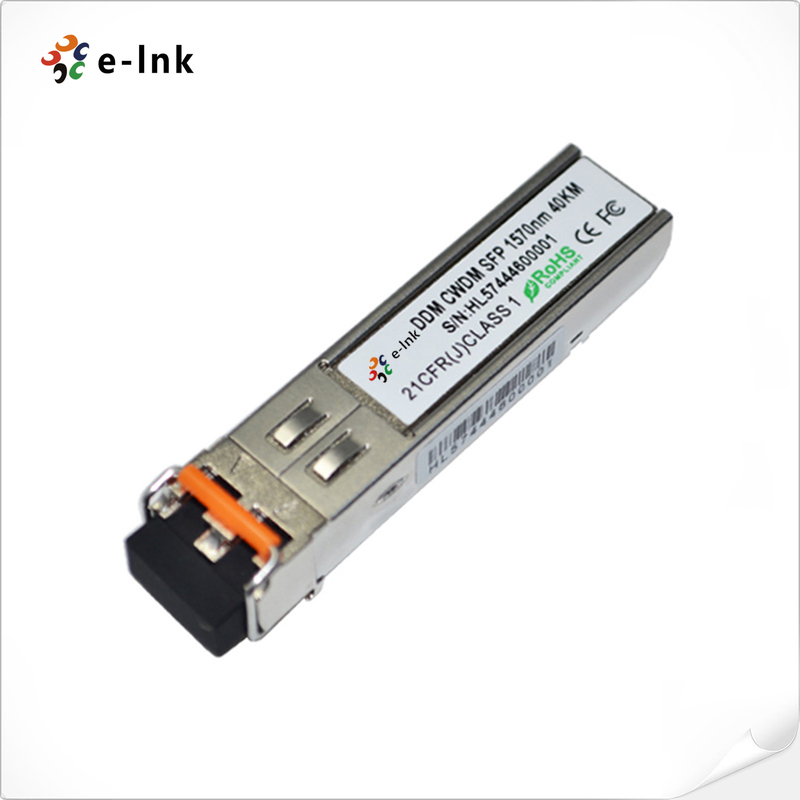

HD-SDI CWDM 1270~1610nm 80km Digital Video SFP Optical Transceiver (MSA)
SDI Video SFP Module Advantages
► SMPTE 297-2006 Compatible Features
► Speed from 50 Mbps to 1.485 Gbps
► Distance up to 80km for HD-SDI
► Support Video Pathological Patterns for SD-SDI, HD-SDI
► 18 Wavelength CWDM DFB Transmitter
► Hot-plug gable SFP footprint
► SFP MSA compliant
► Digital Diagnostic functions available through the I2C interface
► Single +3.3V power supply
► Low Power Consumption
► RoHS compliant and Lead-Free
SDI Video SFP Module Technical Indexes
| Standards: | INF-8074i SFP (Small Form factor Plug gable) Transceiver |
| SFF-8472 Diagnostic Monitoring Interface for Transceiver | |
| SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI) | |
| SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI) | |
| SMPTE 344M-2000 540 Mbps Serial Digital Interface | |
| Wavelength | 1270~1610nm |
| Fiber Type | SMF |
| Max. Distance | 80 km |
| Optical Components | DFB/PIN |
| Transmitter Power | 0~5 dBm |
| Extinction Ratio | >9dB |
| Receiver Sensitivity | < -28 dBm |
| Receiver Overload | >-3 dBm |
| Connector | Duplex LC |
| Digital Diagnostic Monitoring (DDM) | Support as default |
| Weight | 0.025Kg |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Application | SMPTE 292M (1.485Gb/s) |
| SMPTE 259M (270/360Mb/s) | |
| HD-SDI/SD-SDI Fiber Converter | |
| High-density digital video routers & switches | |
| Broadcast cameras, HD Camera or Monitor System | |
| MTBF | > 200,000 hrs |
Industrial Ethernet Media Converter Overview
E-link LNK-CWDM-SFP1G-XX80 is high performance, cost-effective HD-SDI CWDM optical transceiver modules for long reach video transmission application over single mode fiber (SMF). It provides the data rates from 50Mbps to 1.485Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M and SMPTE 292M serial rates. It provides the maximum transmission distance of 80km over single mode fiber at 1.5Gbps pathological signals. LNK-CWDM-SFP1G-XX80 is MSA compliant and available for all 18 CWDM channels within the wavelength range of 1270nm to 1610nm, enabling customers to enhance the bandwidth of their existing video optical infrastructure without the need for additional fiber strands.
Ordering Information
| Model | Description |
| LNK-CWDM-SFP1G-2780 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-2980 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-3180 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-3380 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-3580 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-3780 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-3980 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-4180 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-4380 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-4580 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-4780 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-4980 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-5180 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-5380 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-5580 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-5780 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-5980 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 80km, LC, DDMI, MSA |
| LNK-CWDM-SFP1G-6180 | 1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 80km, LC, DDMI, MSA |
