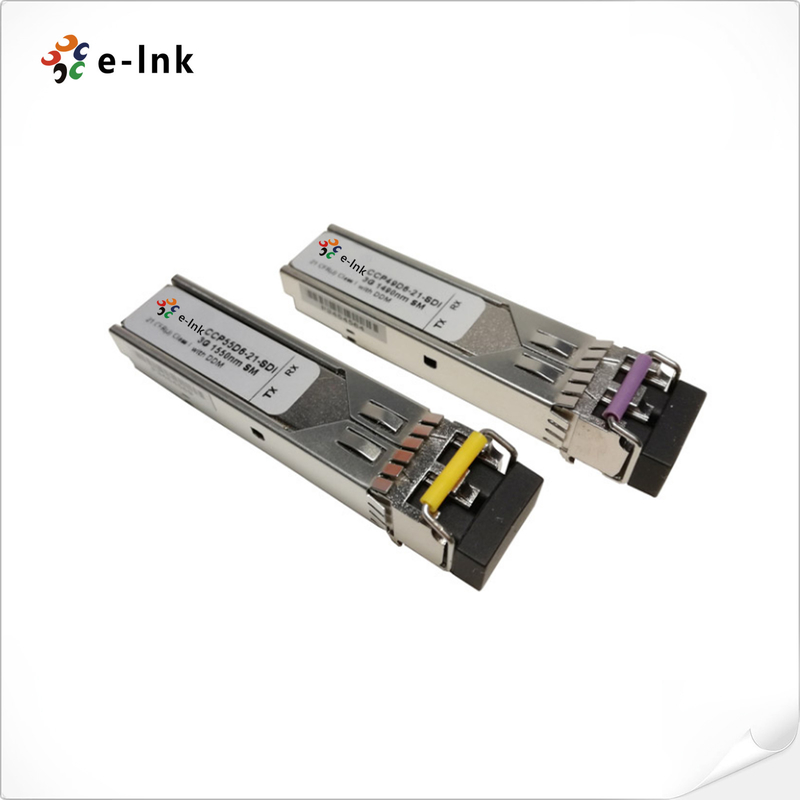

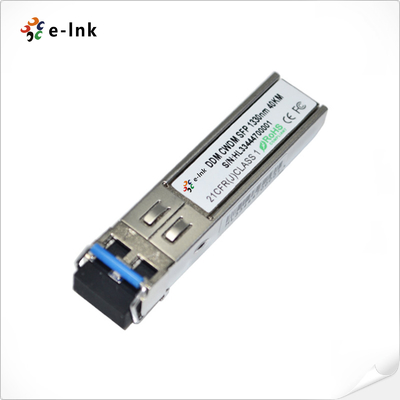

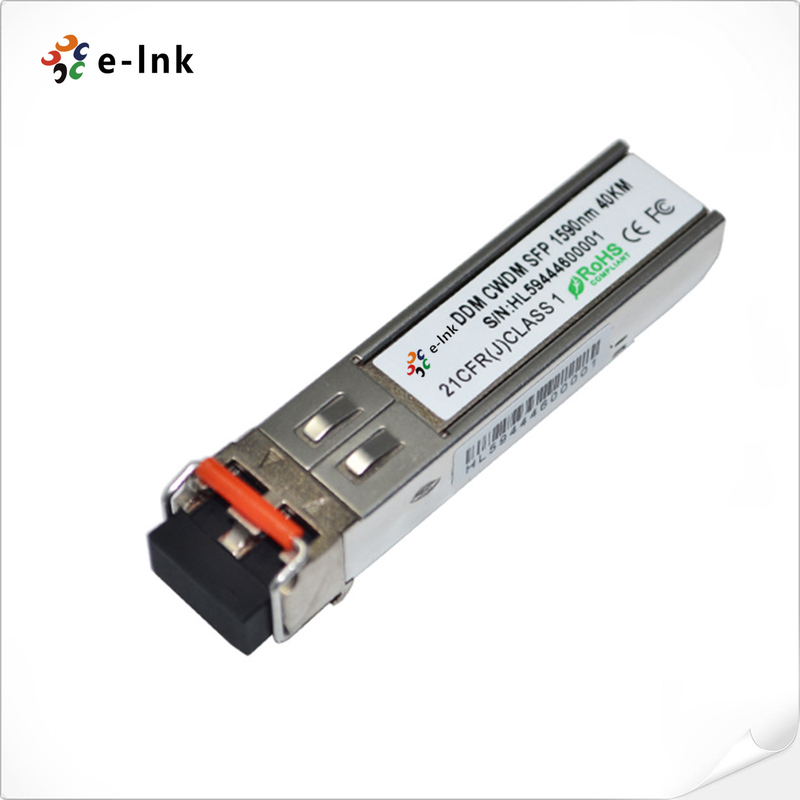

HD-SDI CWDM SFP Optical Transceiver 1270–1610nm 40km SMF DDM

Large Image : HD-SDI CWDM SFP Optical Transceiver 1270–1610nm 40km SMF DDM

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-CWDM-SFP1G-XX40
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$49-$69
Packaging Details:	SFP Optical Transceiver Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Part Number:	LNK-CWDM-SFP1G-XX40	Form Factor:	Video SFP Transceiver
Data Rate:	1.485 Gb/s	Wavelength:	1270~1610nm
Max. Distance:	40 Km	Operating Temperature:	0°C To 70°C (32°F To 158°F)
Highlight:	40km SFP Optical Transceiver , 1270~1610nm SFP Optical Transceiver , Digital Video SFP Optical Transceiver

HD-SDI CWDM SFP Optical Transceiver 1270–1610nm 40km SMF DDM

Overview

The LNK-CWDM-SFP1G-XX40 is a broadcast-grade HD-SDI CWDM optical transceiver built for

long-haul video transport up to 40km over single-mode fiber. Supporting data rates up to 1.485Gbps

and all 18 CWDM wavelengths (1270–1610nm), it delivers robust performance under SDI pathological

patterns. With hot-swappable SFP form factor, integrated digital diagnostics, and low power consumption,

it is ideal for professional broadcast links, camera systems, and video routing networks.

Features

Transmits HD-SDI up to 1.485Gbps over SMF

Supports long-distance video extension up to 40km

Fully compliant with SMPTE 259M, 292M, 344M standards

Handles SD/HD-SDI pathological test patterns reliably

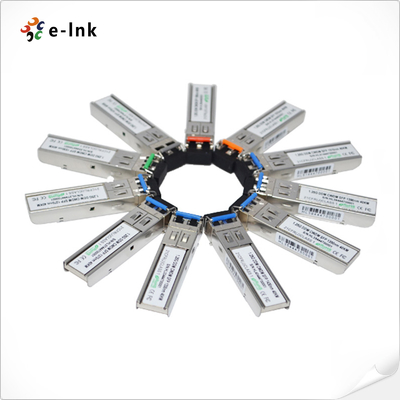

Available in 18 CWDM wavelengths (1270–1610nm)

Compact hot-pluggable SFP design with LC duplex interface

Built-in Digital Diagnostic Monitoring via I²C

Low power operation with wide 0°C ~ +70°C range

Technical Indexes

Standards:	INF-8074i SFP (Small Form factor Plug gable) Transceiver
	SFF-8472 Diagnostic Monitoring Interface for Transceiver
	SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI)
	SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI)
	SMPTE 344M-2000 540 Mbps Serial Digital Interface
Part Number	LNK-CWDM-SFP1G-XX40
Form Factor	Video SFP Transceiver
Data Rate	1.485 Gb/s
Wavelength	1270~1610nm
Fiber Type	SMF
Max. Distance	40 km
Optical Components	DFB/PIN
Transmitter Power	-5~0 dBm
Extinction Ratio	>9dB
Receiver Sensitivity	< -25 dBm
Receiver Overload	>-3 dBm
Connector	Duplex LC
Digital Diagnostic Monitoring (DDM)	Support as default
Weight	0.025Kg
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

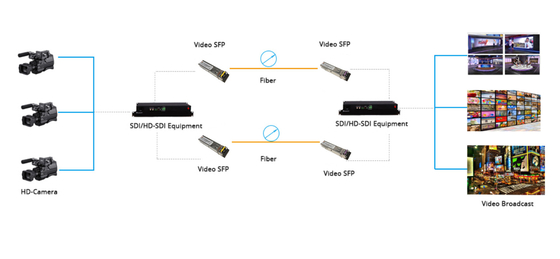

Application	SMPTE 292M (1.485Gb/s)
	SMPTE 259M (270/360Mb/s)
	HD-SDI/SD-SDI Fiber Converter
	High-density digital video routers & switches
	Broadcast cameras, HD Camera or Monitor System
MTBF	> 200,000 hrs

Ordering Information

Model	Description
LNK-CWDM-SFP1G-2740	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-2940	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3140	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3340	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3540	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3740	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3940	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4140	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4340	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4540	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4740	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4940	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5140	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5340	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5540	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5740	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5940	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP1G-6140	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 40km, LC, DDMI, MSA
