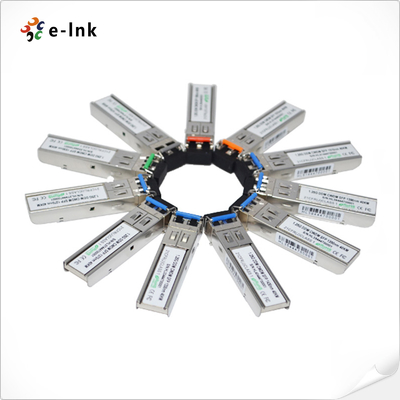

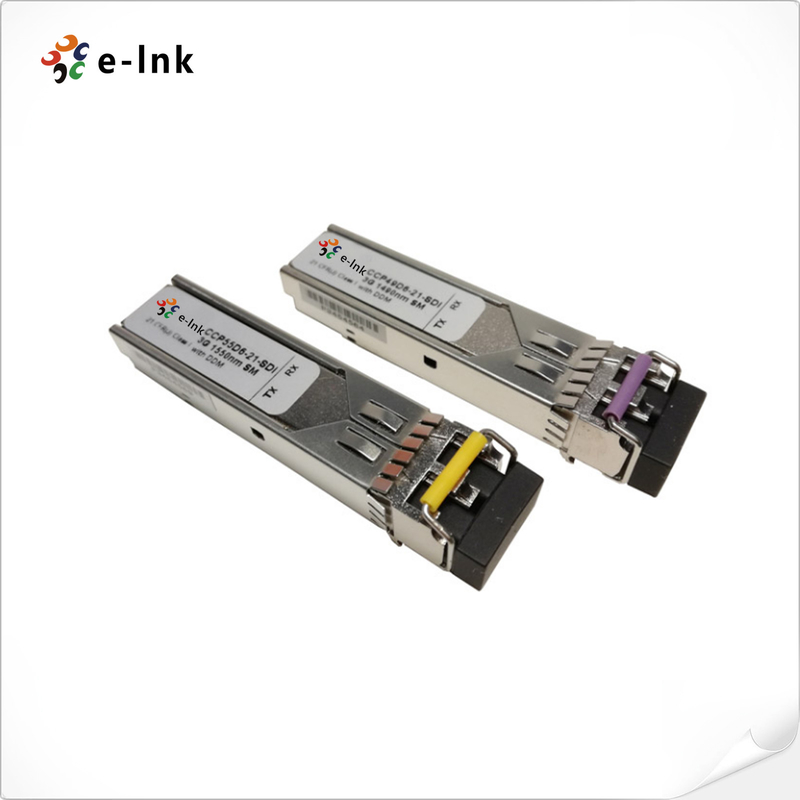

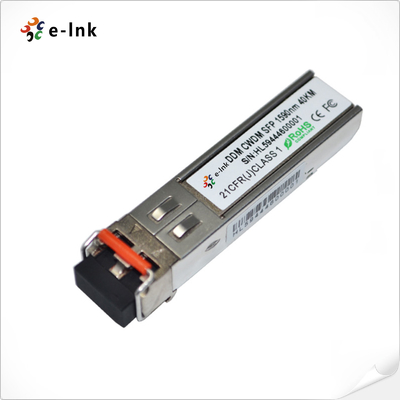

HD-SDI CWDM Optical SFP Transceiver 1270–1610nm 20km SMF DDM

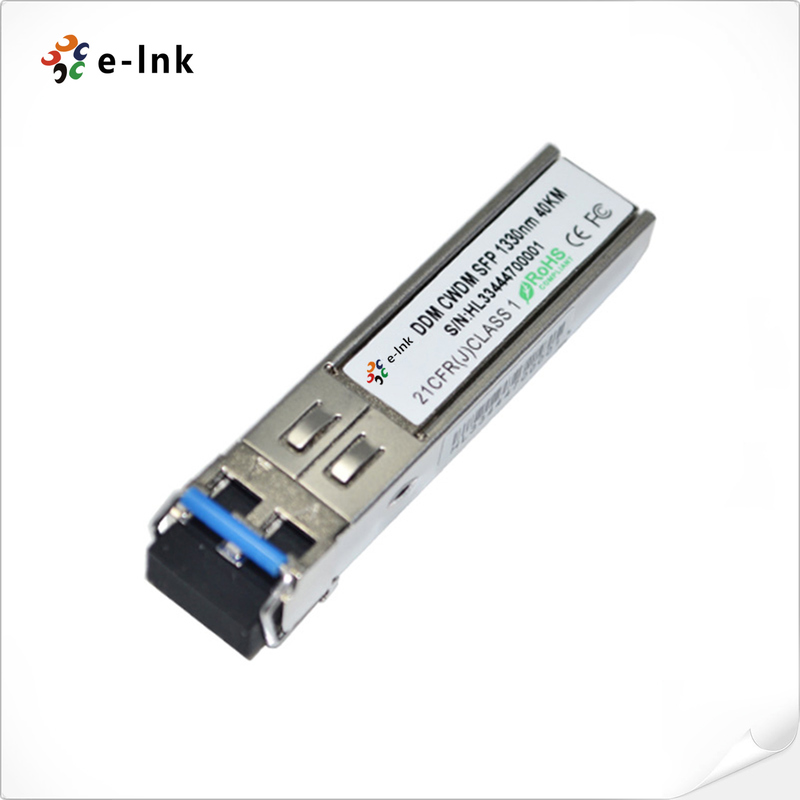

Large Image : HD-SDI CWDM Optical SFP Transceiver 1270–1610nm 20km SMF DDM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-CWDM-SFP1G-XX20
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$45-$59
Packaging Details:	SFP Transceiver Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Part Number:	LNK-CWDM-SFP1G-XX20	Form Factor:	Video SFP Transceiver
Data Rate:	1.485 Gb/s	Wavelength:	1270~1610nm
Max. Distance:	20 Km	Operating Temperature:	0°C To 70°C (32°F To 158°F)
Highlight:	20km HD-SDI SFP Transceiver , 20km SFP Optical Transceiver , HD-SDI SFP Optical Transceiver

HD-SDI CWDM Optical SFP Transceiver 1270–1610nm 20km SMF DDM

Overview

The LNK-CWDM-SFP1G-XX20 is a compact HD-SDI CWDM optical transceiver designed for

professional video transport over single-mode fiber up to 20km. Supporting 18 CWDM channels

across 1270–1610nm, it ensures stable 1.485Gbps signal transmission while handling pathological

SDI patterns with ease. Its hot-pluggable SFP design, integrated diagnostics, and low power profile

make it an ideal solution for broadcast, video routers, and high-density camera systems.

Features

Supports 50 Mbps to 1.485 Gbps transmission rates

Extends HD-SDI video over SMF up to 20km

Fully compliant with SMPTE 259M, 292M, 344M standards

Handles SD/HD-SDI pathological patterns for reliable broadcast

Available in 18 CWDM wavelengths (1270–1610nm)

Hot-pluggable SFP MSA design with LC duplex connector

Built-in Digital Diagnostic Monitoring via I²C

Operates from 0°C to +70°C with low power consumption

Technical Indexes

Standards:	INF-8074i SFP (Small Form factor Plug gable) Transceiver
	SFF-8472 Diagnostic Monitoring Interface for Transceiver
	SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI)
	SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI)
	SMPTE 344M-2000 540 Mbps Serial Digital Interface
Part Number	LNK-CWDM-SFP1G-XX20
Form Factor	Video SFP Transceiver
Data Rate	1.485 Gb/s
Wavelength	1270~1610nm
Fiber Type	SMF
Max. Distance	20 km
Optical Components	DFB/PIN
Transmitter Power	-9~-3 dBm
Extinction Ratio	>9dB
Receiver Sensitivity	< -24 dBm
Receiver Overload	>-3 dBm
Connector	Duplex LC
Digital Diagnostic Monitoring (DDM)	Support as default
Weight	0.025Kg
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

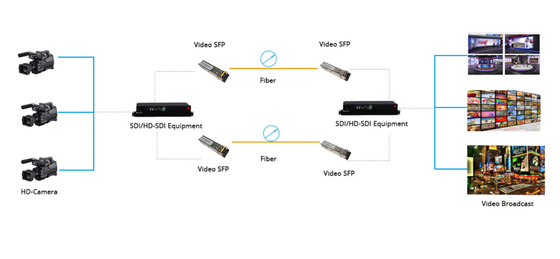

Application	SMPTE 292M (1.485Gb/s)
	SMPTE 259M (270/360Mb/s)
	HD-SDI/SD-SDI Fiber Converter
	High-density digital video routers & switches
	Broadcast cameras, HD Camera or Monitor System
MTBF	> 200,000 hrs

Ordering Information

Model	Description
LNK-CWDM-SFP1G-2720	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-2920	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3120	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3320	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3520	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3720	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-3920	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4120	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4320	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4520	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4720	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-4920	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5120	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5320	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5520	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5720	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-5920	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 20km, LC, DDMI, MSA
LNK-CWDM-SFP1G-6120	1.5Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 20km, LC, DDMI, MSA
