Product Details:
Payment & Shipping Terms:
|
| Part Number: | LNK-CWDM-SFP3G-XX60 | Form Factor: | Video SFP Transceiver |
|---|---|---|---|
| Data Rate: | 3 Gb/s | Wavelength: | 1270~1610nm |
| Max. Distance: | 60 Km | Operating Temperature: | 0°C To 70°C (32°F To 158°F) |

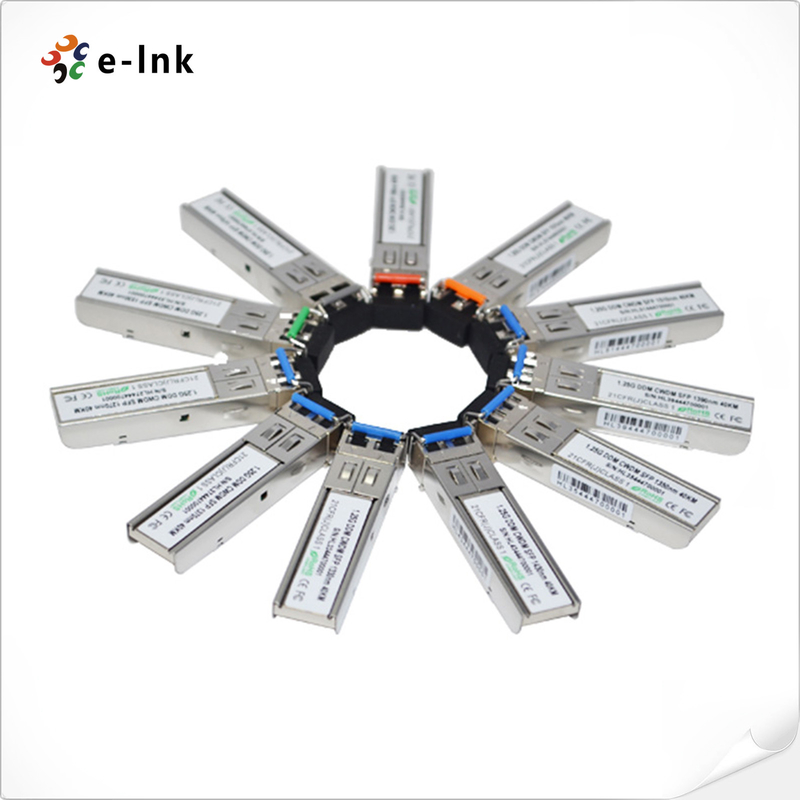

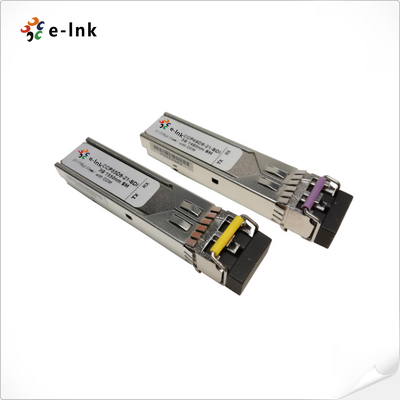

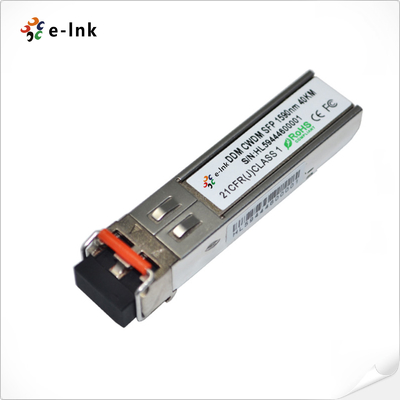

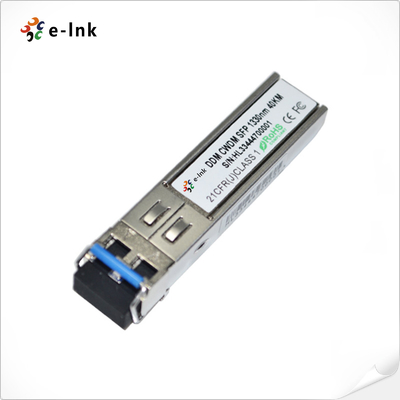

3G-SDI CWDM 1270~1610nm 60km Digital Video SFP Optical Transceiver (MSA)
SDI Video SFP Module Advantages
► SMPTE 297-2006 Compatible Features
► Speed from 50 Mbps to 2.97 Gbps
► Distance up to 60km for 3G-SDI
► Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
► 18 Wavelength CWDM DFB Transmitter
► Hot-plug gable SFP footprint
► SFP MSA compliant
► Digital Diagnostic functions available through the I2C interface
► Single +3.3V power supply
► Low Power Consumption
► Ohs compliant and Lead-Free
SDI Video SFP Module Technical Indexes
| Standards: | INF-8074i SFP (Small Form factor Plug gable) Transceiver |
| SFF-8472 Diagnostic Monitoring Interface for Transceiver | |
| SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI) | |
| SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI) | |
| SMPTE 344M-2000 540 Mbps Serial Digital Interface | |
| SMPTE 424M-2006 3Gbps Signal/Data Serial Interface (3G-SDI) | |
| Wavelength | 1270~1610nm |
| Fiber Type | SMF |
| Max. Distance | 60 km |
| Optical Components | DFB/APD |
| Transmitter Power | -2 ~4 dBm |
| Extinction Ratio | >5 dB |
| Receiver Sensitivity | < -28 dBm |
| Receiver Overload | >-10 dBm |
| Connector | Duplex LC |
| Digital Diagnostic Monitoring (DDM) | Support as default |
| Weight | 0.025Kg |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Application | SMPTE 424M (2.97Gb/s) |
| SMPTE 292M (1.485Gb/s) | |
| SMPTE 259M (270/360Mb/s) | |
| 3G-SDI/HD-SDI/SD-SDI Fiber Converter | |
| High-density digital video routers & switches | |
| Broadcast cameras, HD Camera or Monitor System | |
| MTBF | > 200,000 hrs |
Industrial Ethernet Media Converter Overview
E-link LNK-CWDM-SFP3G-XX60 is high performance, cost-effective 3G-SDI CWDM optical transceiver modules for long reach video transmission application over single mode fiber (SMF). It provides the data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. It provides the maximum transmission distance of 60km over single mode fiber at 3Gbps pathological signals. It is available for all 18 CWDM channels from 1270nm to 1610nm wavelengths, this helps the customer to increase the bandwidth of an existing video optical infrastructure without adding new fiber strands. LNK-CWDM-SFP3G-XX60 is MSA compliant.
This 3G SDI CWDM video SFP module is Class I Laser products per FDA/CDRH and IEC-60825 standards.
Ordering Information
| Model | Description |
| LNK-CWDM-SFP3G-2760 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-2960 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-3160 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-3360 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-3560 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-3760 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-3960 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-4160 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-4360 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-4560 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-4760 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-4960 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-5160 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-5360 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-5560 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-5760 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-5960 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 60km, LC, DDMI, MSA |
| LNK-CWDM-SFP3G-6160 | 3Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 60km, LC, DDMI, MSA |
