E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Compatible: | Compatible With DVB-ASI And AES10 (MADI) | Fiber: | 11.88Gbps SMF 20KM |
|---|---|---|---|
| Optical Transmission Bandwidth: | 270MHz～12GHz | Operating Temperature: | -40℃～85℃ |
| Dimensions (LxWxH): | 80 X 40 X 20 (mm) | Power: | 5-15 VDC |
| Highlight: | 1Ch Forward To Fiber Converter,1Ch Backward To Fiber Converter,12G-SDI To Fiber Converter |
||

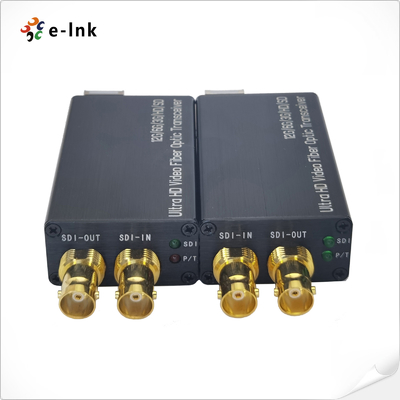

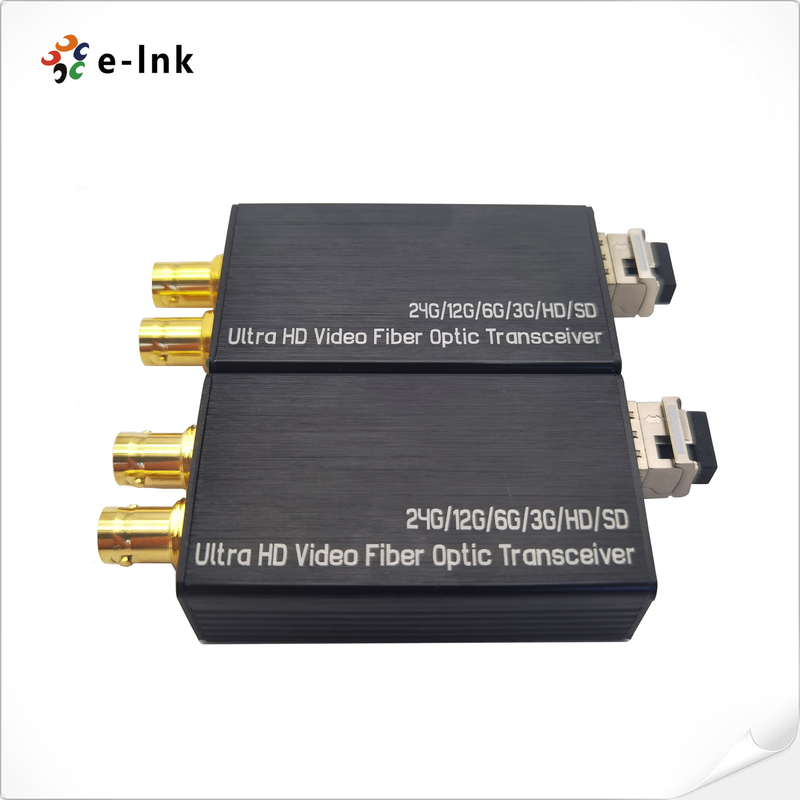

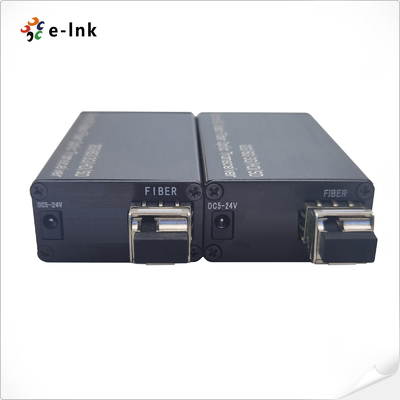

Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
SDI Fiber Extender Advantages
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 M bps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles) , up to 80 km
► Terminal block power input for industrial application
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
SDI Fiber Extender Technical Indexes
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With D VB-AS I and AES10 (MADI) |
| Transmitter | 1 x Forward 12G-SDI on BNC |
| 1 x Backward 12G-SDI on BNC | |
| Receiver | 1 x Forward 12G-SDI on BNC |
| 1 x Backward 12G-SDI on BNC | |
| Fiber | 11.88Gbps SMF 20KM |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Output cable specification | ≤70m@12G SDI Belden 1694A |
| Optical transmission bandwidth | 270MHz～12GHz |
| Power | 5-15 VDC |
| Power Consumption | 2 W (Max.) |
| Dimensions (LxWxH) | 80 x 40 x 20 (mm) |
| Storage Temperature | -40℃～80℃ |
| Operating Temperature | -40℃～85℃ |
Industrial Ethernet Media Converter Overview

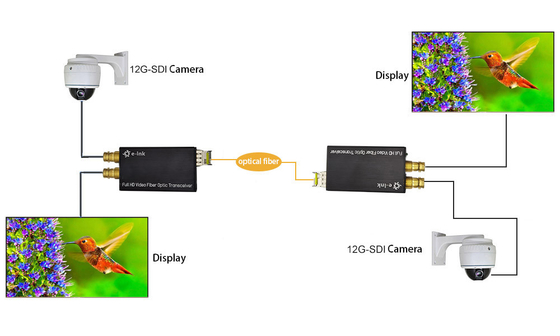

LNK-M12G-1FV1BV Series Mini-type 12G-SDI Fiber Converter supports 1Ch Forward 12G-SDI Video and 1Ch Backward 12G-SDI Video transmitted via fiber optical cable. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P. The 12G-SDI Fiber Converter supports transmission of up to 12 G bps of digital video within television broadcasting facilities and between professional video equipment.
Ordering Information
| Model | Description |
| LNK-M12G-1FV1BV-20 | Mini 12G-SDI to Fiber Converter: 1Ch Forward + 1Ch Backward 12G-SDI Video, Single Mode, Single Fiber, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
