E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Compatible: | Compatible With DVB-ASI And AES10 (MADI) | Input: | 2x 12G-SDI On BNC/1 X 24G-SDI 2*LC Fiber |
|---|---|---|---|
| Supported Resolution: | HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P | Operating Temperature: | -40℃～85℃ |
| Dimensions (LxWxH): | 80 X 40 X 20 (mm) | Power: | 5-15 VDC |
| Highlight: | Mini 24G-SDI To Fiber Converter,2*LC Fiber To Fiber Converter,24G-SDI To Fiber Converter |
||

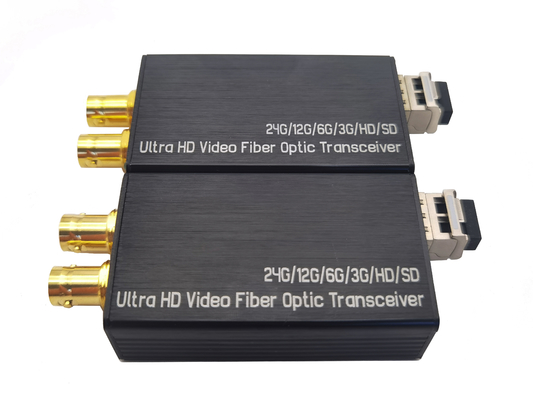

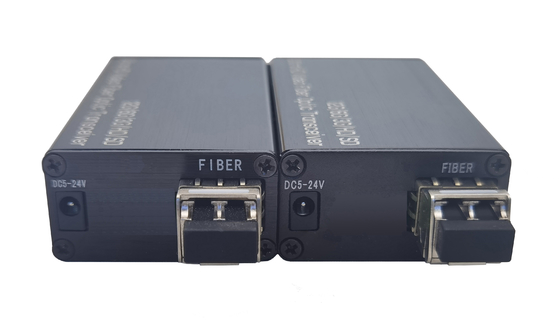

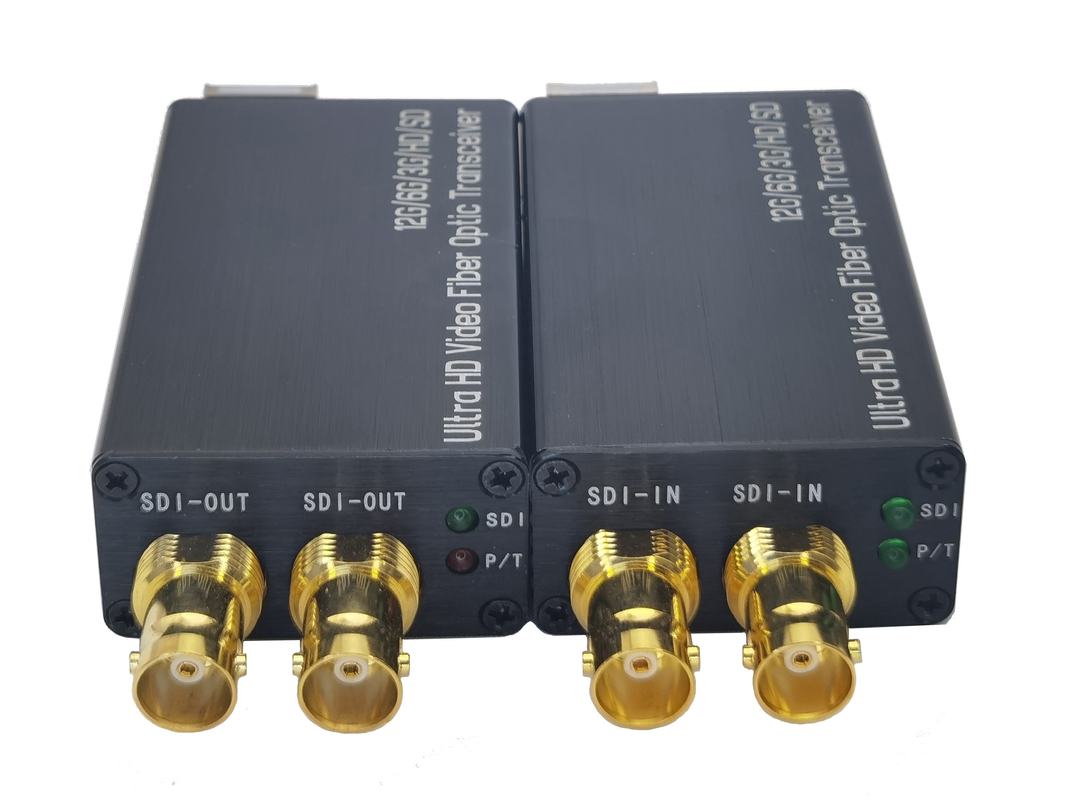

Mini 24G-SDI to Fiber Converter with 24G-SDI 2*LC fiber
SDI Fiber Extender Advantages
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 24G/12G/6G/3G-SDI camera systems
► Terminal block power input for industrial application
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
SDI Fiber Extender Technical Indexes
| Formats | Supports UHD-2 or 24G UH D-SDI, SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 2 x 12G-SDI on BNC |
| Fiber Cable | 1 x 24G-SDI 2*LC fiber |
| Output | 2x 12G-SDI on BNC |
| Supported Resolution | HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P |
| Resolution range | 2160p/4k@120,8k@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Output cable specification | ≤70m@12G SDI Belden 1694A |
| Optical transmission bandwidth | 270MHz～12GHz |
| Power | 5-15 VDC |
| Power Consumption | 2 W (Max.) |
| Dimensions (LxWxH) | 80 x 40 x 20 (mm) |
| Storage Temperature | -40℃～80℃ |
| Operating Temperature | -40℃～85℃ |
Industrial Ethernet Media Converter Overview
LNK-M24G-1F2 Series Mini-type 24G-SDI Fiber Converter supports 2-channel 12G Video (audio embedded) transmitted via fiber optical cable. E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120, 8k@60, 1080P,1080I, 720P.
Ordering Information
| Model | Description |
| LNK-M24G-1F2-20 | Mini-type 24G-SDI to Fiber Converter, 2Ch 12G-SDI Video, 1*24G SFP(2*LC) Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
Contact Person: Sophia Zhang
Tel: 166 7542 9687
Fax: 86-755-8312-8674
