12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

Name: 12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485
Brand: E-link
SKU: LNK-12GSDI-1V2R1GE
Rating: 4.9 (153 reviews)

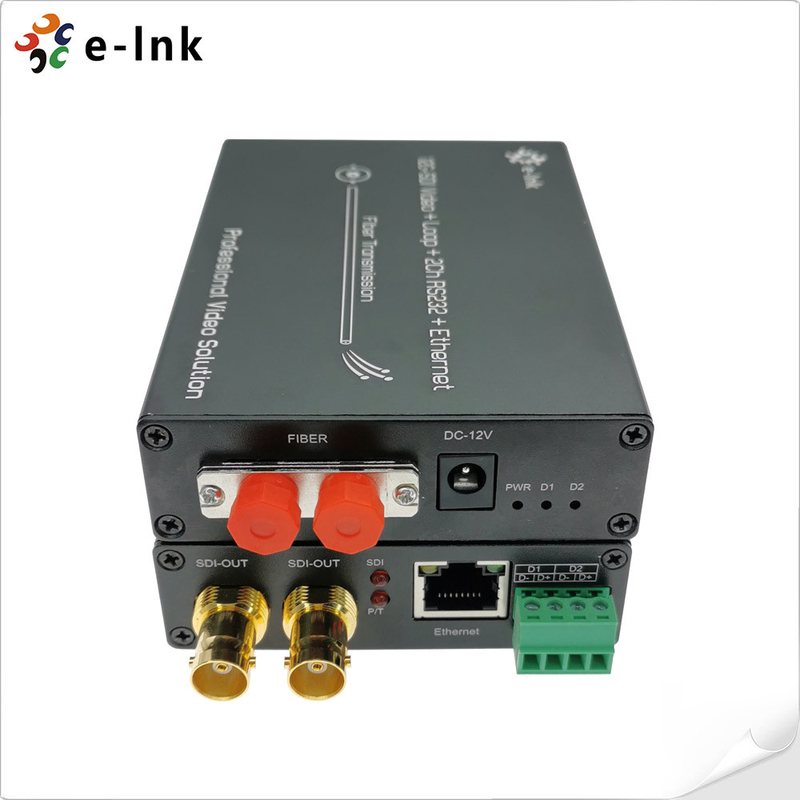

Large Image : 12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-12GSDI-1V2R1GE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Compatible:	Compatible With DVB-ASI And AES10 (MADI)	Input:	1 X 12G-SDI On BNC
Supported Resolution:	HDTV 4K*2K, 1080P, 1080I, 720P	Operating Temperature:	-10℃～70℃
Dimensions (LxWxH):	117 X 80 X 24 (mm)	Power:	12 VDC
Highlight:	2Ch Backward RS485 Fiber Converter , Gigabit Ethernet Fiber Converter , 12G-SDI to Fiber Converter

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

SDI Fiber Extender Advantages

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability up to 80 km

► Support 2Ch Backwards RS485

► Supports 1Ch 10/100/1000M Ethernet

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

SDI Fiber Extender Technical Indexes

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible With DVB-ASI and AES10 (MADI)

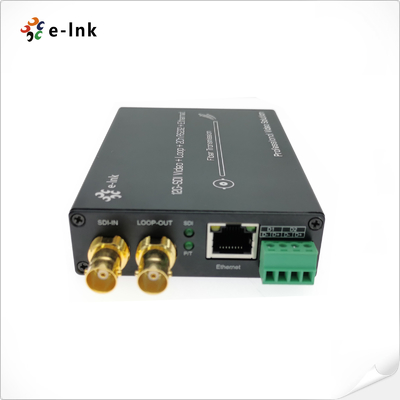

Input	1 x 12G-SDI on BNC
Output	2 x FC optical fiber
Output	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤60m@12G SDI Belden 1694A
Ethernet	10/100/1000Mbps
Data type	2Ch Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Power	12 VDC
Power Consumption	6 W (Max.)

Industrial Ethernet Media Converter Overview

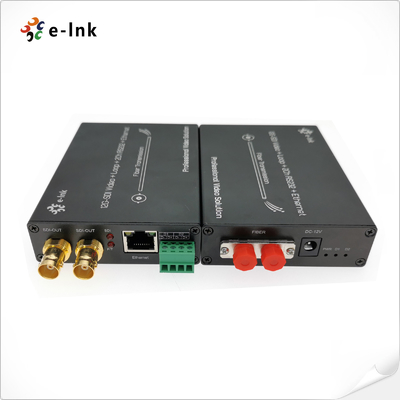

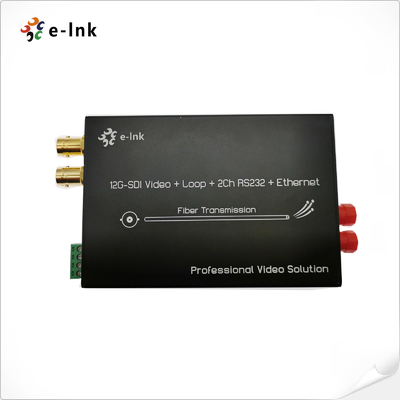

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.
