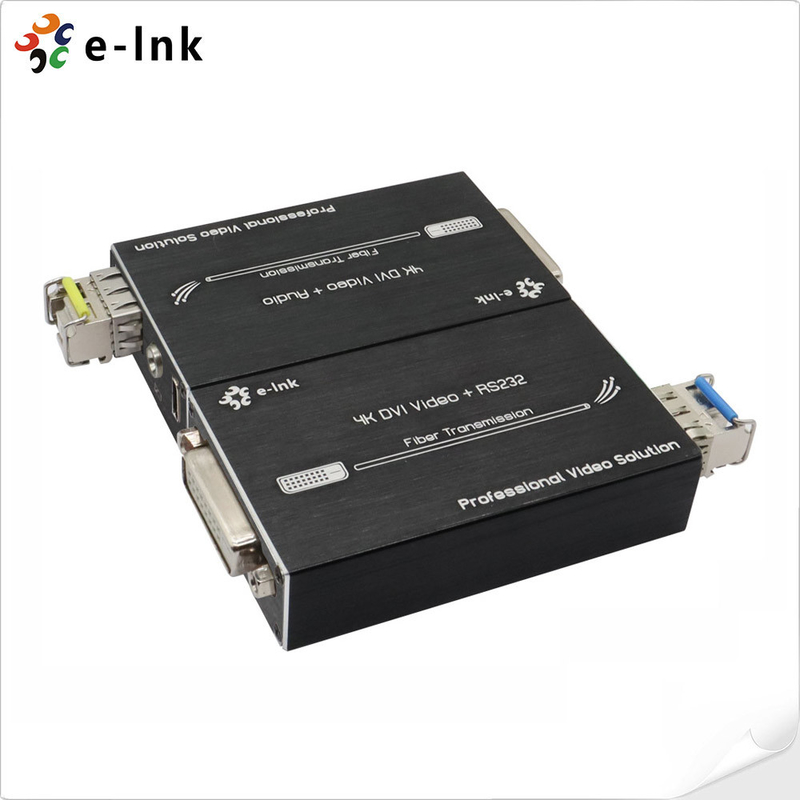

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Large Image : Mini 4K DVI Fiber Optic Extender with Stereo Audio

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-MDA4K

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Type Of Extender:	Fiber Transmitter For DVI Signal Over Optical Fiber Cable	Input Signals:	DVI
Connector:	DVI-D	Operating Temperature:	-10 ~ + 50°C
Dimensions (WxDxH):	2.87 X 1.73 X 0.69in (73x44x17mm)	Power Dissipation:	<5W
Highlight:	4K DVI Fiber Optic Extender , Stereo Audio DVI Fiber Optic Extender , Mini DVI Fiber Optic Extender

Mini 4K DVI Fiber Optic Extender with Stereo Audio

DVI Fiber Extender Advantages

► DVI 1.0 and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support 3.5mm External Stereo Audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Temperature: -10~50°C
DVI Fiber Extender Technical Indexes

Type of Extender	Fiber Transmitter for DVI signal over Optical Fiber Cable
Input Signals	DVI
Connector	DVI-D
Signal Support	DVI 1.0 format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 ~ + 50°C
Storage Temperature	-20 ~ + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours

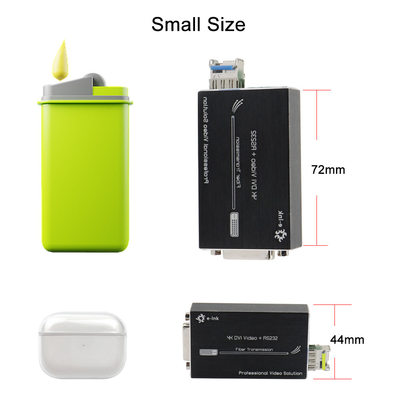

Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC (USB-C)
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Industrial Ethernet Media Converter Overview

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

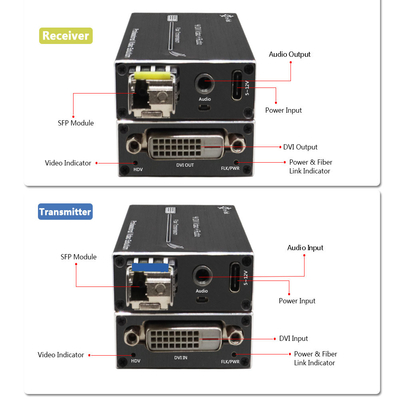

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Ordering Information

Model	Description
Model	Description

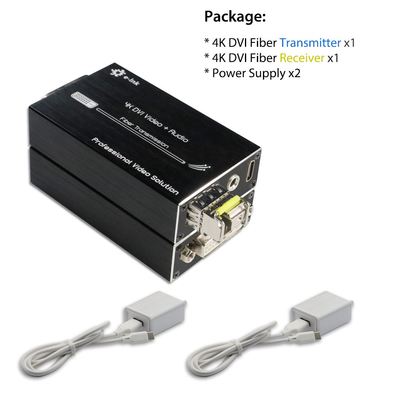

LNK-MDA4K-MM	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S20	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S40	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S80	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
