Mini-type DVI Fiber Optic Extender with external stereo

Name: Mini-type DVI Fiber Optic Extender with external stereo
Brand: E-link
SKU: LNK-MDF100
Rating: 4.6 (196 reviews)

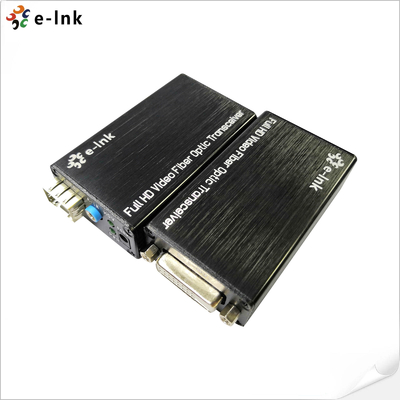

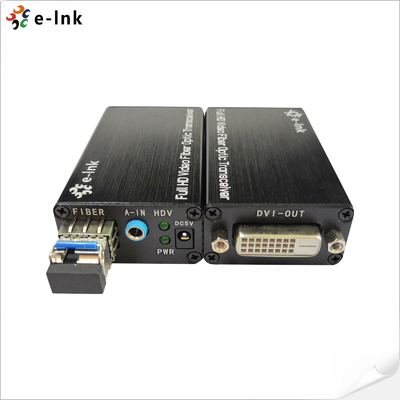

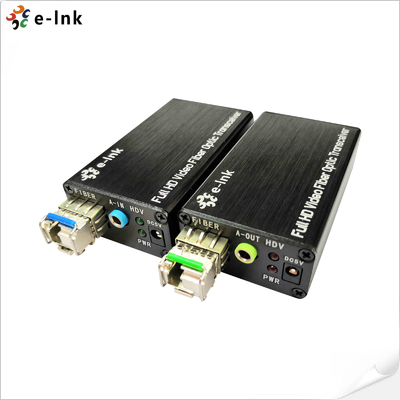

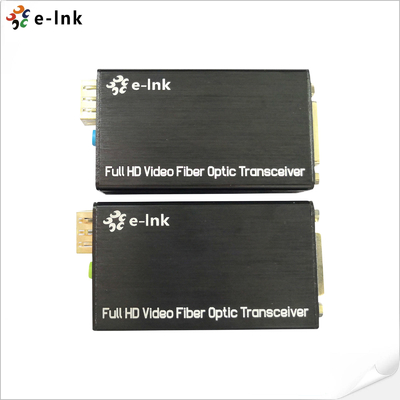

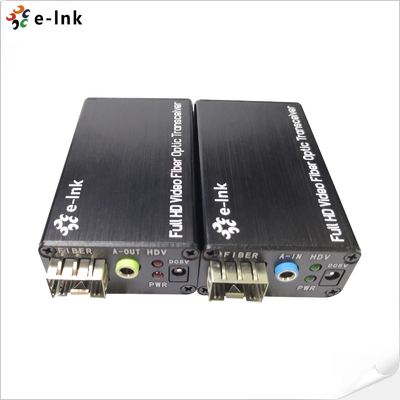

Large Image : Mini-type DVI Fiber Optic Extender with external stereo

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-MDF100

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Video Standards:	DVI1.0 3D; HDCP1.4	Video Maximum Pixel Clock:	165MHz
Optical Fiber Interface:	SFP Model – LC Connector	Operating Temperature:	-20℃ ~ +70℃
Dimensions (WxDxH):	80 X 40 X 20 (mm)	Power Dissipation:	MAX 1.2W
Highlight:	Mini-type DVI Fiber Optic Extender , Stereo DVI Fiber Optic Extender , External Stereo DVI Fiber Optic Extender

Mini-type DVI Fiber Optic Extender with external stereo

DVI Fiber Extender Advantages

► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;

► Compliant with DVI 1.0 specifications ;

► Support 1920*1200 1080P@60Hz

► Special support 1600*1200 @60Hz

► Supporting pixel rates from 25MHz to 165MHz

► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p

► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;
DVI Fiber Extender Technical Indexes

Parameter		Description
Video	Standards	DVI1.0 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Compliant	1080P@50/59.95/60Hz,( Max 19201200@60Hz) DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA Special support 16001200 @60HZ
	Connector	Female DVI-D
	Impedance	100Ω
	HDMI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode; Multi-mode
	Wavelength	850nm/1310nm
	Interface bandwidth	3Gbps
	Transmission distance	Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 1.2W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	80 x 40 x 20 (mm)

Industrial Ethernet Media Converter Overview

The LNK-MDF100 Series Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports DVI 1.0 specifications,high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Mini-type DVI Fiber Optic Extender with external stereo 0
Ordering Information

Model	Description
LNK-MDF100	DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-MDF100S	DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
