Product Details:
Payment & Shipping Terms:
|
| Compliance: | DVI 1.0; HDMI V1.4 | Bandwith: | 10.2 Gbps |
|---|---|---|---|
| Optical: | 1x SFP+ Port | Operating Temperature: | 32° To +112° F. (0° To +50° C) |
| Dimensions (WxDxH): | 69mm X 42 Mm X 18.2 Mm | Net Weight: | LNK-D4K-SM-S: 100 G/ LNK-D4K-SM-R: 100 G |
| Highlight: | Auto EDID DVI Fiber Transceiver,MM 300M DVI Fiber Transceiver,Mini 4KX2K DVI Fiber Transceiver |
||

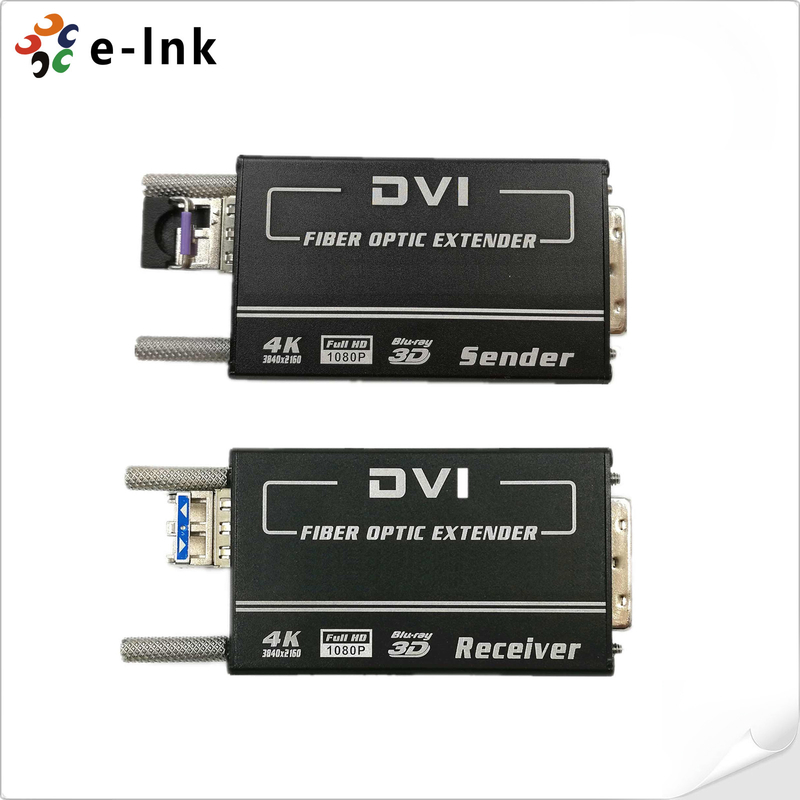

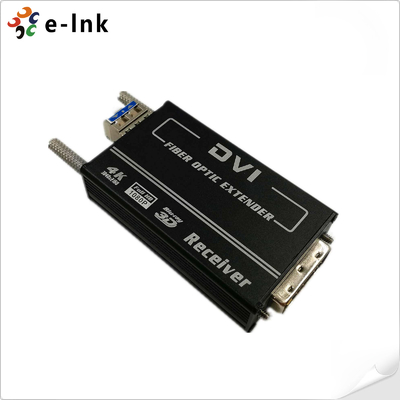

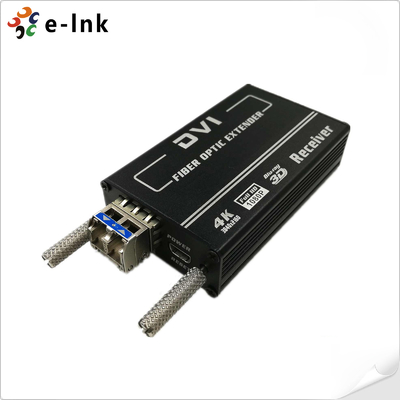

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID
DVI Fiber Extender Advantages
► Support DVI 1.0 and HDMI v1.4
► Support EDID pass-through.
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Plug and Play ,Built-in EQ(Receiver)
► Support 4K/30P@ Single-Link
► Two fiber,2-ways
► Bandwidth up to 10.2 Gbps
► Up to 300m distance by Multimode Fiber
► Support the HDCP 1.4
► Low RFI / EMI
DVI Fiber Extender Technical Indexes
| Parameter | Specifications |
| Compliance | DVI1.0,HDMI v1.4 |
| Bandwith | 10.2 Gbps |
| Supported Resolutions | 3840x2160/30P,3840*2160/60P(YUV 420), 4096*2160/60P(YUV 420) |
| Digital Audio Support | 7.1 channel LPCM, 192 kHz, 24-bit audio capability |
| Connections | |
| DVI Input / DVI Output | 1x DVI-D 18+1 Male connector |
| Optical | 1x SFP+ port |
| Cable | |
| Fiber Cable | 50/125μ OM3 Multi-Mode Fiber:≤300m |
| DDC Support | |
| EDID Support | Support EDID pass-through |
| HDCP Pass-through Support | Yes, Support the HDCP 1.4 pass-through |
| Mechanical | |
| Construction | High-impact Alufer enclosure |
| Dimensions (L x W x H) | 69mm x 42 mm x 18.2 mm |
| Net Weight | LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g |
| Power Requirements | |
| External AC Power Adapter | Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A |
| Power Consumption | LNK-D4K-SM-S: 3 watts LNK-D4K-SM-R: 3.5 watts |
| Warranty | |
| Limited Warranty | 1 year |
Industrial Ethernet Media Converter Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

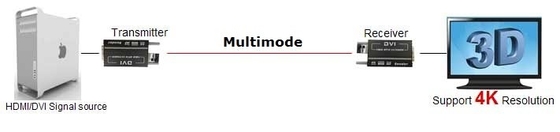

The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 300m.
Ordering Information
| Model | Description |
| LNK-D4K-MM-S | Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A |
| LNK-D4K-MM-R | Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A |
