1080P DVI-D Fiber Optic Extender

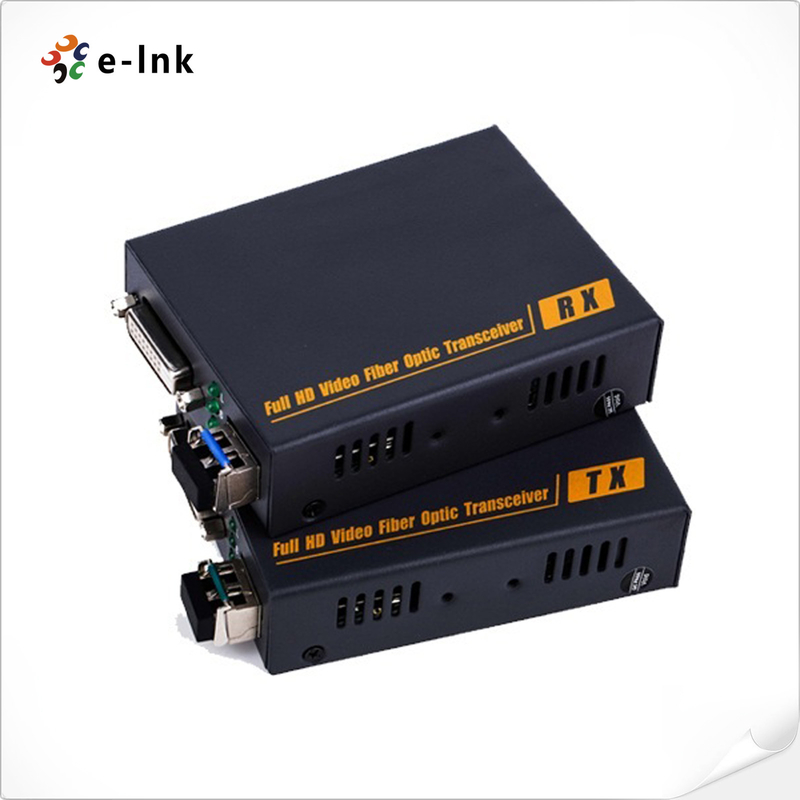

Large Image : 1080P DVI-D Fiber Optic Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-DVI-106

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Video Standards:	DVI 1.0; HDCP 1.2	Maximum Pixel Clock:	165MHz
Optical Fiber Interface:	SFP Model – LC Connector	Operating Temperature:	-5℃ ~ +70℃
Dimensions (WxDxH):	94.57326mm	Power Dissipation:	MAX 5W
Highlight:	1080P DVI-D Fiber Optic Extender , DVI-D Fiber Optic Extender

1080P DVI-D Fiber Optic Extender

DVI Fiber Extender Advantages

► Transmits DVI video signals up to 2km-10km over one fiber optic cable;

► Support video resolution up to 1920*1200@60Hz;

► Support copy EDID, can match many kind display device;

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;
DVI Fiber Extender Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57326mm
	The warranty	1 year free warranty

Industrial Ethernet Media Converter Overview
The LNK-DVI-106 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Ordering Information

Model	Description
LNK-DVI-106	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-DVI-S106-10	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs
