E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| MAC Address Table: | 2K | Power: | 12V DC |
|---|---|---|---|
| Power Consumption: | 0.75W ~ 3W | Operation Temperature: | -10℃ To 55℃ |
| Size: | 94 X 70 X 26mm | Weight: | 0.25KG |

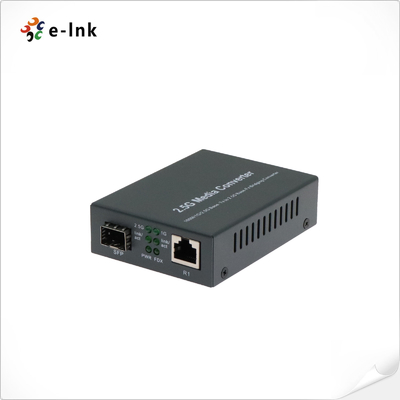

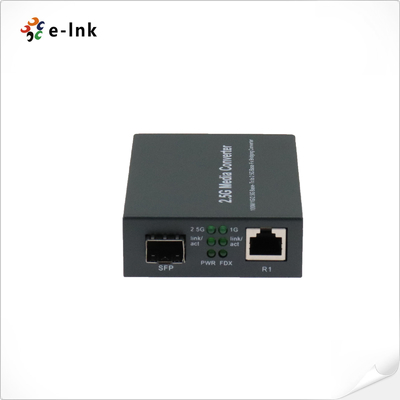

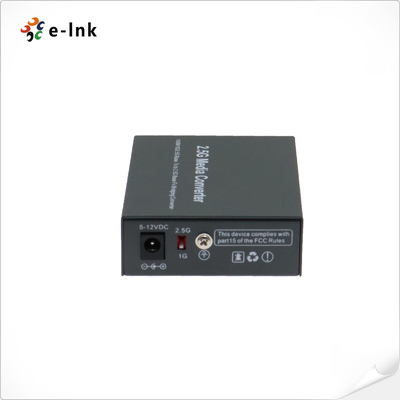

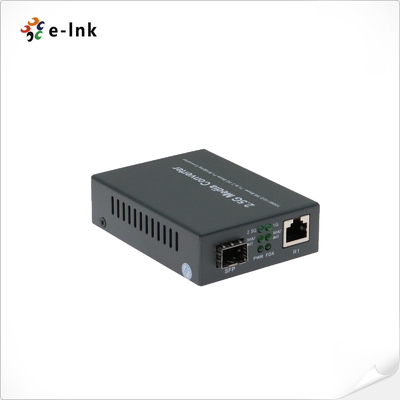

100M/1G/2.5GBase-T to 2.5G Base-SX/LX Fiber Media Converter
Commercial Fiber Media Converter Advantages
►Support the conversion between 100M/1G/2.5GBase-T and 2.5G Base-SX/LX
►1 full-duplex 2.5Gbps optical port and 1 100M/1G/2.5G adaptive Ethernet port
► 100M/1G/2.5G rate adaptive, MDI/MDI-X adaptive, full/half-duplex adaptive
►Fiber optical link and Ethernet link have complete connection/activity status indicator LED lights
►Fiber Optical port supports single mode/multimode, single fiber and double fiber
►Support QoS to ensure data packet transmission
►Support broadcast storm suppression
► Support up to 4KV port lightning protection
► Support low delay transmission, and also have isolation protection function
Commercial Ethernet Switch Technical Indexes
| Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Ethernet Port |
Connector: RJ45 Data rate: 100M/1G/2.5G Cable: UTP-5E or higher Distance: 100 meter |
| Fiber Port |
Connector: SFP Data rate: 2.5G Wavelength: 850nm/1310nm/1490nm/1550nm Fiber type: Single Mode 9/125μm, Multi Mode 50/125μm,62.5/125μm Distance: 550m ~ 100km |
| Specification |
Forwarding mode: store and forward MAC address table: 2K Frame memory: 1Mbit Network latency: ≤20μs |
| Material | Metal |
Commercial Ethernet Switch Overview
The E-link 2.5G fiber media converter is a device capable of converting Ethernet signals to fiber optic signals and vice versa.Users can choose different types of SFP modules according to their needs, which can realize seamless connection between fiber optical signals and Ethernet signals in 100/1000M/2.5G Ethernet. It not only increases the range of transmission but also offers numerous benefits including isolation protection, excellent data confidentiality, stable operation, and ease of maintenance.
Ordering Information
| Model | Description |
| LNK-2.5G-MC | 100M/1G/2.5GBase-T to 2.5G Base-SX/LX Fiber Media Converter |
